Exploded View: Notes

WARNING: This page is about a different variant/trim than selected.

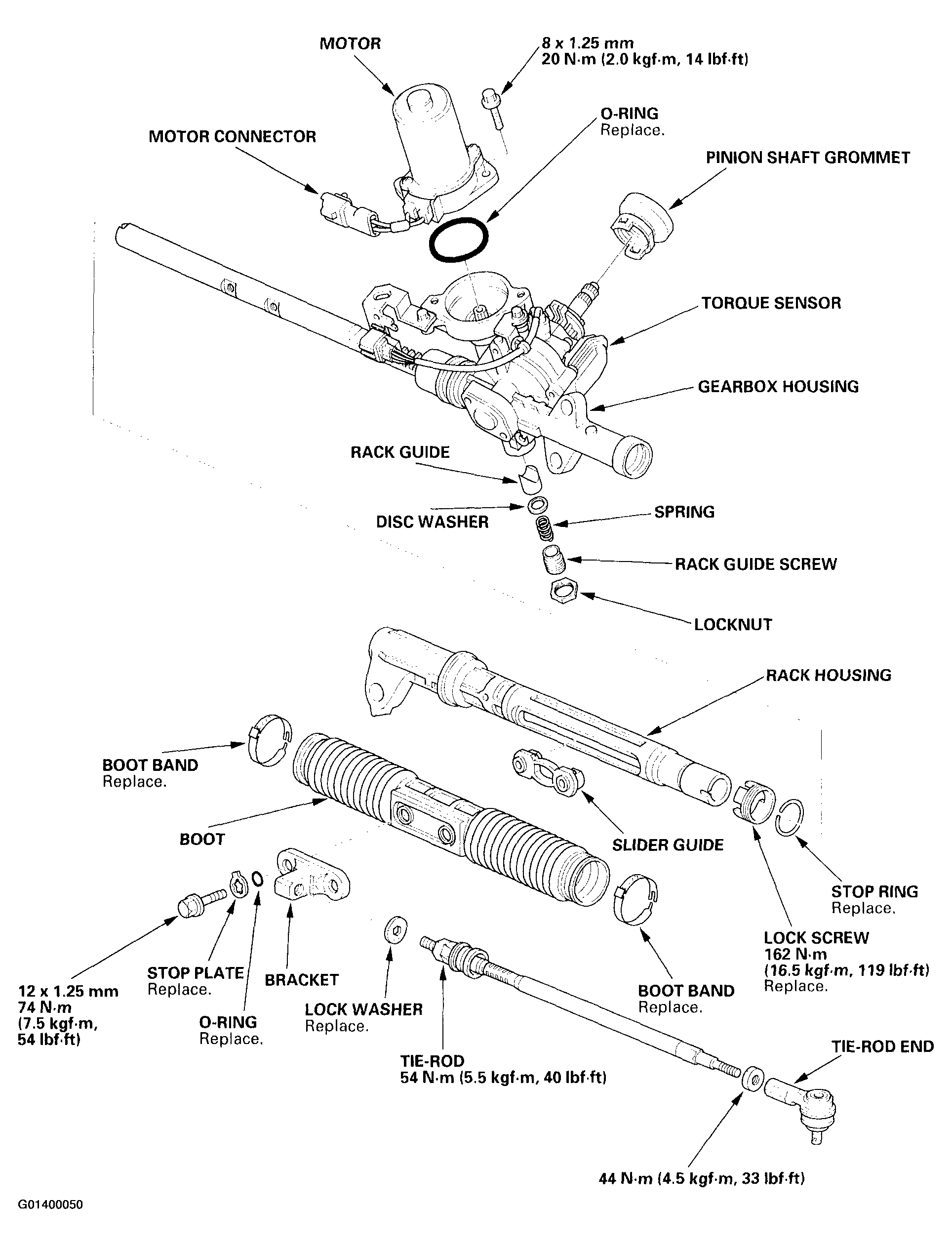

Fig 1: Exploded View Of Steering Gearbox

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

NOTE:

Refer to the EXPLODED VIEW as needed during this procedure.
Do not allow dust, dirt, or other foreign materials to enter into the steering gearbox.
