EPS Control Unit Removal/Installation
WARNING: This page is about a different variant/trim than selected.
- Remove the passenger's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALL ).

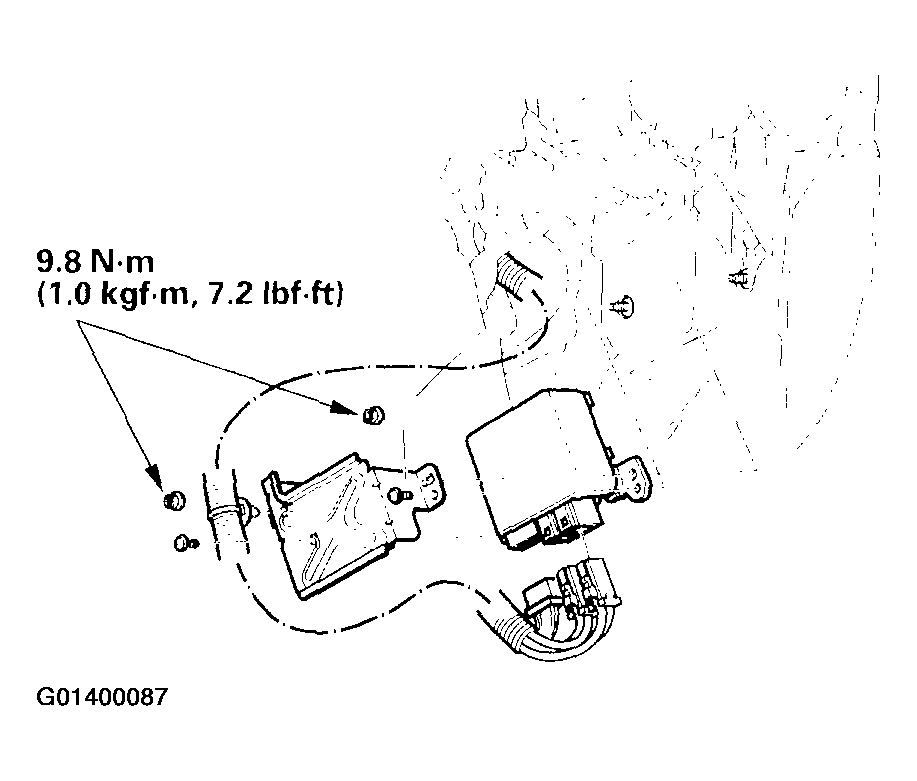

- Turn up the floor carpet, and remove the EPS control unit.
- Disconnect the EPS control unit connectors.
- Install the EPS control unit in the reverse order of removal.
- After installation, start the engine, and let it idle. Turn the steering wheel from lock-to-lock several times. Check that the EPS indicator does not come on.
