Radiator Cap Test

WARNING: This page is about a different variant/trim than selected.
  1. Remove the radiator cap (A), wet its seal with engine coolant, then install it on the pressure tester (B) (commercially available).

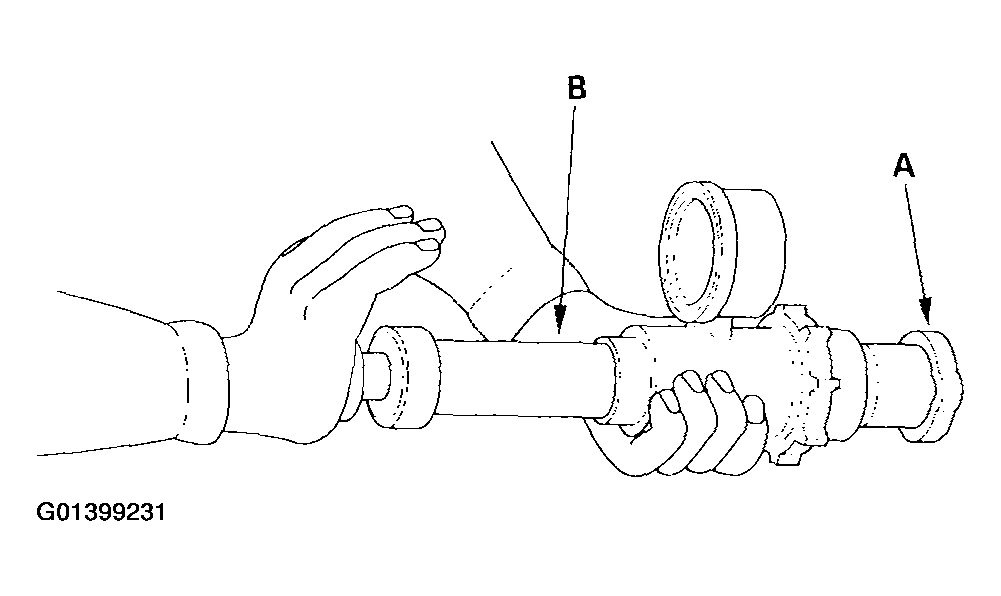

    Fig 1: Testing Radiator Cap
    G01399231Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Apply a pressure of 93-123 kPa (0.95-1.25 kgf/cm2 , 14-18 psi).
  3. Check for a drop in pressure.
  4. If the pressure drops, replace the cap.
