Wiper/Washer Switch Test/Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the driver's dashboard lower cover and under cover (see INTERIOR TRIM - HATCHBACK ).
  2. Remove the steering column covers (see step 4 of STEERING COLUMN REMOVAL AND INSTALLATION ).
  3. Disconnect the 14P connector (A) from the wiper/washer switch (B).

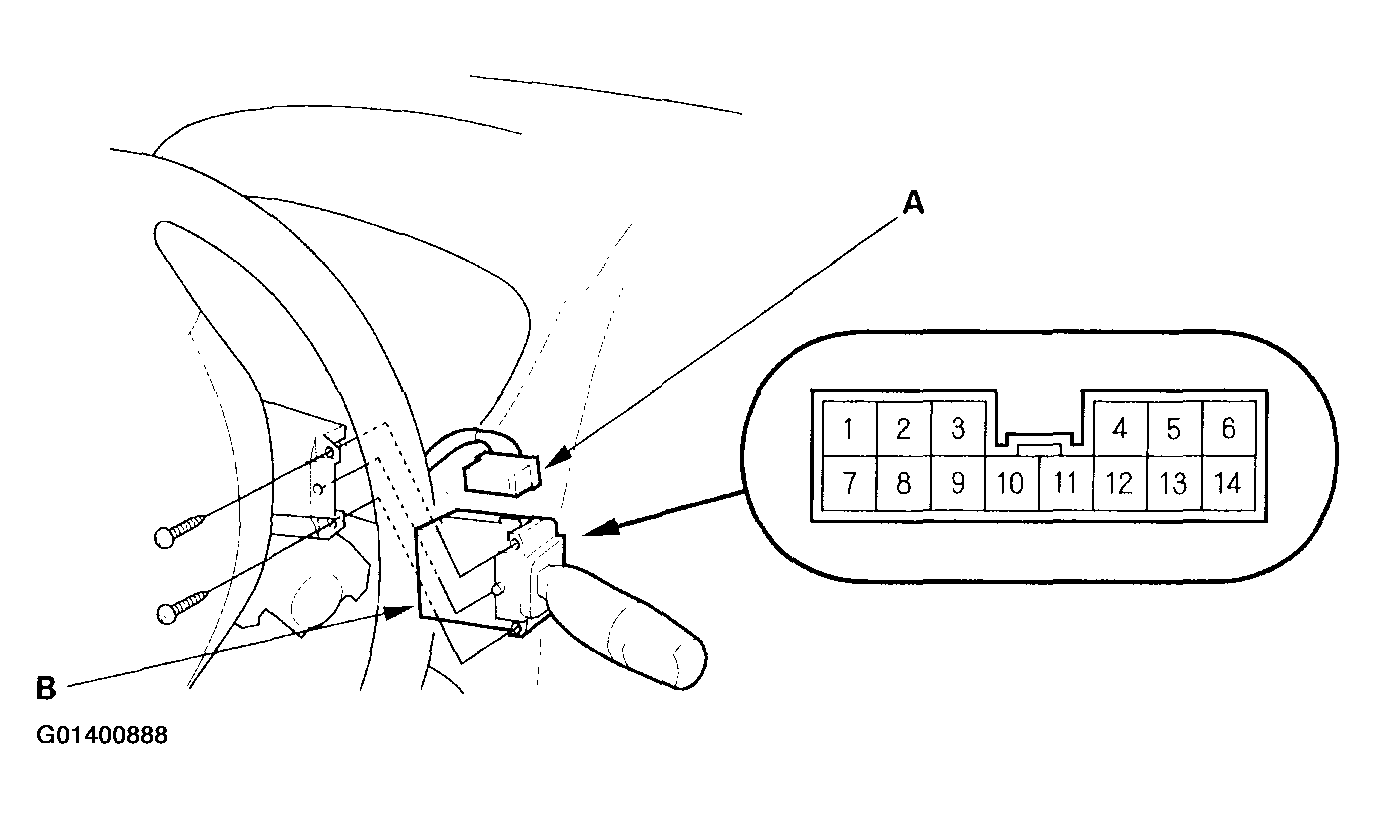

    Fig 1: Disconnecting The 14P Connector From The Wiper/Washer Switch
    G01400888Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the two screws, then pull out the wiper/washer switch.
  5. Inspect the connector terminals to be sure they are all making good contact.
    1. If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    2. If the terminals look OK, check for continuity between the terminals in each switch position according to the table. See Fig 2 .
      • If the continuity is not as specified, replace the switch.

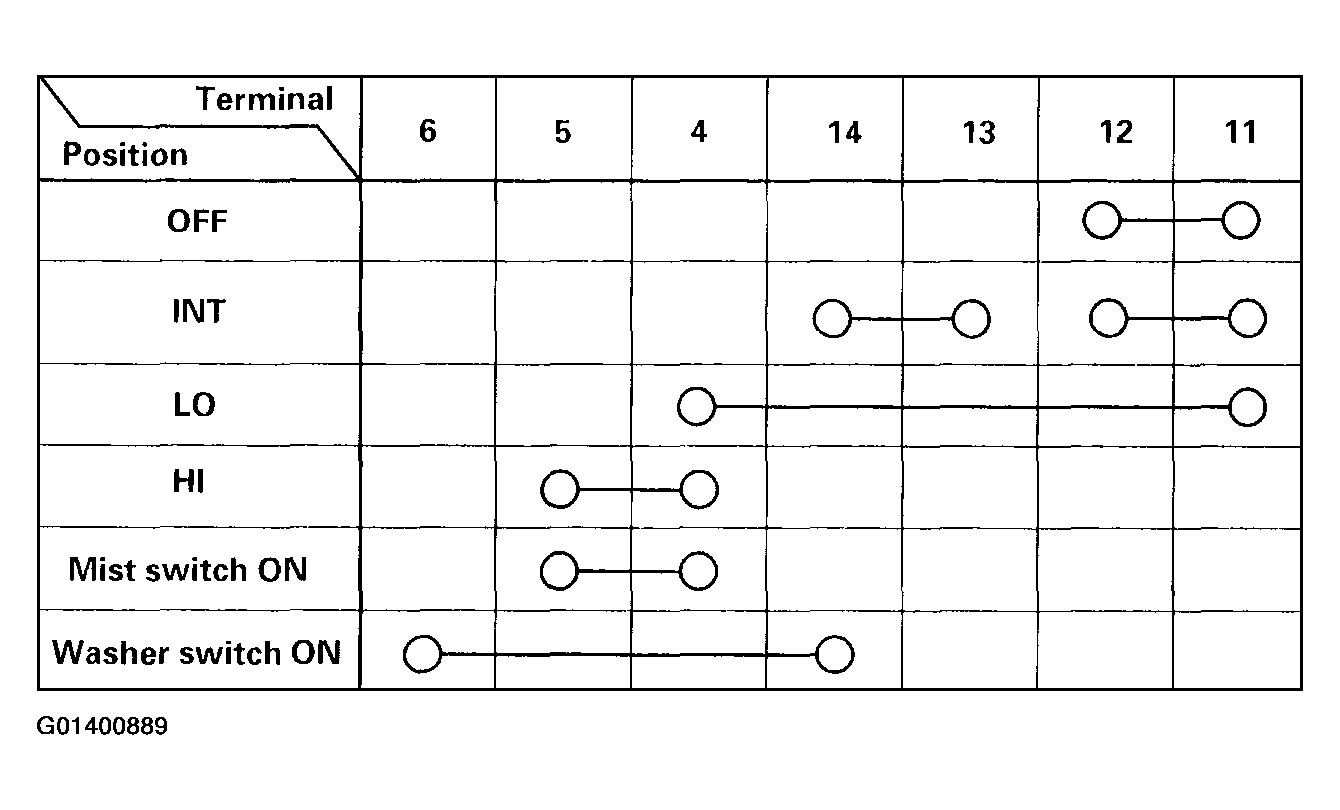

    Fig 2: Wiper/Washer Switch Test Table
    G01400889Courtesy of AMERICAN HONDA MOTOR CO., INC.
