Washer Fluid Level Switch Test/Replacement: Canada

WARNING: This page is about a different variant/trim than selected.

Partially remove the right inner fender.
Disconnect the 2P connector (A) from the washer level switch.

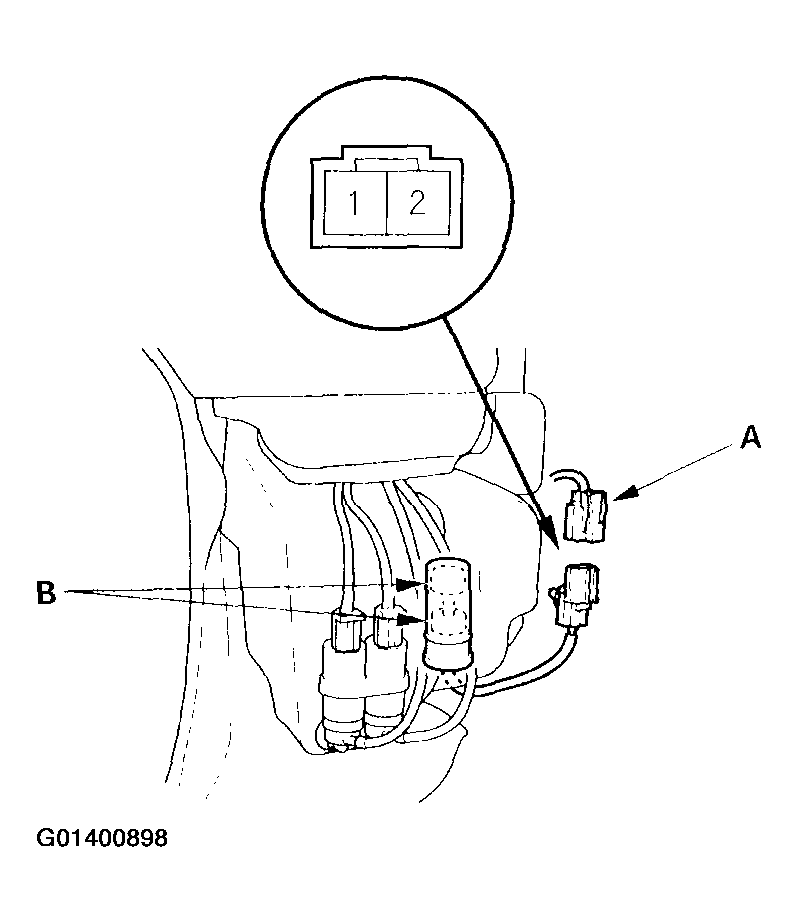

Fig 1: Disconnecting 2P Connector From Washer Level Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the washer fluid level switch from the reservoir.
NOTE: Fluid may flow out the opening.
Check for continuity between the terminals in each float (B) position according to the table. See Fig 2 .

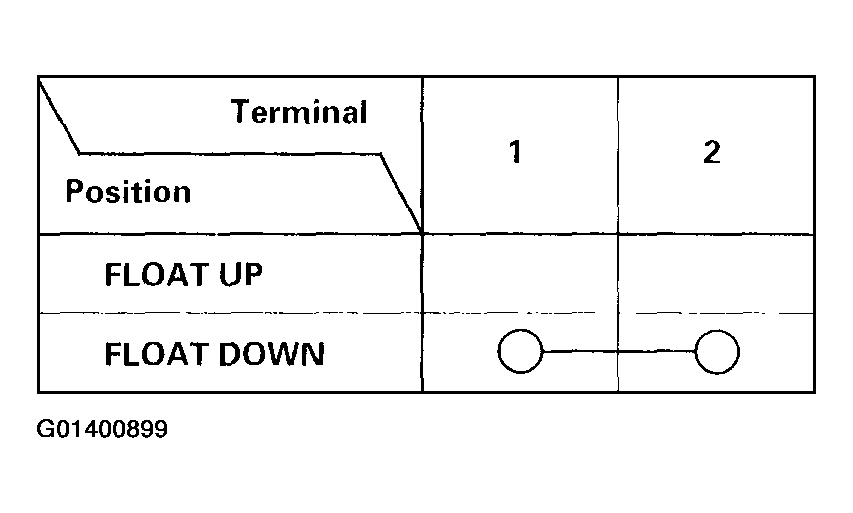

Fig 2: Washer Fluid Level Switch Test Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
