Rear Window Wiper Intermittent Control Unit Input Test

WARNING: This page is about a different variant/trim than selected.
  1. Remove the right rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ).
  2. Disconnect the 20P connector (A) from the rear window wiper intermittent control unit (B).

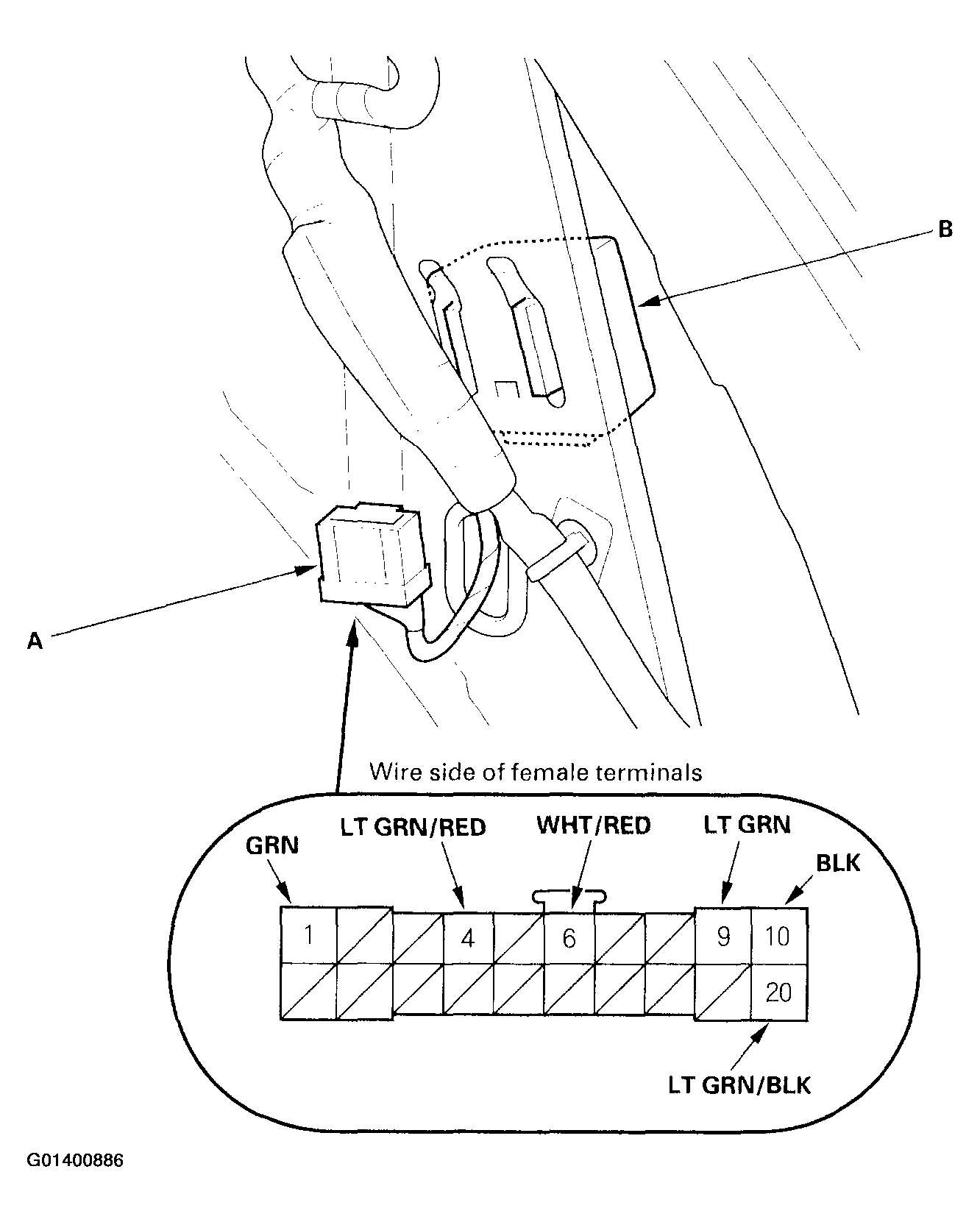

    Fig 1: Disconnecting The 20P Connector From The Rear Window Wiper Intermittent Control Unit
    G01400886Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Inspect the connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, go to step 4.
  4. With the connector still disconnected, make these input tests at the connectors. See Fig 2 .
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, the control unit must be faulty. Replace it.

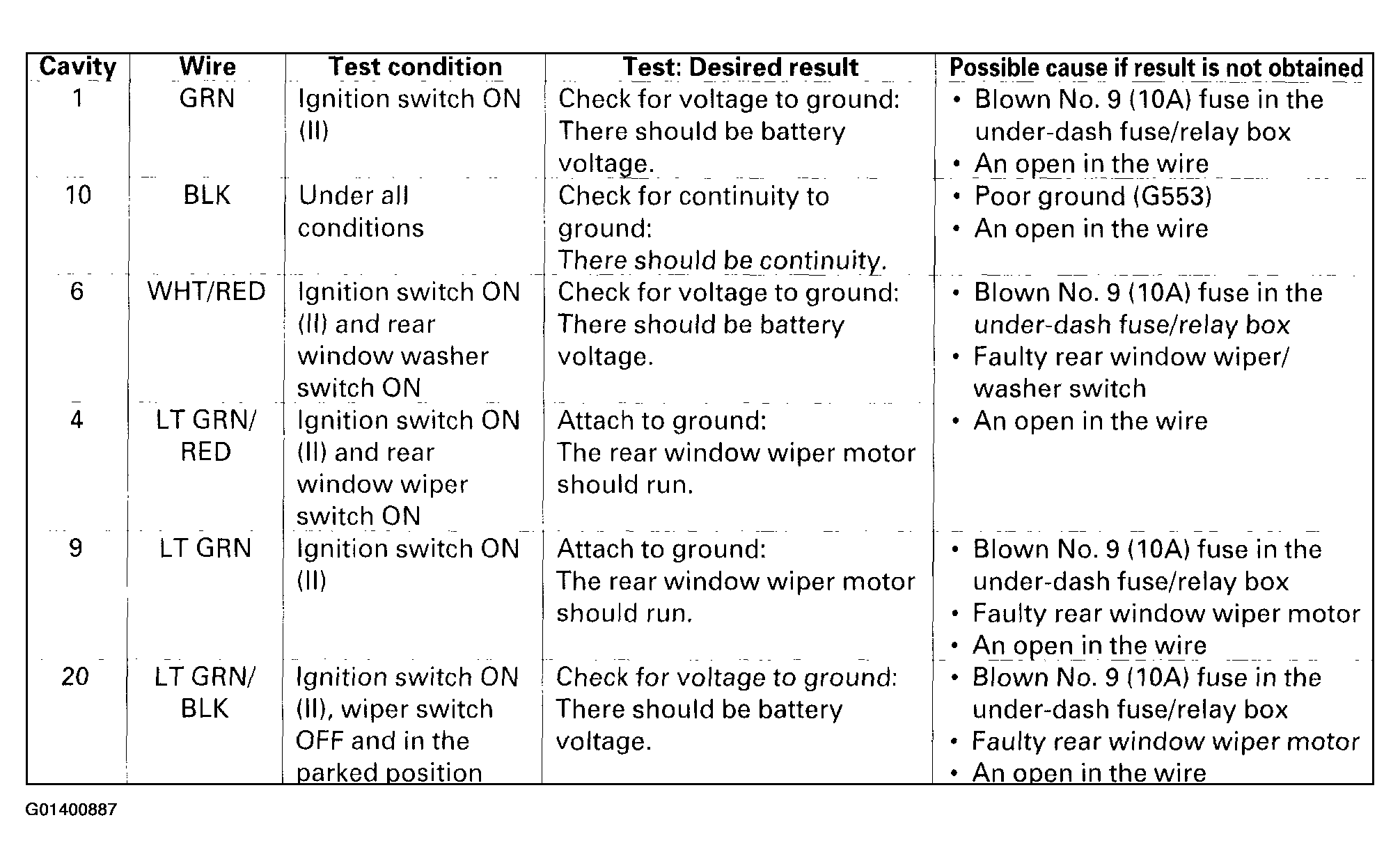

    Fig 2: Rear Window Wiper Intermittent Control Unit Input Tests
    G01400887Courtesy of AMERICAN HONDA MOTOR CO., INC.
