Component Location Index

WARNING: This page is about a different variant/trim than selected.

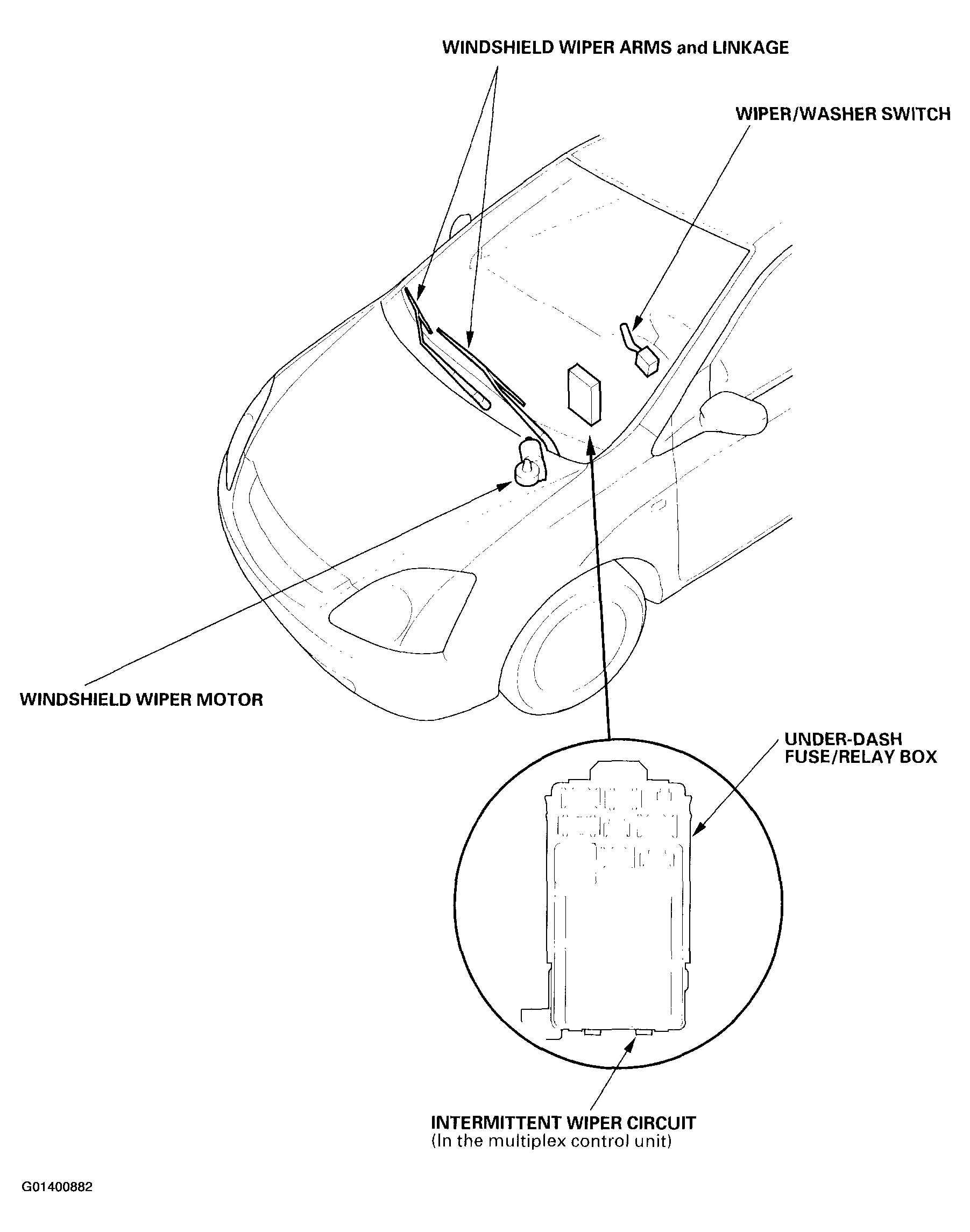

Fig 1: Locating Wiper/Washer System Components (1 Of 2)
G01400882Courtesy of AMERICAN HONDA MOTOR CO., INC.

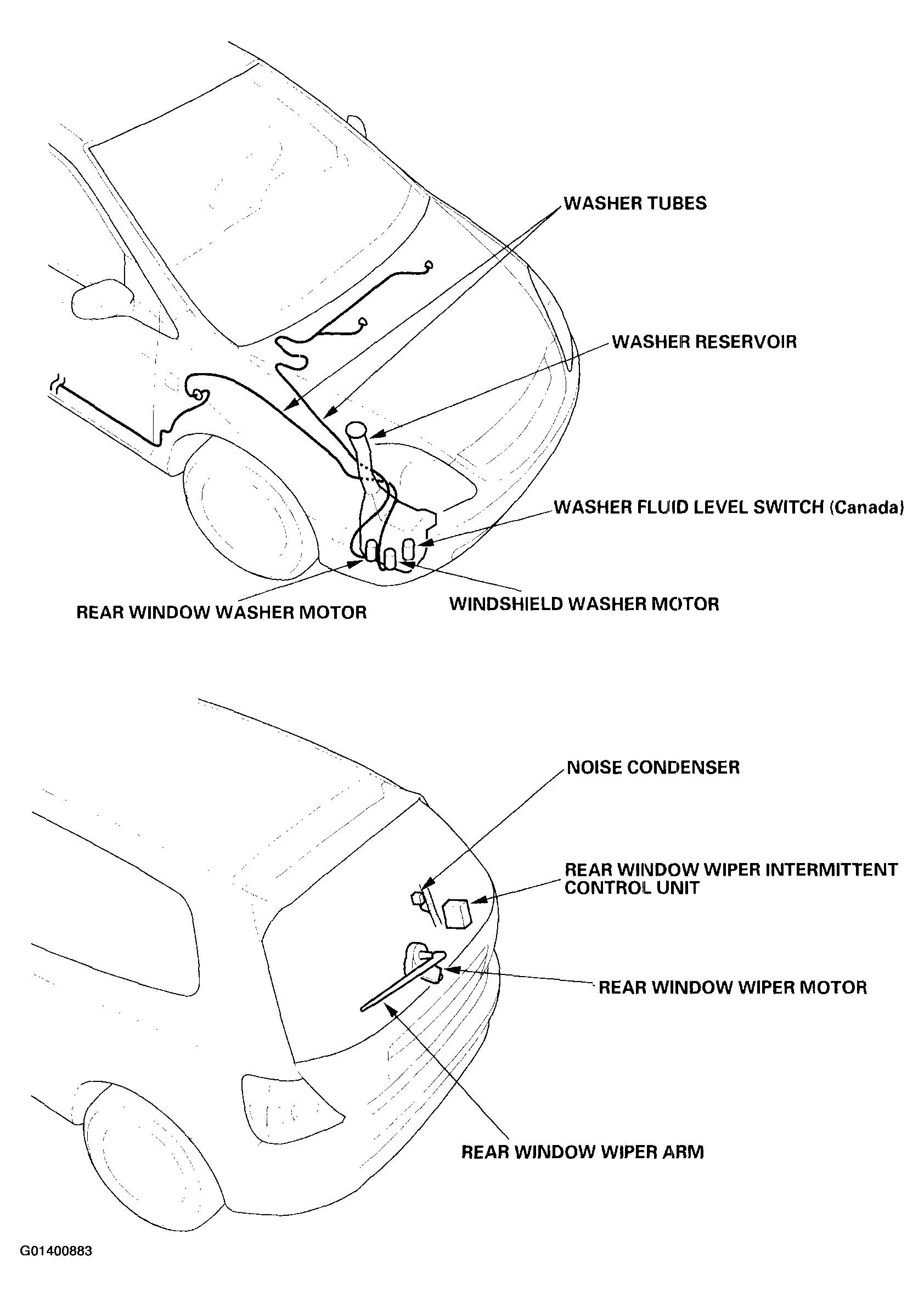

Fig 2: Locating Wiper/Washer System Components (2 Of 2)
G01400883Courtesy of AMERICAN HONDA MOTOR CO., INC.
