Section 10 (Mirrors System (Hatchback))
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

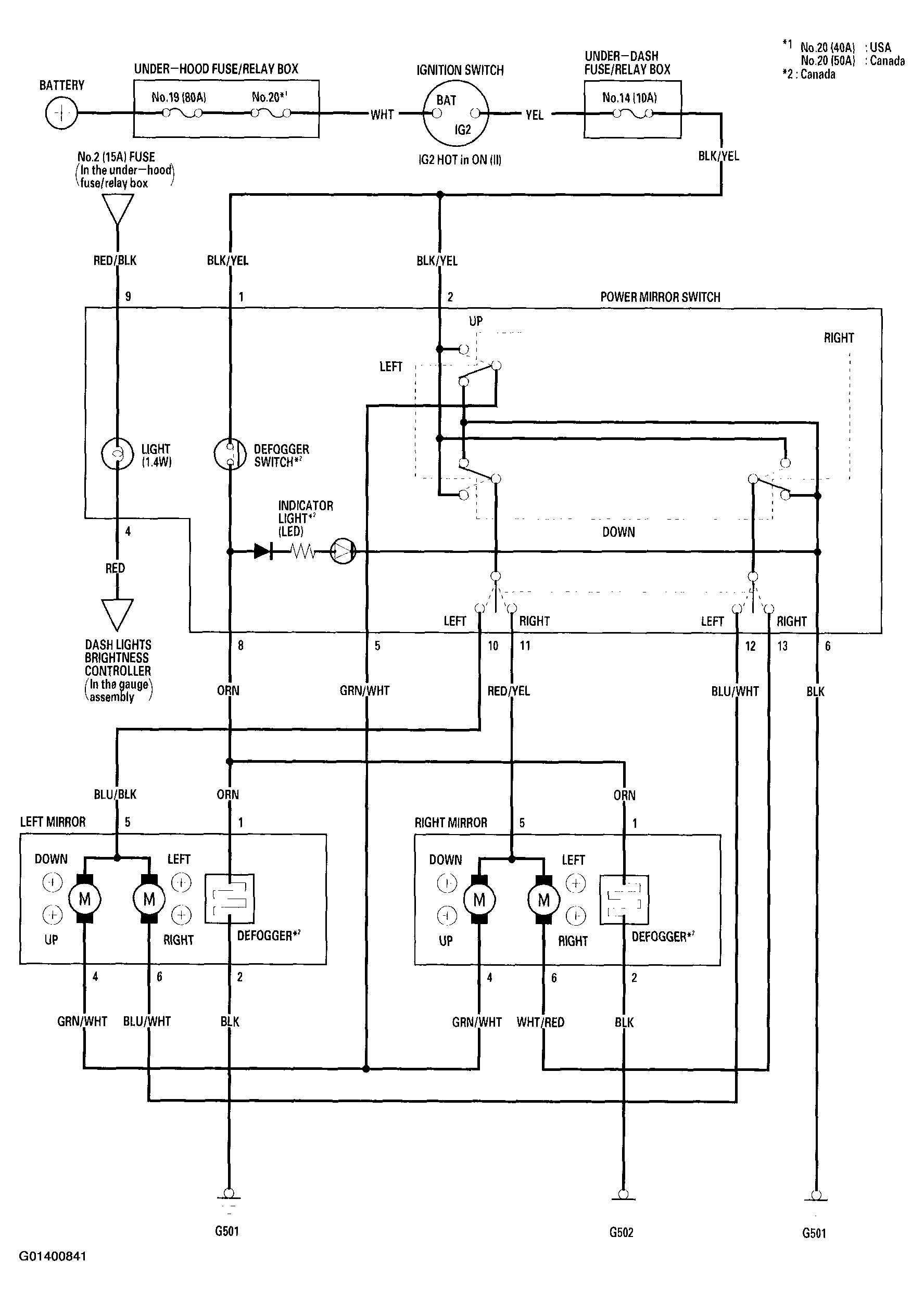

Fig 1: Power Mirror System Wiring Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
