Throttle Body Disassembly/Reassembly

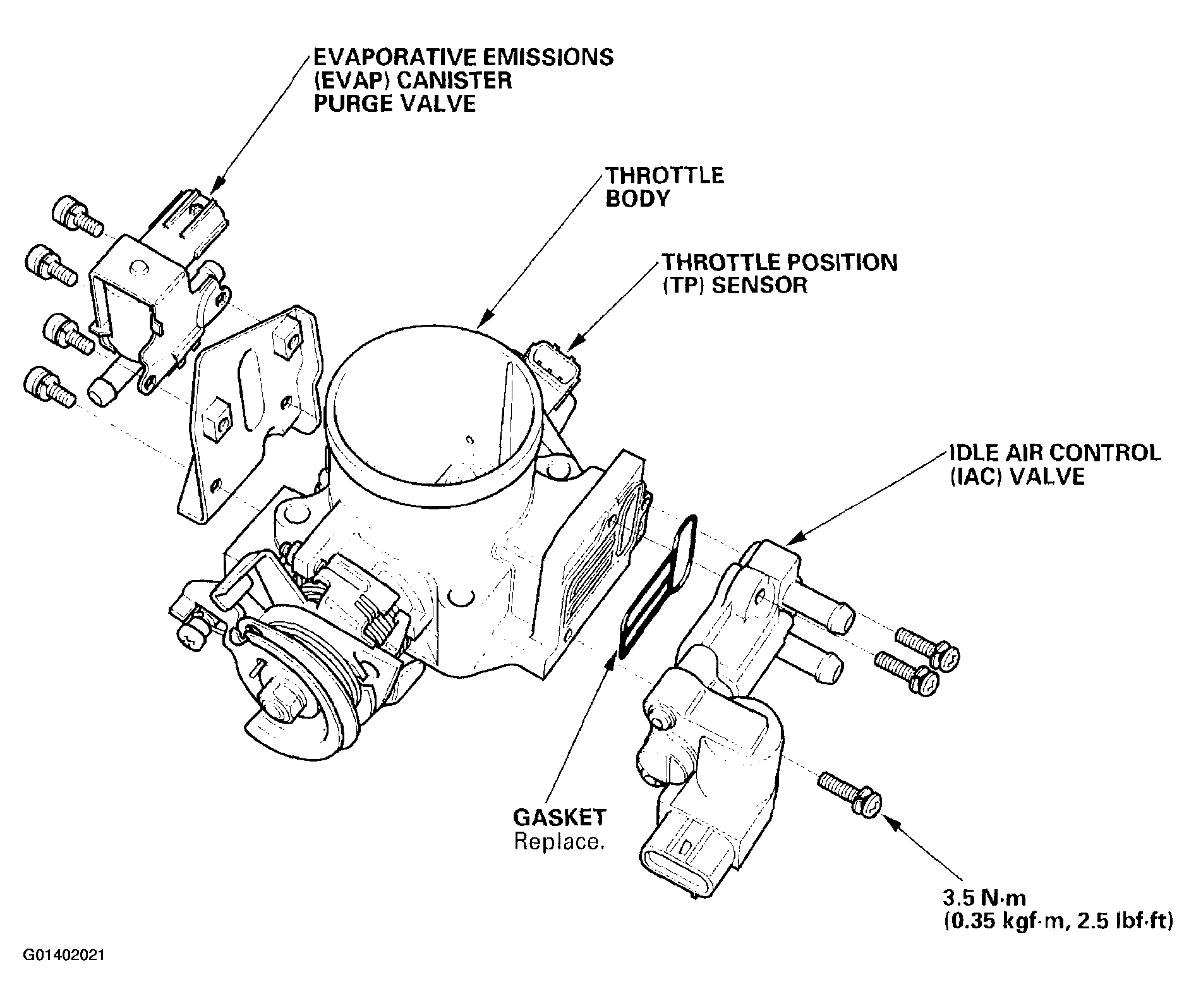

Fig 1: Identifying Throttle Body

G01402021

Courtesy of AMERICAN HONDA MOTOR CO., INC.
