Resonator Removal/Installation

  1. Remove the bolts (A).

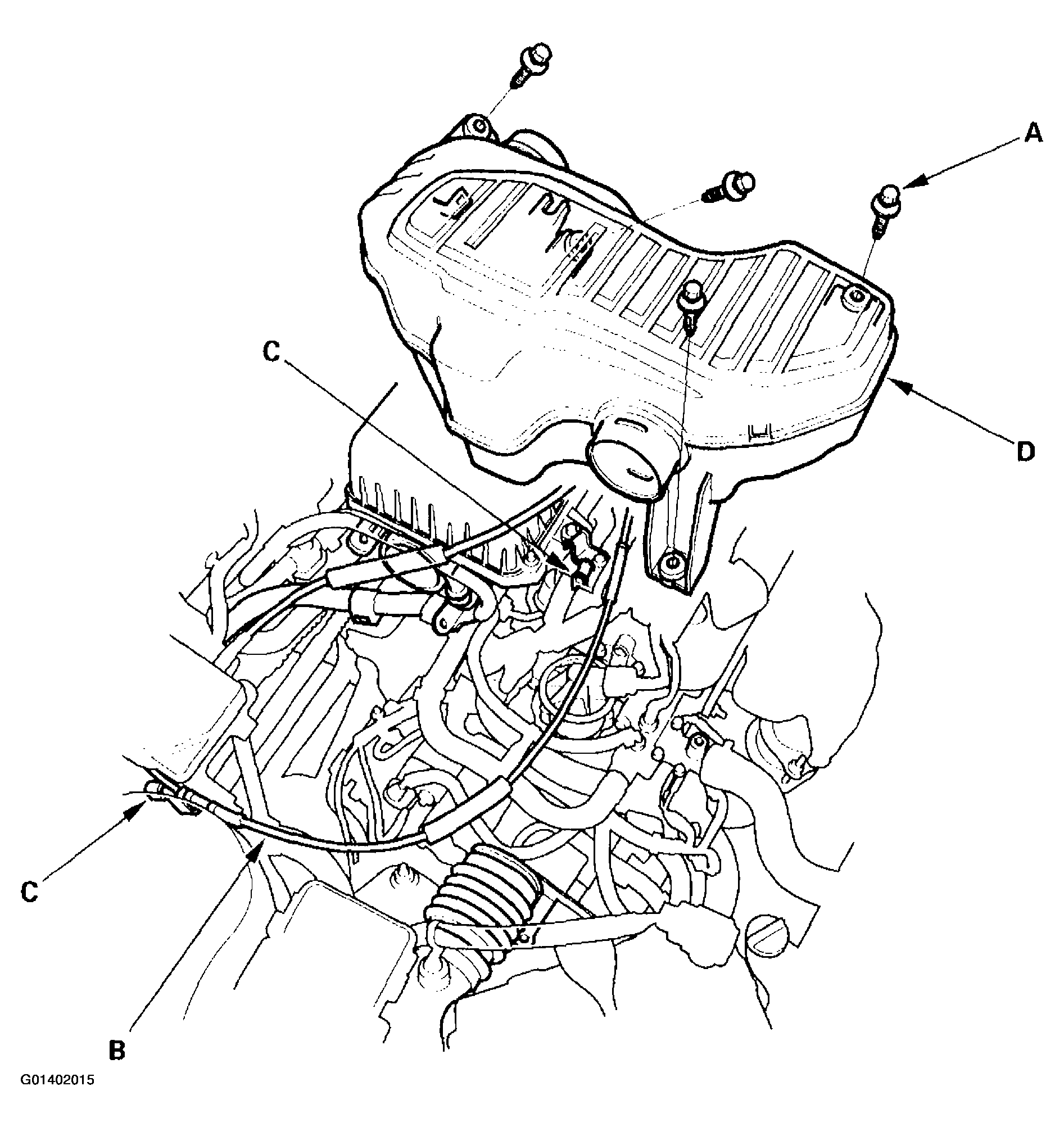

    Fig 1: Removing Resonator Bolts
    G01402015Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the throttle cable (B) from the bracket (C).
  3. Remove the resonator (D).
  4. Install in the reverse order of removal.
