Air Cleaner Element Replacement

  1. Remove the screws, and open the air cleaner housing cover (A).

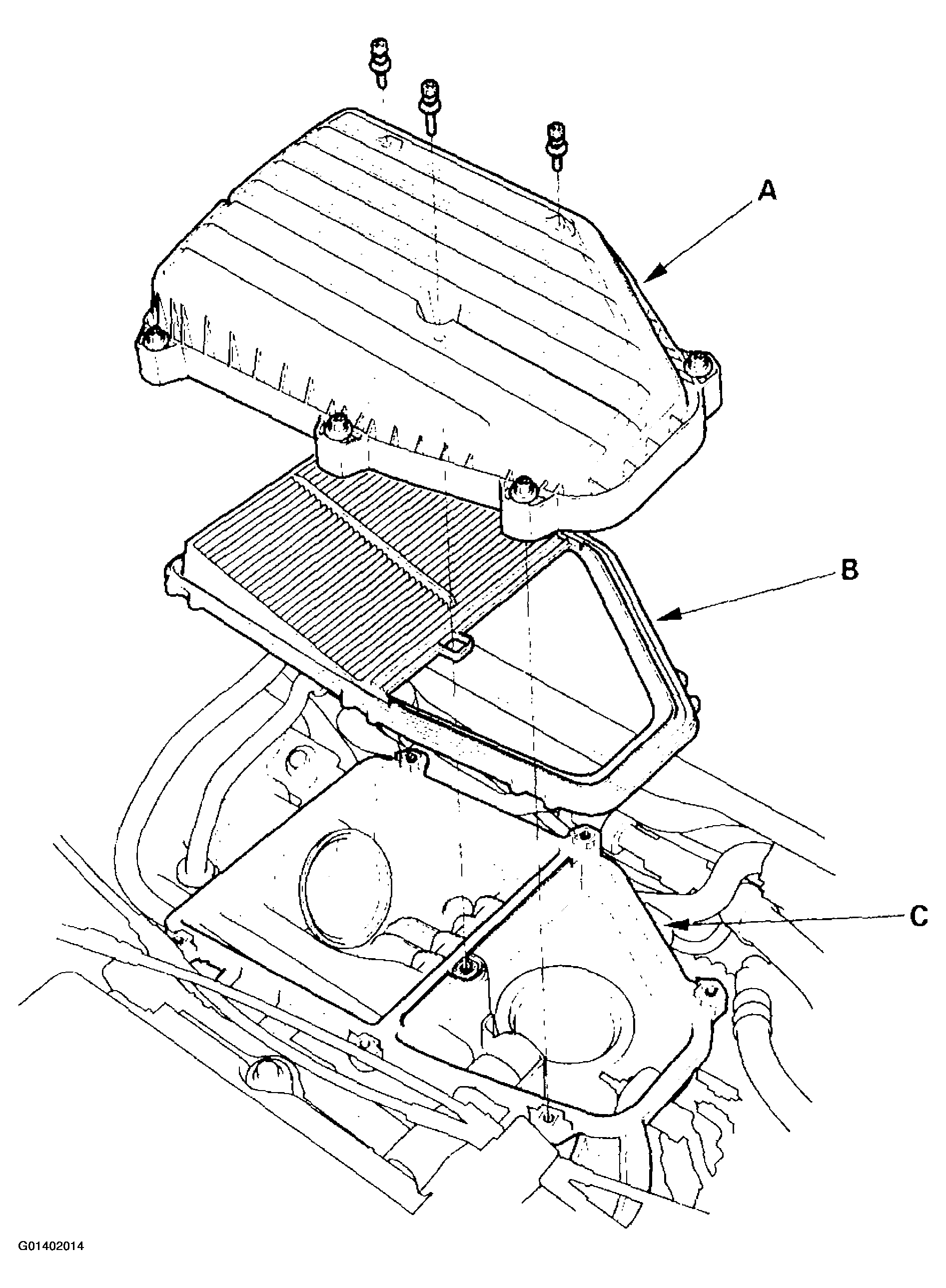

    Fig 1: Removing Screws & Opening Air Cleaner Housing Cover
    G01402014Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner (B) from the air cleaner housing (C).
  3. Install in the reverse order of removal.
