Engine Mount Replacement

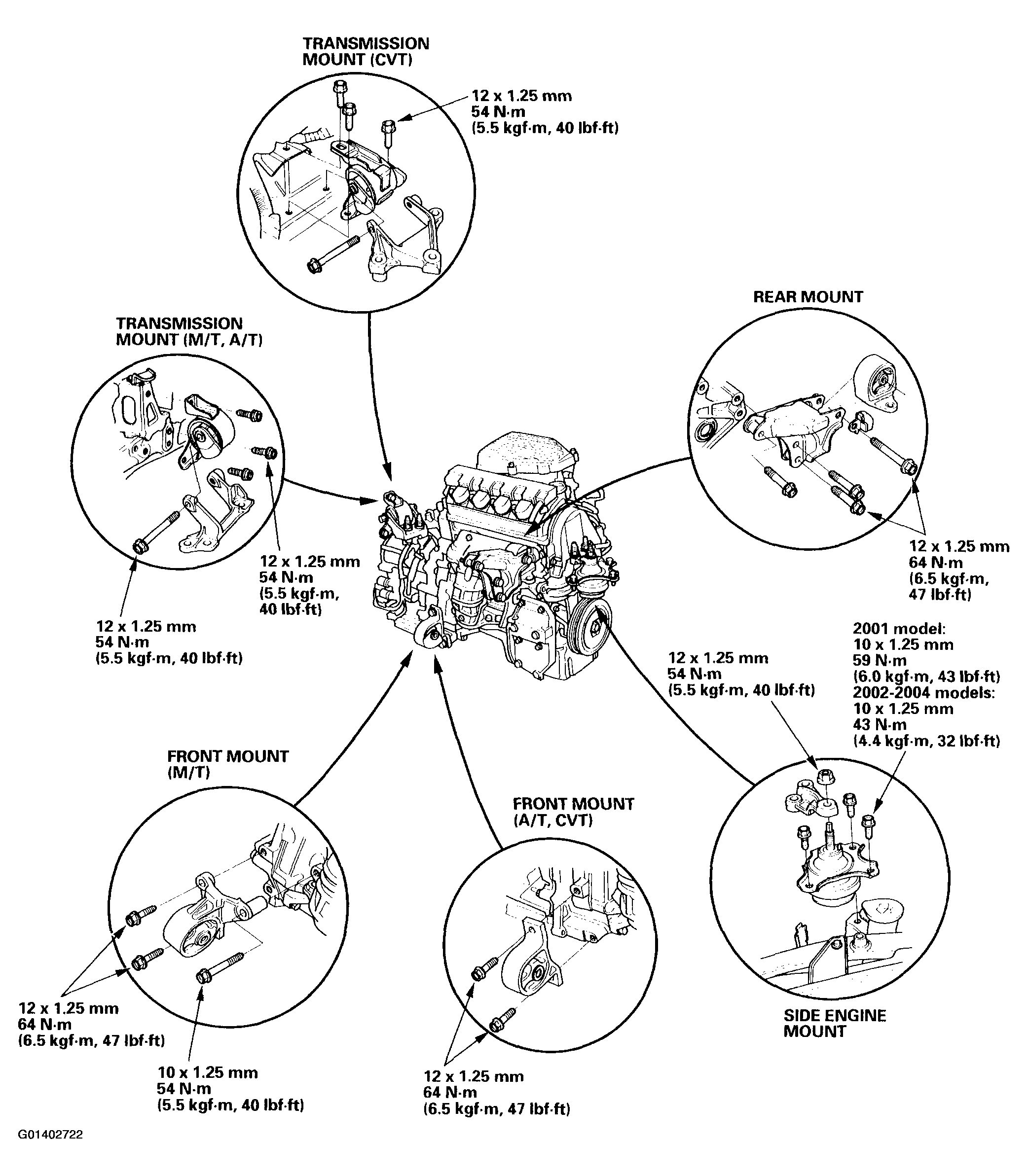

Fig 1: Mount & Bracket Bolts/Nuts With Torque Specifications

G01402722

Courtesy of AMERICAN HONDA MOTOR CO., INC.
