Piston, Pin, and Connecting Rod Replacement: Reassembly

  1. Assemble the piston and connecting rod with the connecting rod oil hole (A) facing the "IN" mark (B).

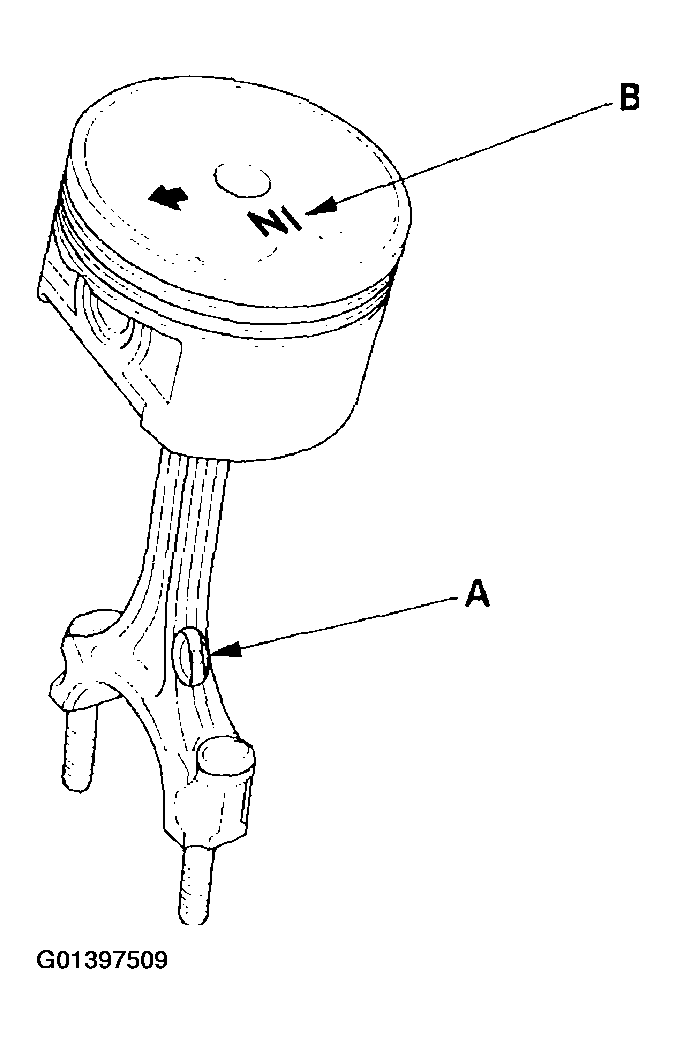

    Fig 1: Assembling Piston & Connecting Rod With Connecting Rod Oil Hole
    G01397509Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Insert the pilot collar (A) into the piston and connecting rod.

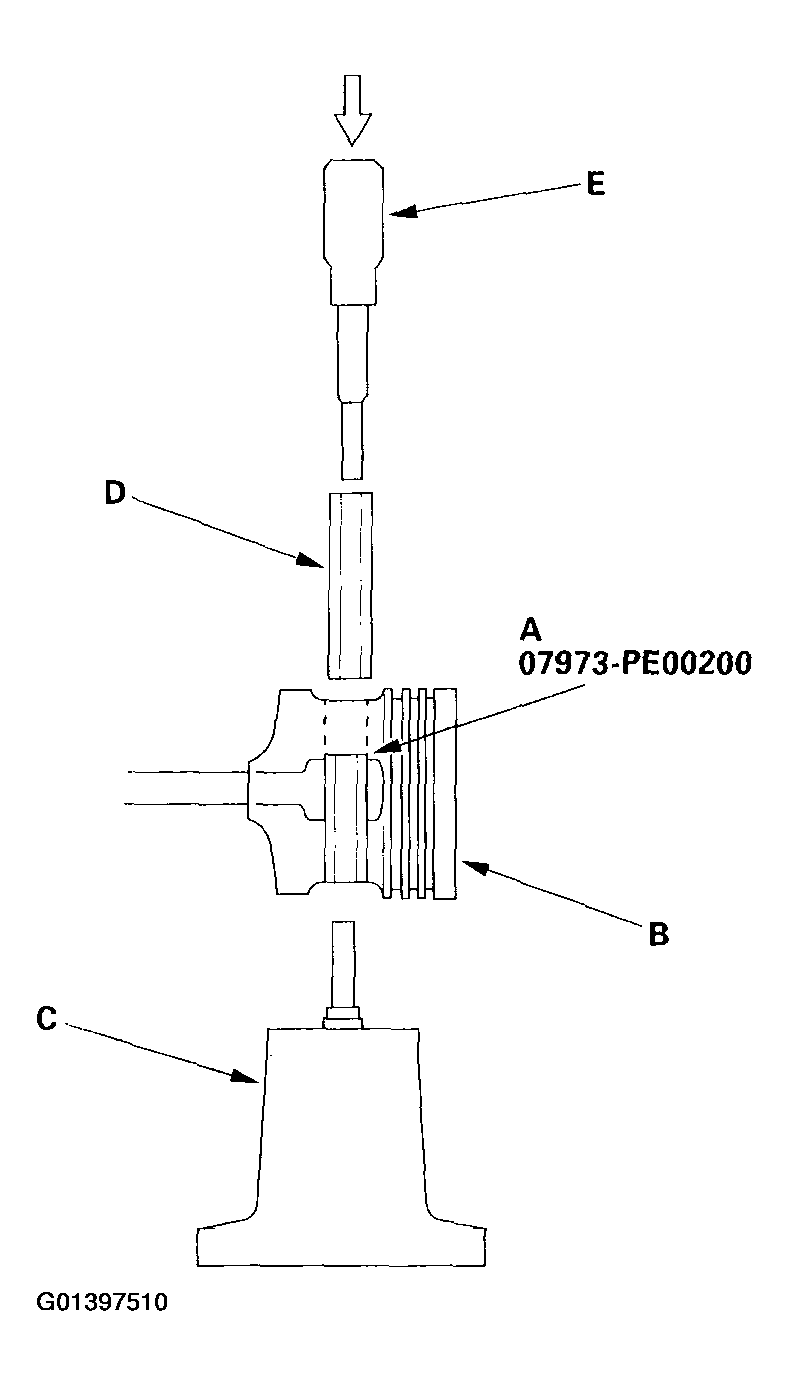

    Fig 2: Inserting Pilot Collar
    G01397510Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. With the embossed mark facing up, place the piston assembly (B) on the special tool (C). Be sure you position the recessed flat on the piston against the lugs on the base attachment.
  4. Press the pin (D) in with the pin driver (E) and a hydraulic press.
