Knock Sensor Replacement

  1. Disconnect the knock sensor connector, then remove the knock sensor.

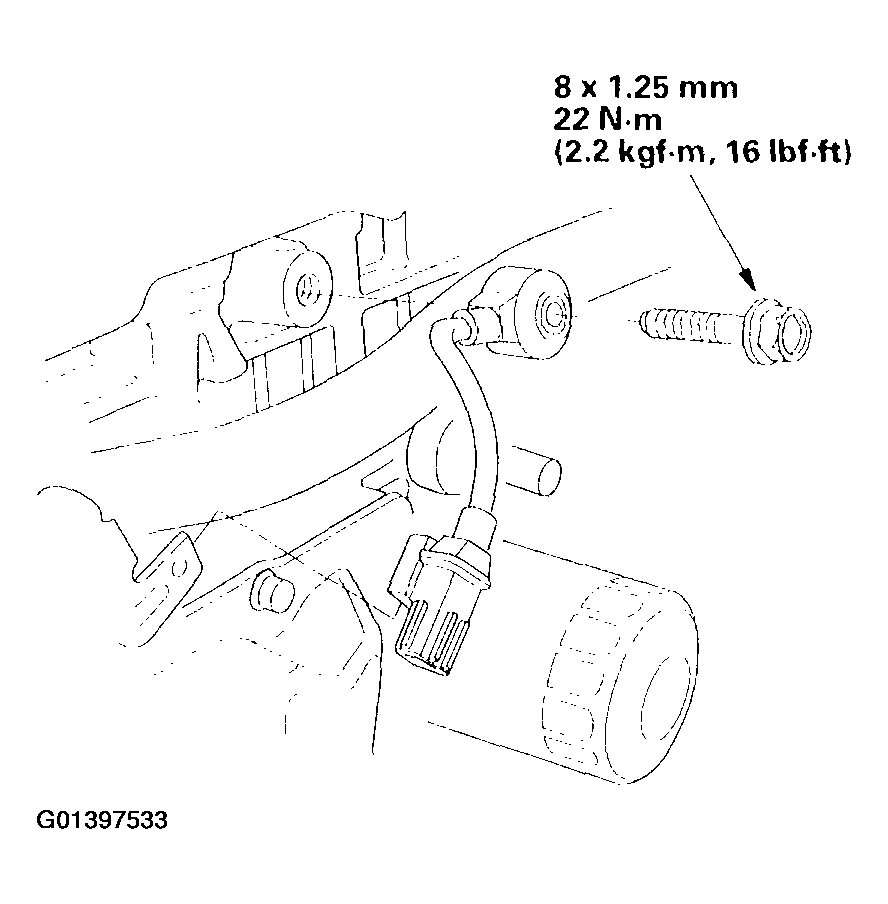

    Fig 1: Disconnecting Knock Sensor Connector With Torque Specifications
    G01397533Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the knock sensor.
