Component Location Index

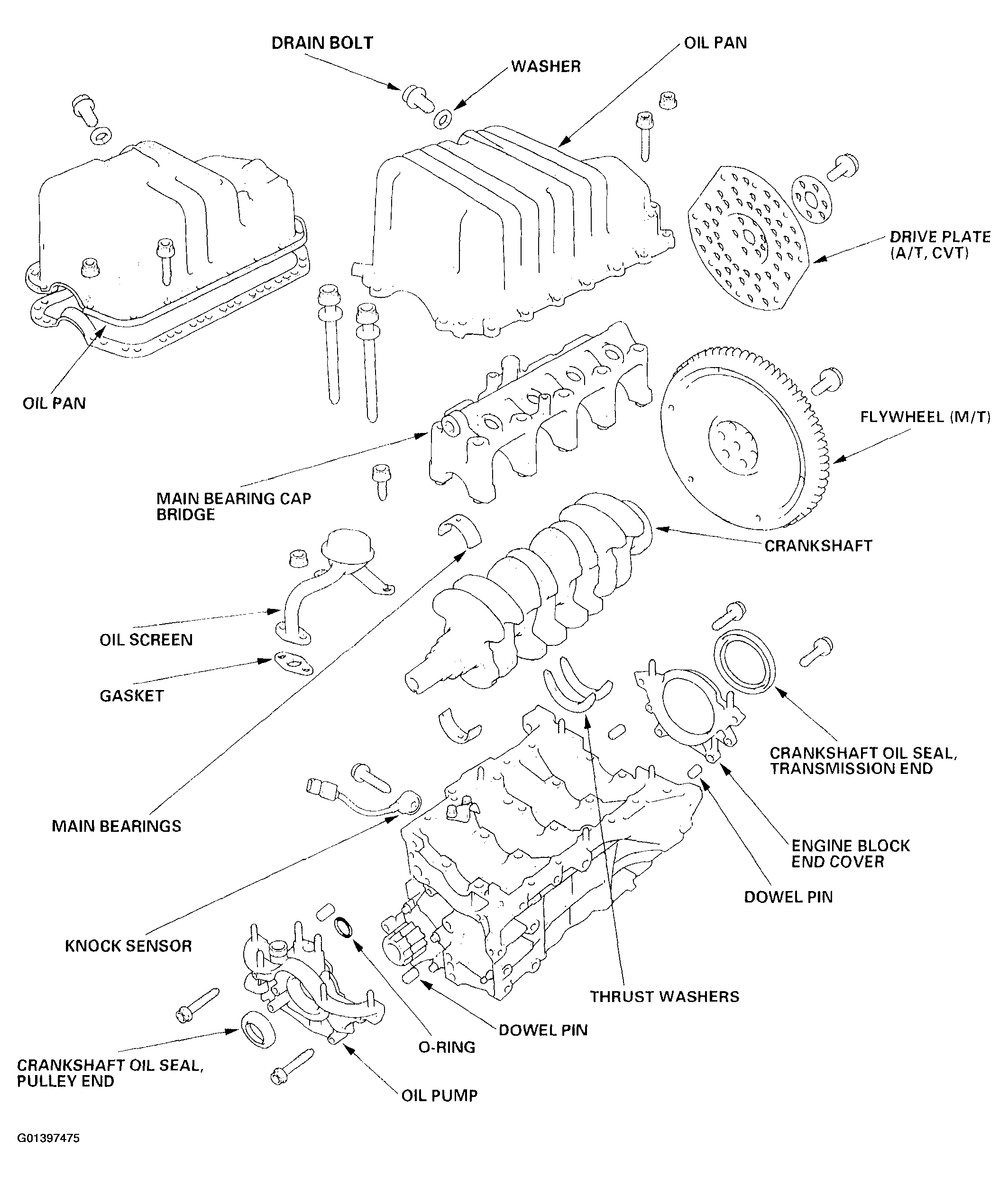

Fig 1: Exploded View Of Engine Block Components (1 Of 2)
G01397475Courtesy of AMERICAN HONDA MOTOR CO., INC.

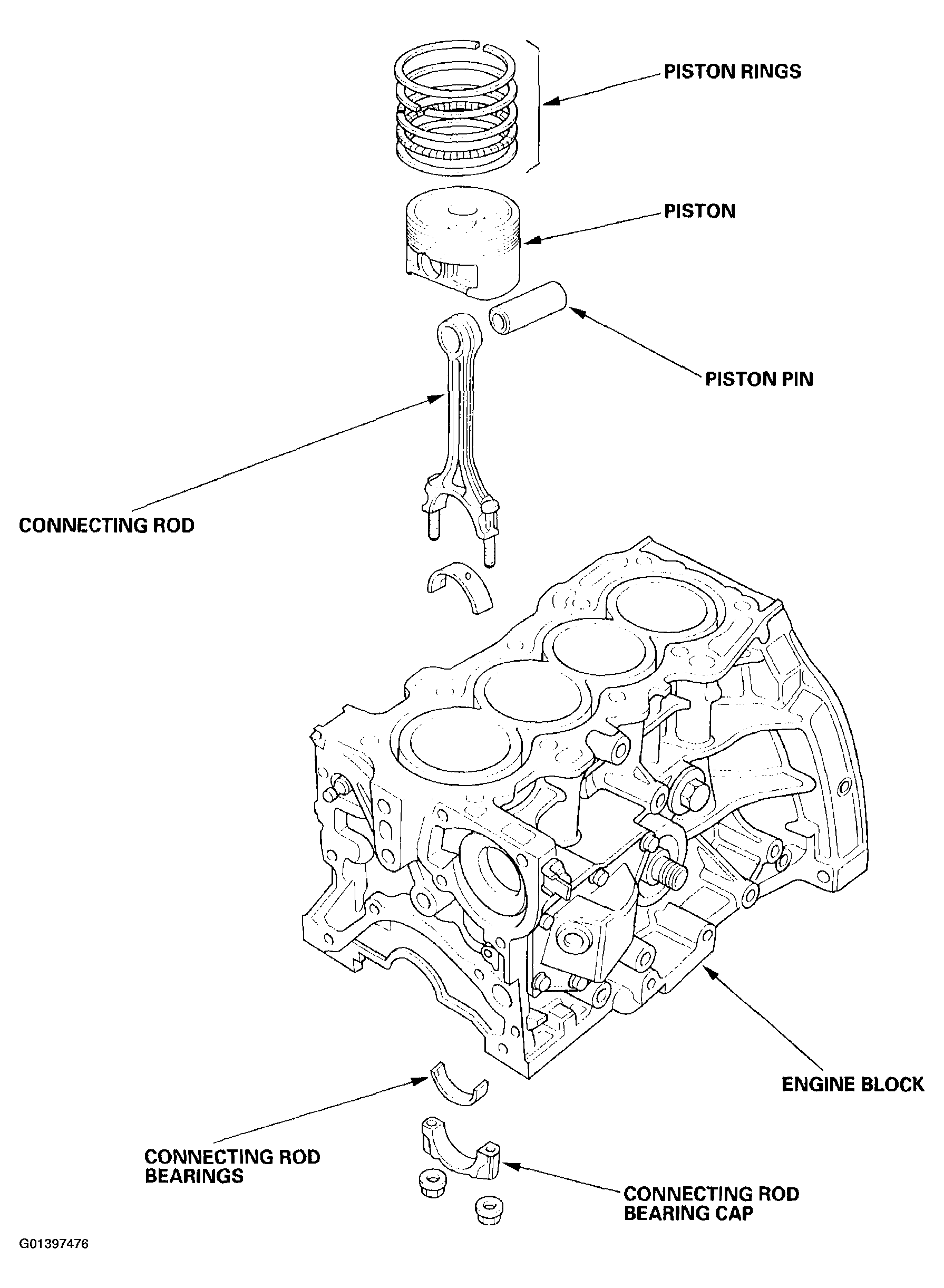

Fig 2: Exploded View Of Engine Block Components (2 Of 2)
G01397476Courtesy of AMERICAN HONDA MOTOR CO., INC.
