Overhaul - 1.7L Engine
>>
Component Location Index
Component Location Index

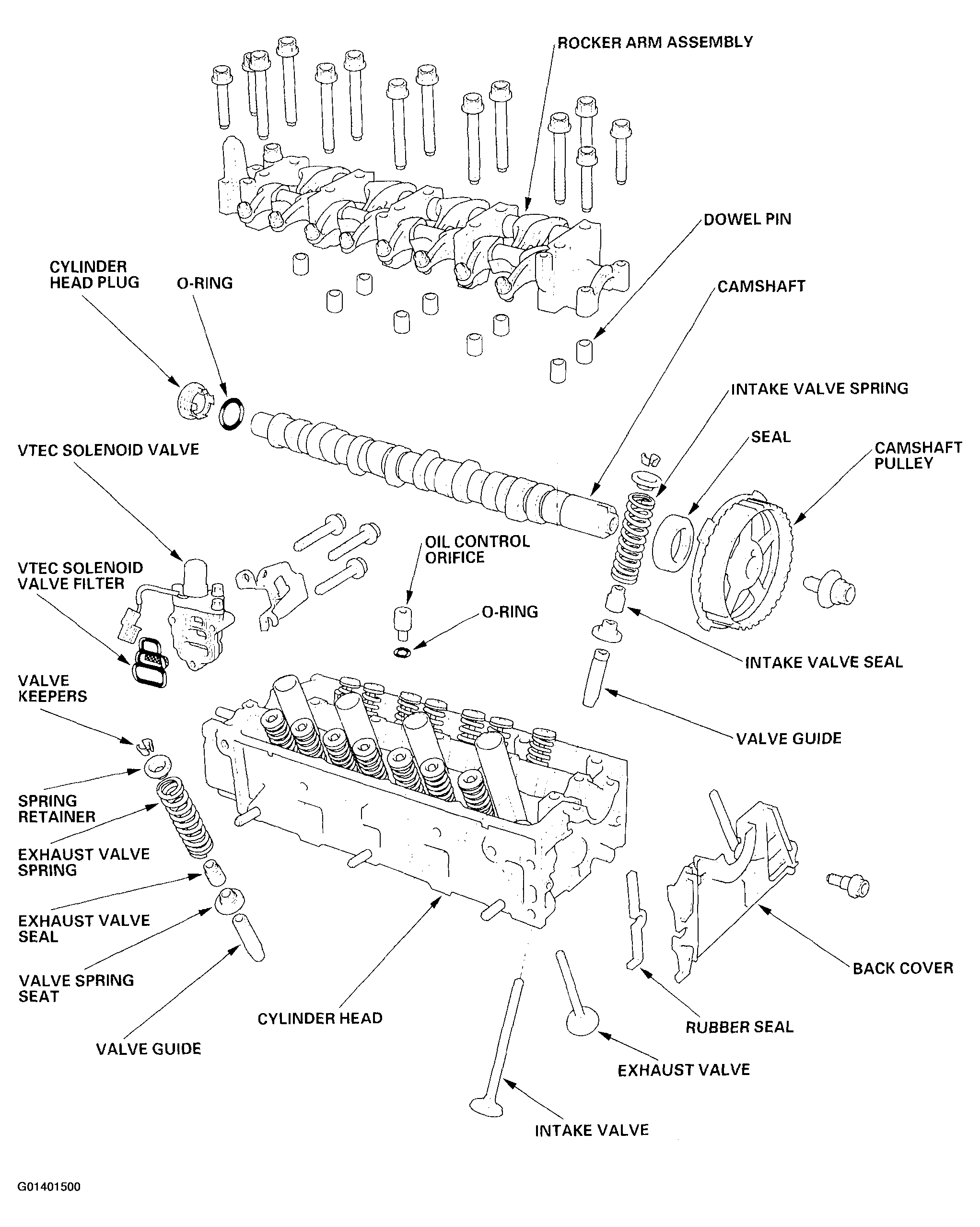

Fig 1: Identifying Cylinder Head Components (D17A1, D17A2, D17A6 Engines - 1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

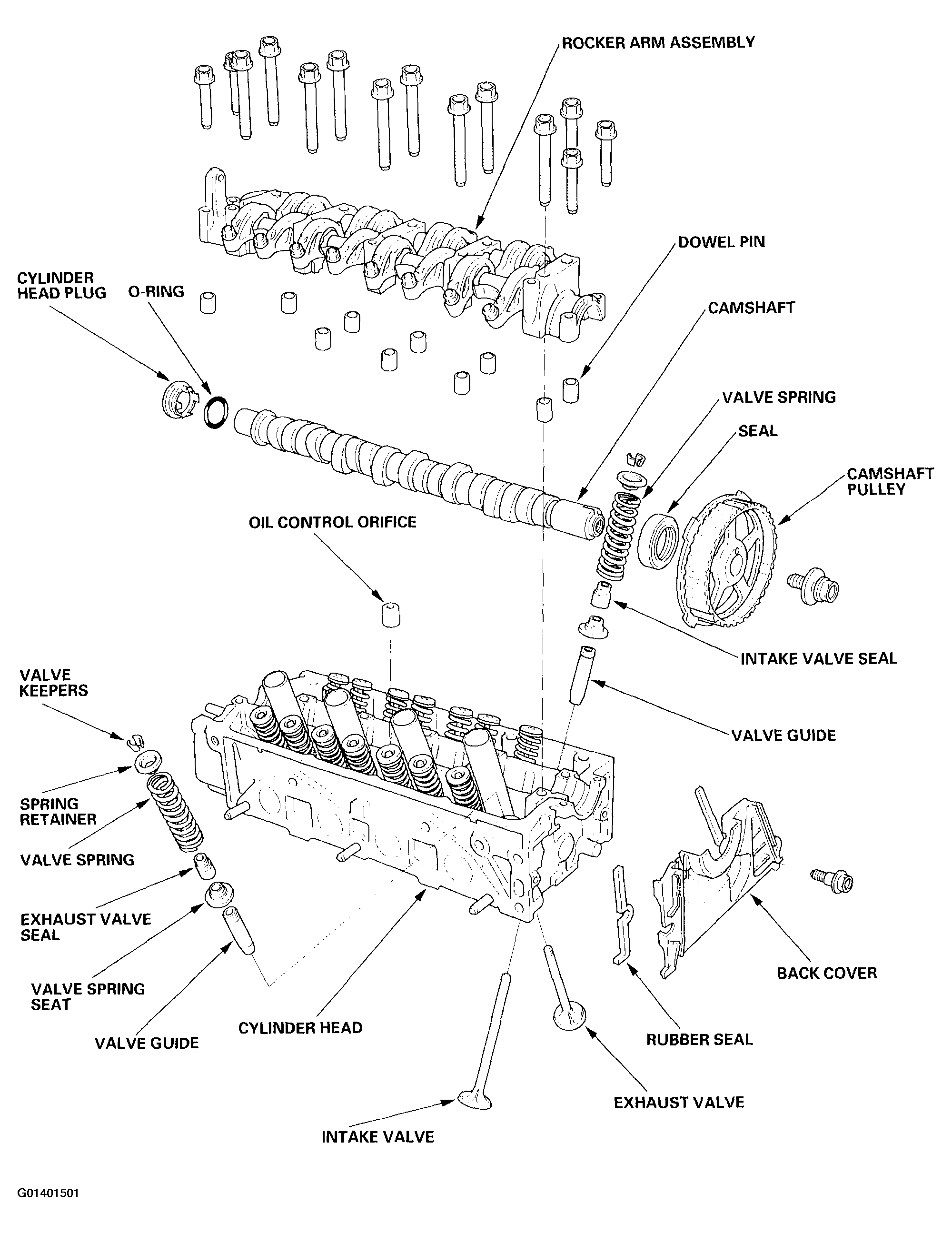

Fig 2: Identifying Cylinder Head Components (D17A1, D17A2, D17A6 Engines - 2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Identifying Cylinder Head Components (D17A2, D17A6 Engines - 3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

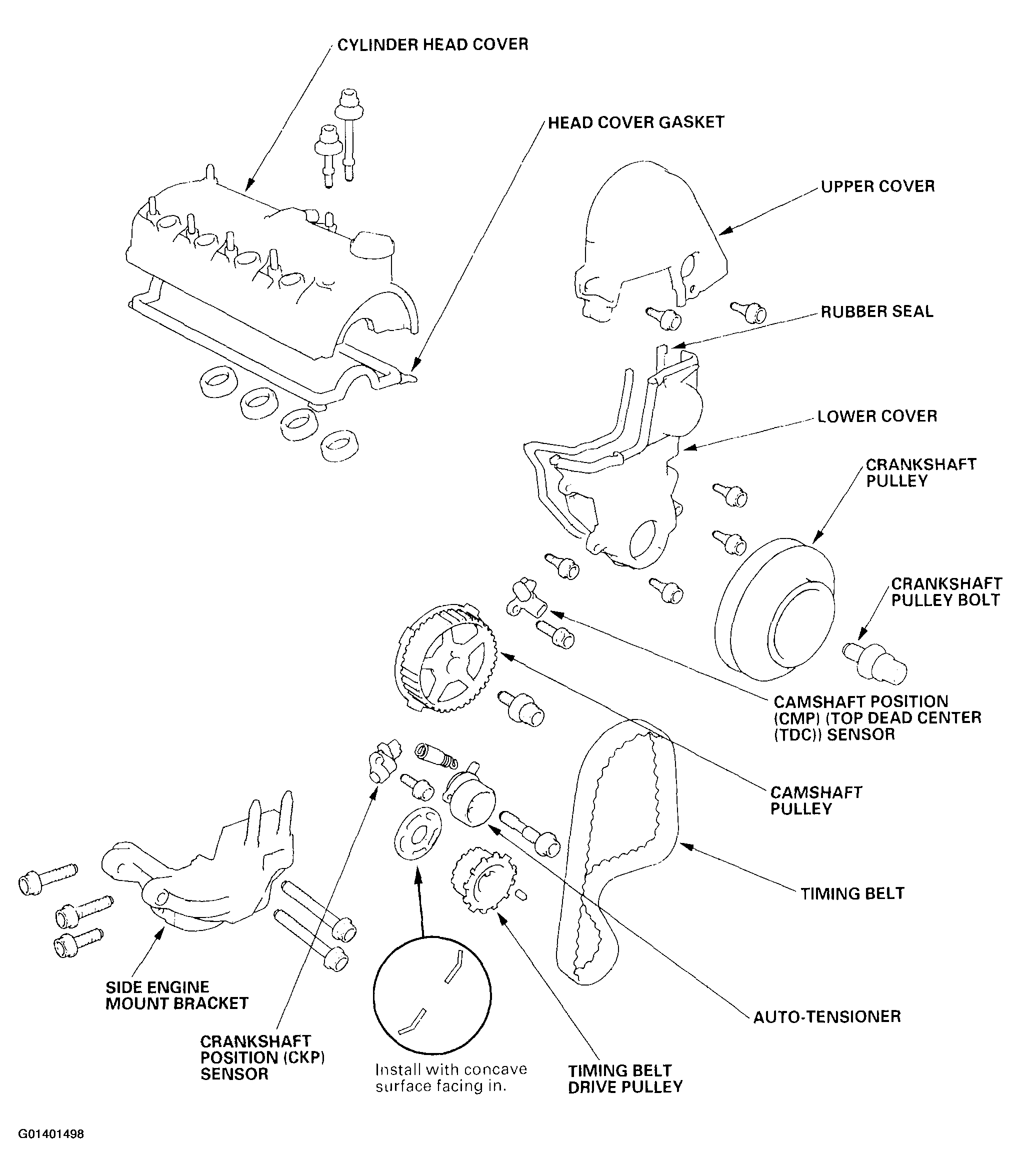

Fig 4: Identifying Cylinder Head Components (D17A1 Engine - 4 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
