CMP (TDC) Sensor Replacement

  1. Remove the grommet (A) from the upper cover, and disconnect the camshaft position (CMP) (top dead center (TDC)) sensor connector (B).

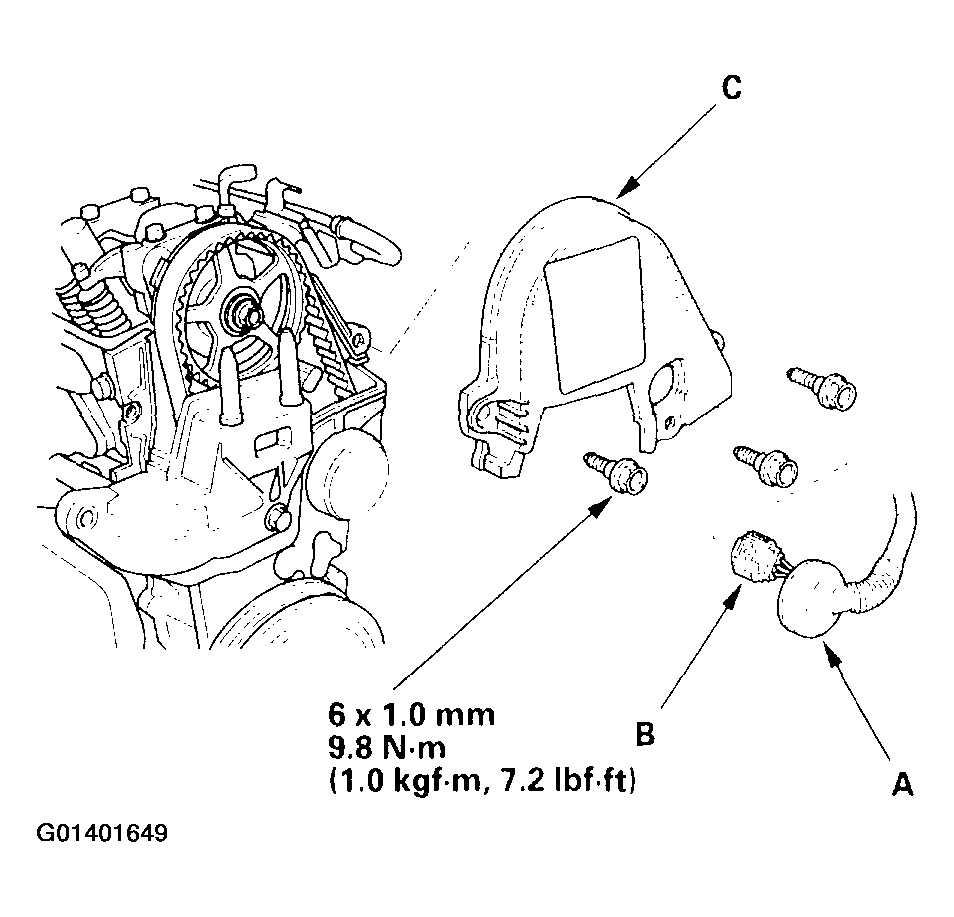

    Fig 1: Removing Grommet From Upper Cover With Torque Specifications
    G01401649Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the upper cover (C).
  3. Remove the CMP (TDC) sensor from the cylinder head.

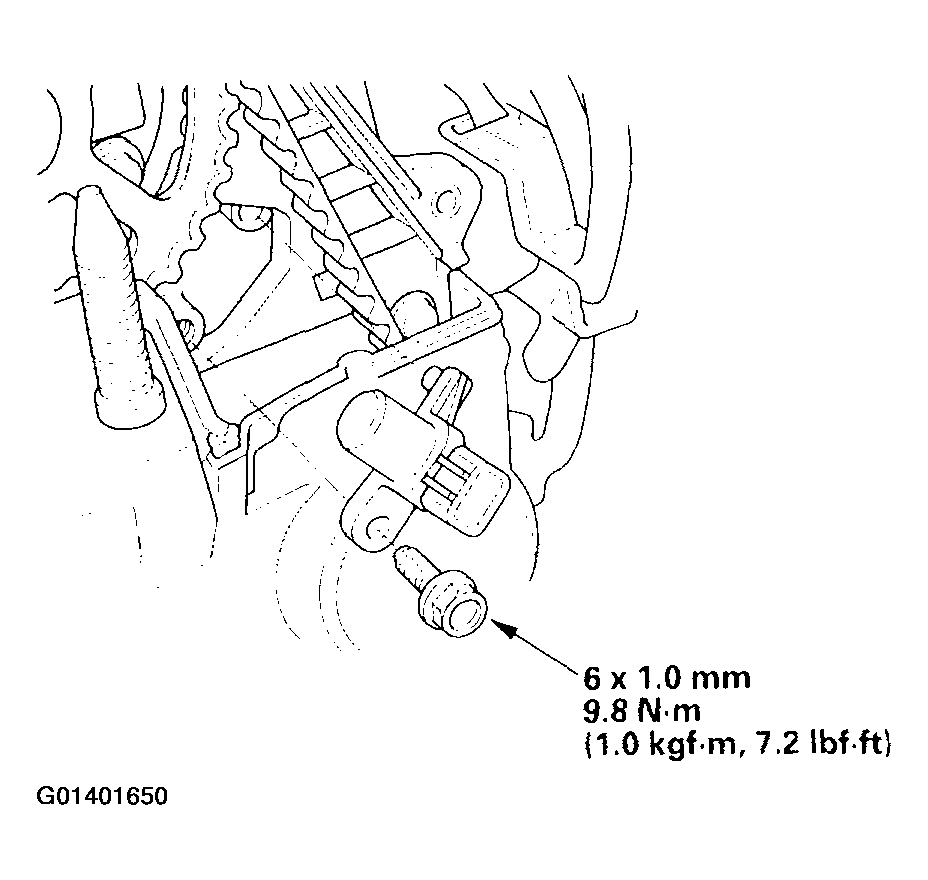

    Fig 2: Removing CMP (TDC) Sensor From Cylinder Head With Torque Specifications
    G01401650Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the CMP (TDC) sensor in reverse order of removal.
