CKP Sensor Replacement

  1. Remove the grommet (A) from the upper cover, and disconnect the camshaft position (CMP) (top dead center (TDC)) sensor connector (B).

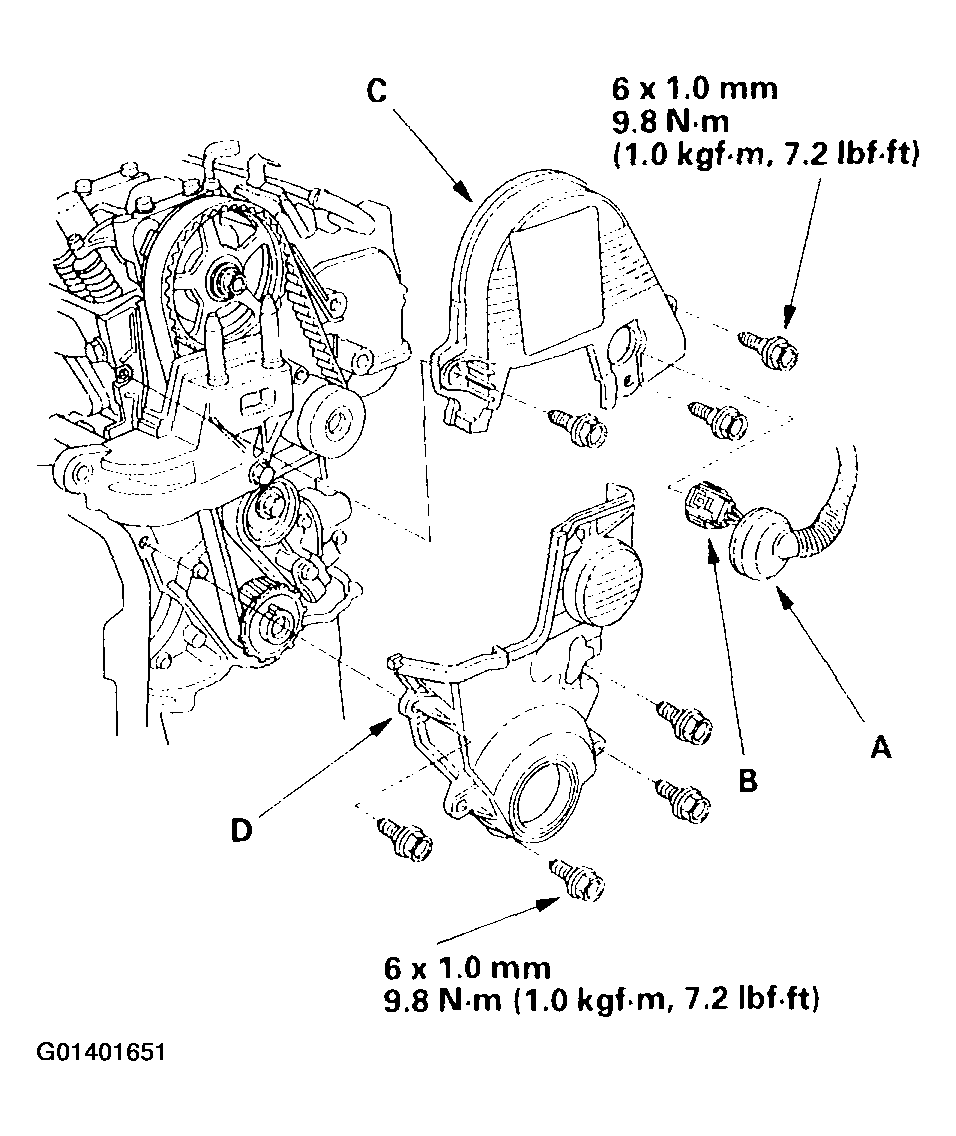

    Fig 1: Removing Grommet From Upper Cover With Torque Specifications
    G01401651Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the upper cover (C) and lower cover (D).
  3. Disconnect the crankshaft position (CKP) sensor connector, then remove the CKP sensor from the oil pump.

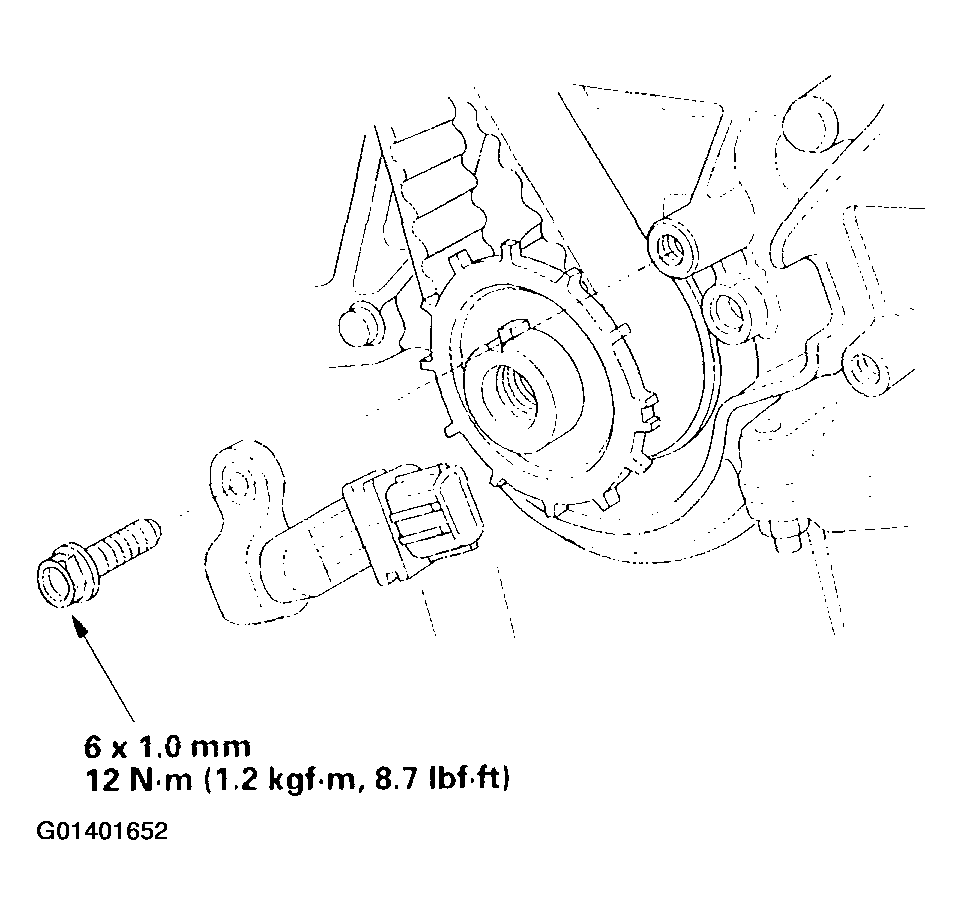

    Fig 2: Disconnecting CKP Sensor Connector With Torque Specifications
    G01401652Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the CKP sensor in reverse order of removal.
