Alternator Control System Test

For alternator control system test, see Fig 1.

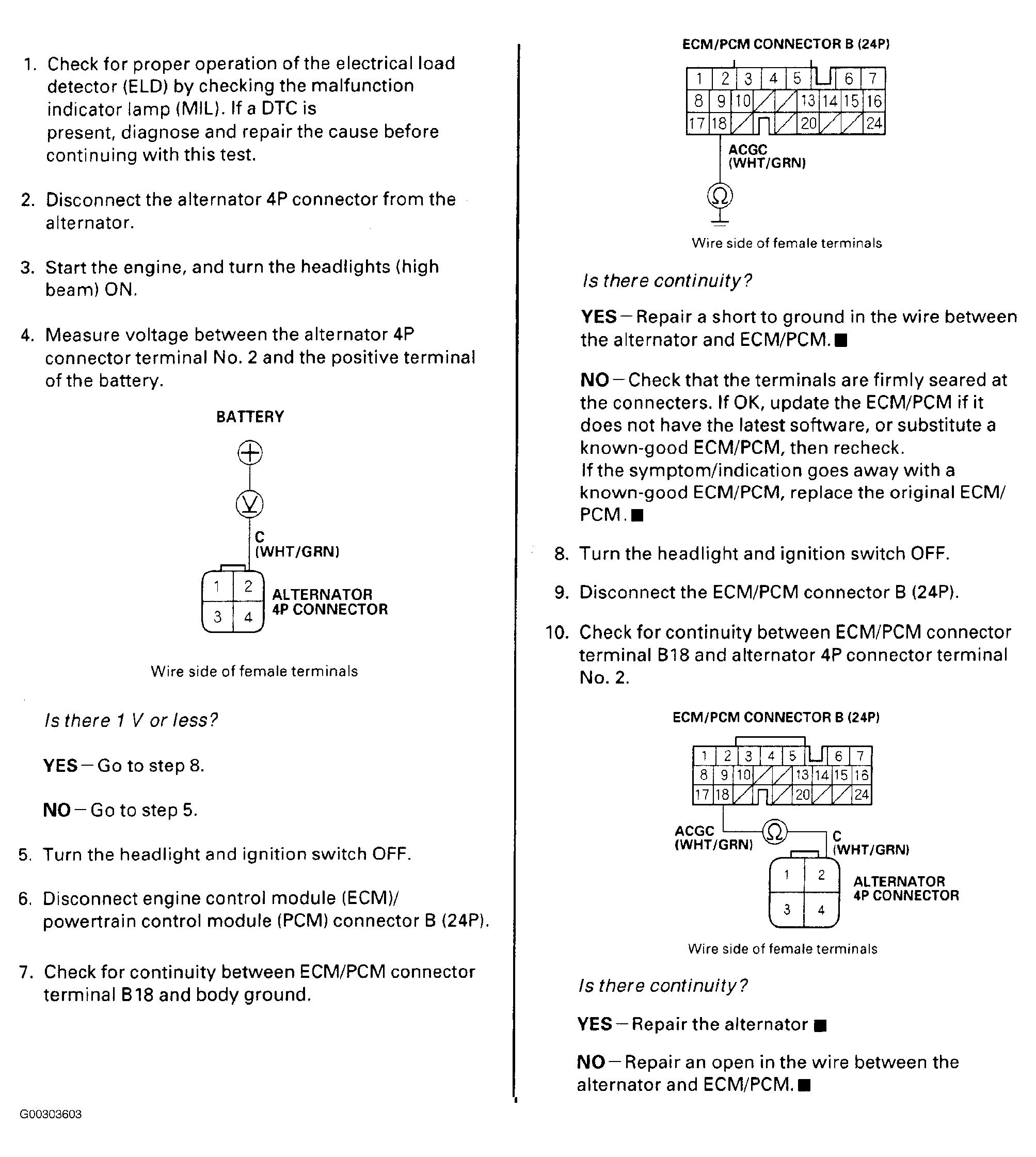

Fig 1: Alternator Control System Test
G00303603Courtesy of AMERICAN HONDA MOTOR CO., INC.
