Steering Wheel Removal

SRS components are located in this area. Review the SRS component locations (see AIR BAG RESTRAINTS SYSTEMS article ) and precautions and procedures in the SRS before performing repairs or service.

1. Align the front wheels straight ahead, then remove the driver's airbag from the steering wheel (see AIR BAG RESTRAINTS SYSTEMS ).
2. Disconnect the cruise control set/resume switch connector (A) and horn switch connector (B).

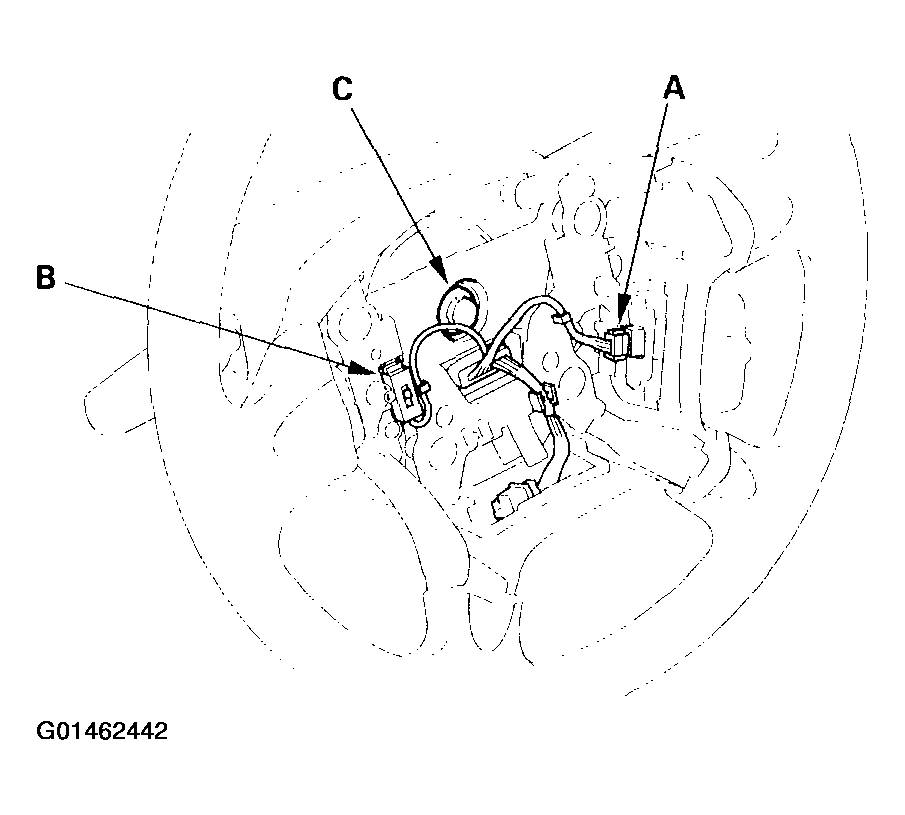

   Fig 1: Disconnecting Cruise Control Set/Resume Switch Connector & Horn Switch Connector

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Loosen the steering wheel bolt (C).
4. Install a commercially-available steering wheel puller (A) on the steering wheel (B). Free the steering wheel from the steering column shaft by turning the pressure bolt (C) of the puller.
   NOTE: Note these items when removing the steering wheel:
   • Do not tap on the steering wheel or the steering column shaft when removing the steering wheel.
   • If you thread the puller bolts (D) into the wheel hub more than five threads, the bolts will hit the cable reel and damage it. To prevent this, install a pair of jam nuts five threads up on each puller bolt.

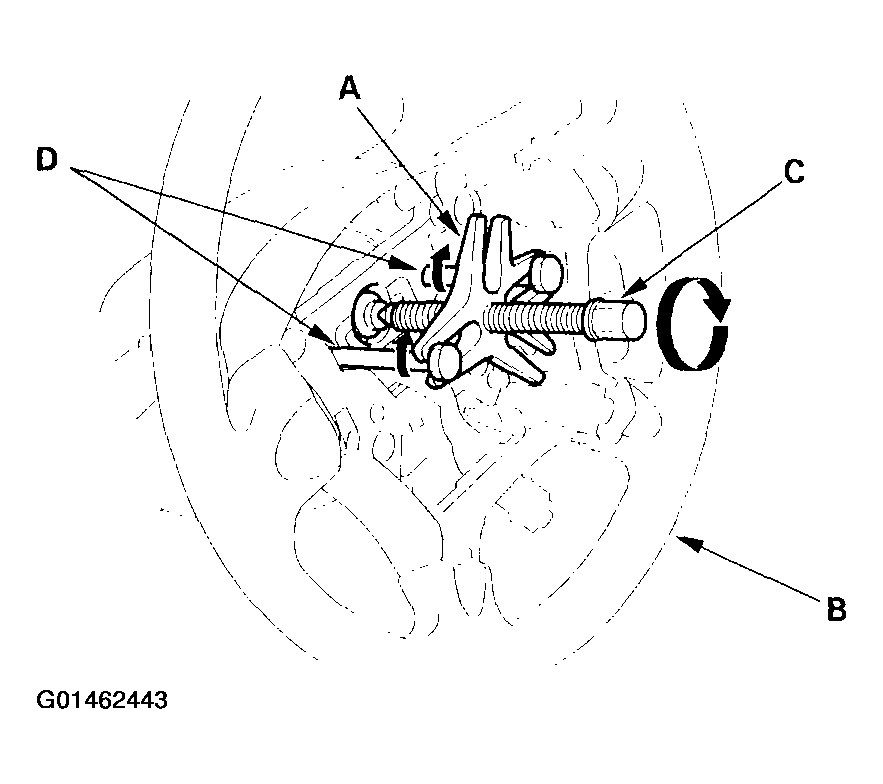

     Fig 2: Installing Steering Wheel Puller On Steering Wheel

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
   • Remove the steering wheel puller, then remove the steering wheel bolt and steering wheel from the steering column.

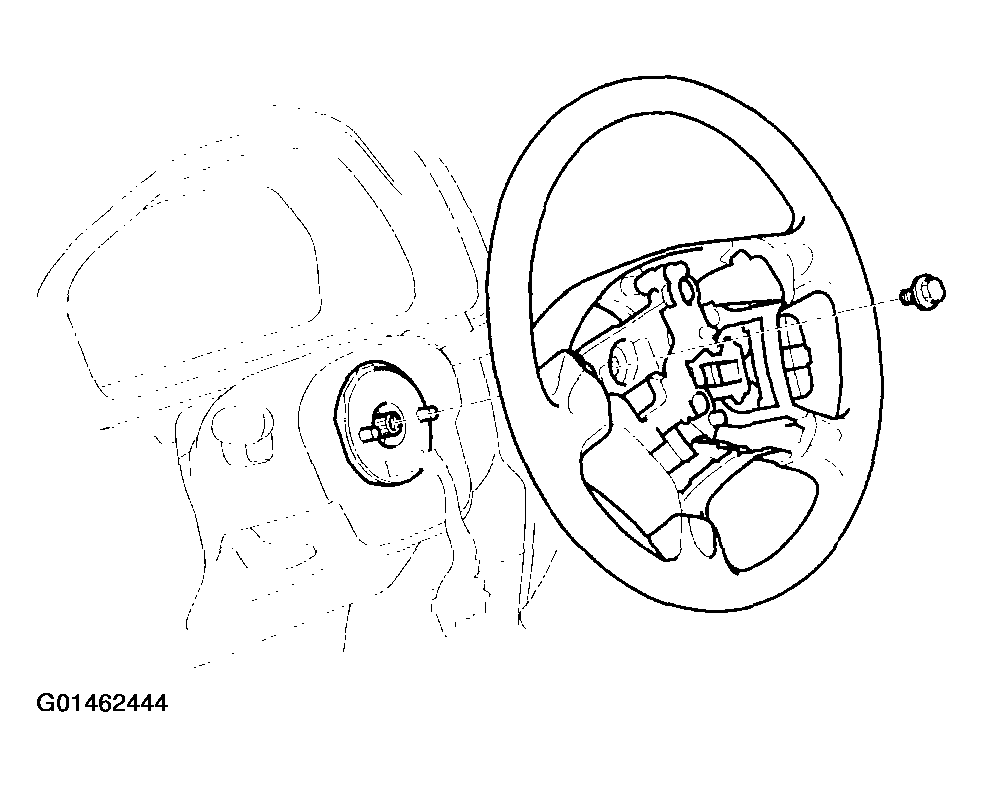

     Fig 3: Removing Steering Wheel Puller, Steering Wheel Bolt & Steering Wheel From Steering Column

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
