Fuel Pressure Regulator Replacement

  1. Remove the fuel pump (see Fuel Pump/Fuel Gauge Sending Unit Replacement  ).
  2. Remove the clip (A).

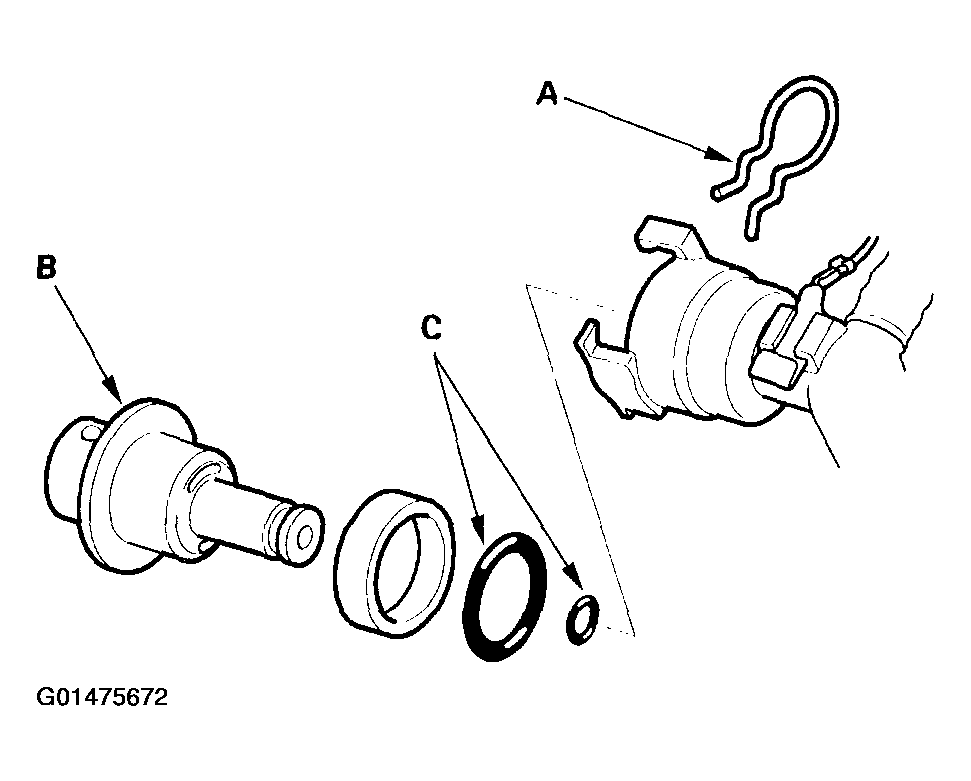

    Fig 1: Removing Clip
    G01475672Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the fuel pressure regulator (B).
  4. Install the regulator in the reverse order of removal with new O-rings (C).
