Starting System: Overhaul: Starter: Disassembly

For disassembly, use exploded view of starter, see Fig 1.

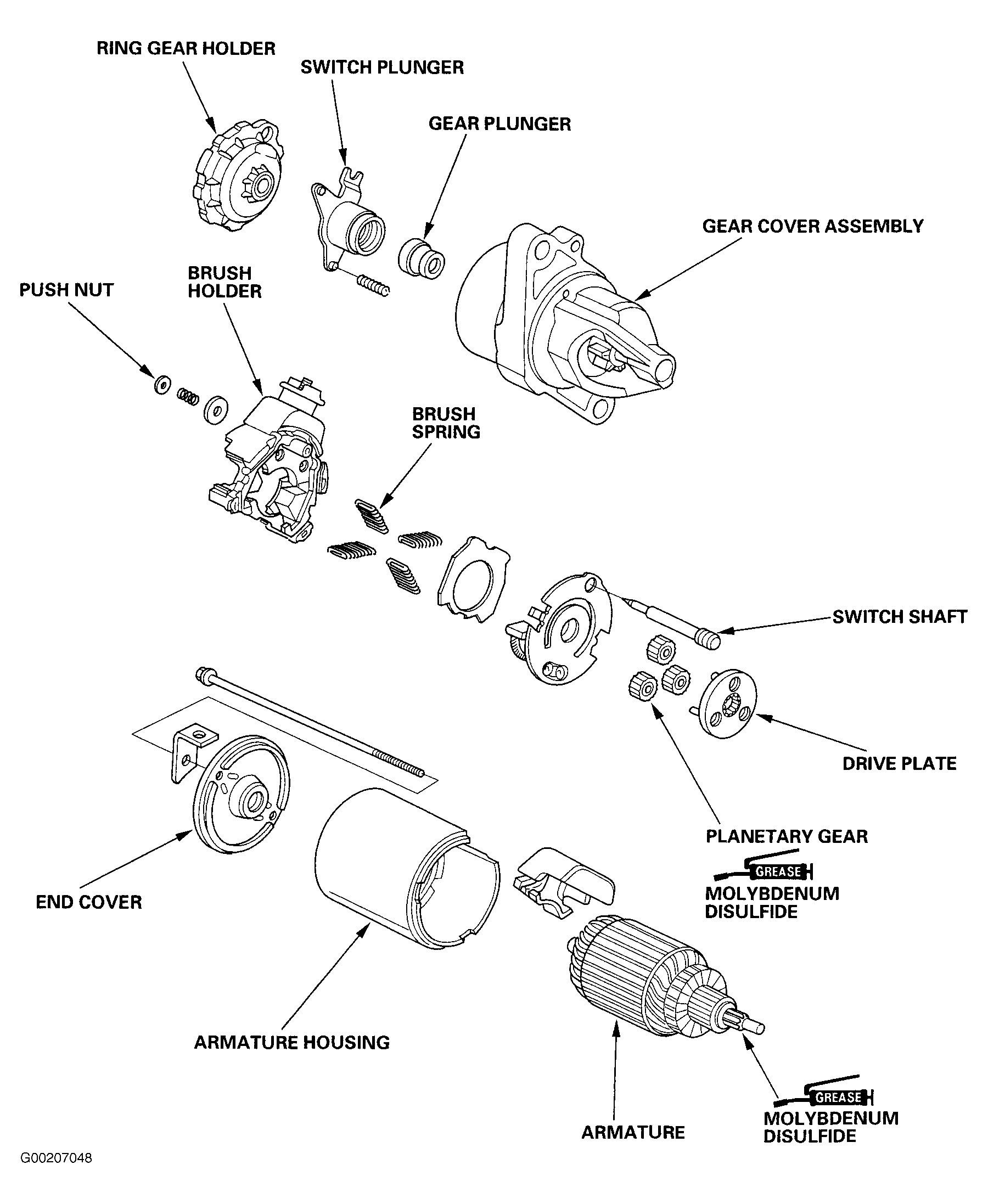

Fig 1: Exploded View Of Starter

G00207048

Courtesy of AMERICAN HONDA MOTOR CO., INC.
