Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
System
>>
Fuel & Emission Systems
>>
System Descriptions
>>
Vacuum Distribution
Vacuum Distribution

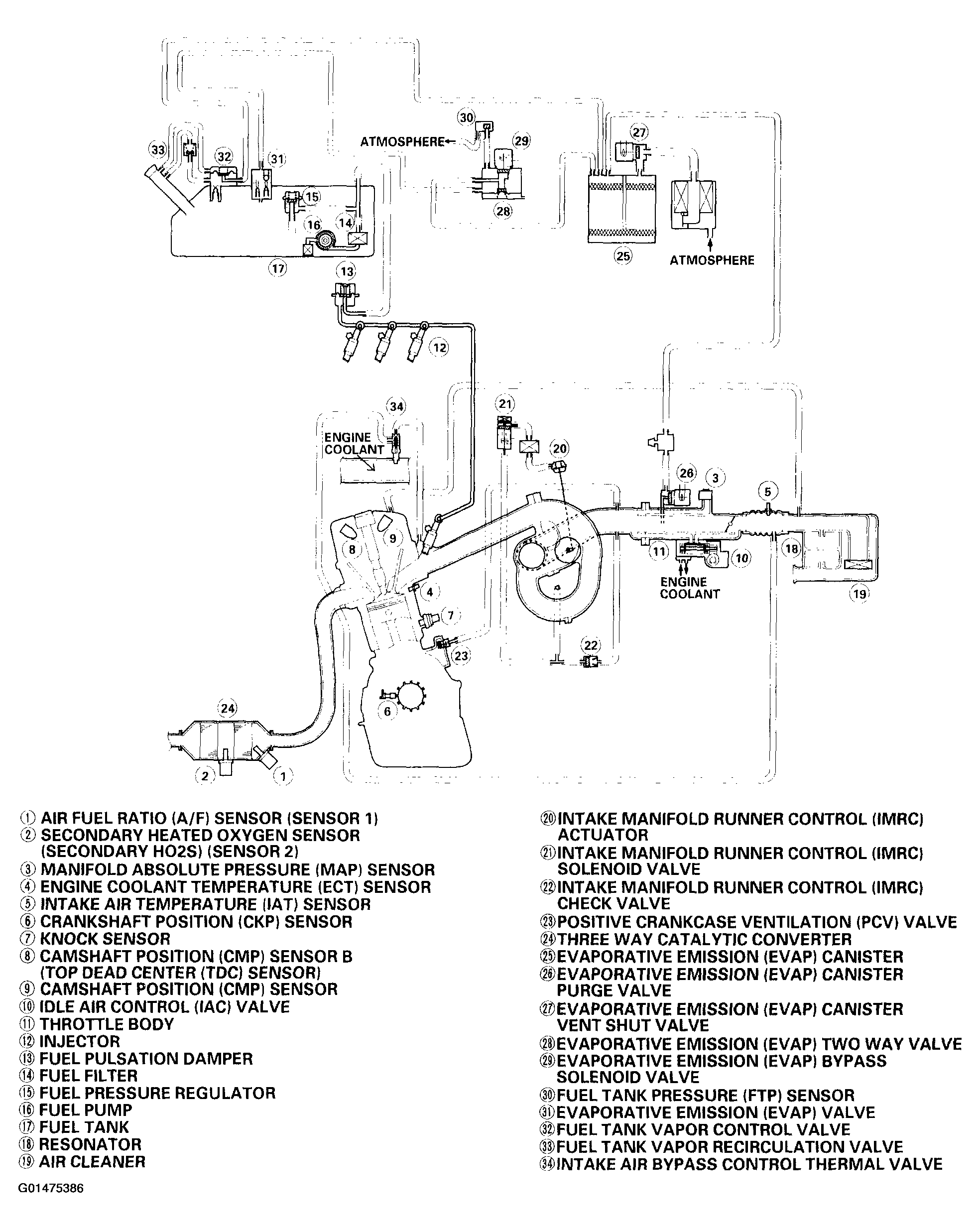

Fig 1: Identifying Vacuum Distribution
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
