Hatch Glass Opener Switch Test/ Replacement

  1. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 2P connector from the opener switch.

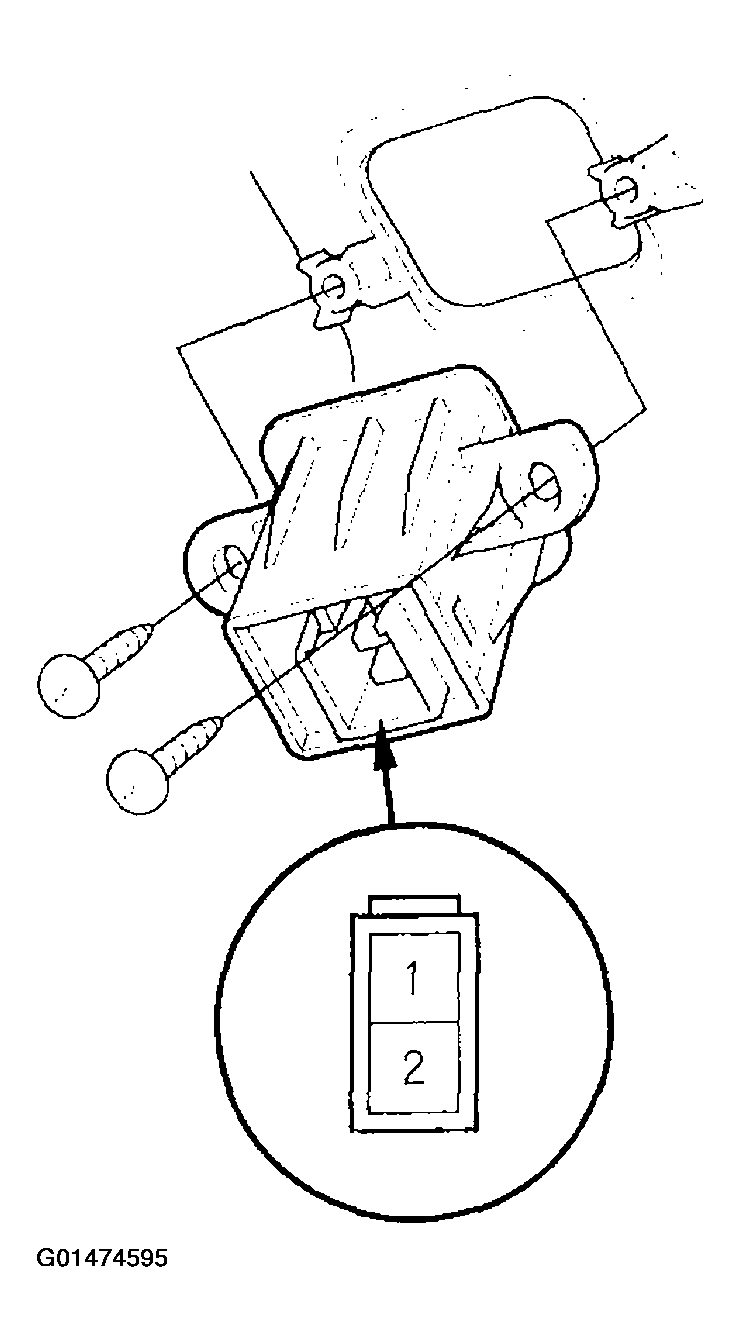

    Fig 1: Disconnecting 2-Pin Connector From Opener Switch
    G01474595Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the No. 1 and No. 2 terminals.
    • There should be continuity when the opener switch is pushed.
    • There should be no continuity when the opener switch is released.
  4. If the continuity is not as specified, replace the opener switch.
