Turning Angle Inspection

Use commercially available computerized four wheel alignment equipment to measure wheel alignment (caster, camber, toe, and turning angle). Follow the equipment manufacturer's instructions.

1. Turn the front wheel right and left while applying the brake, and check the turning angles of both wheels.

   Turning angle:

   Inward: 34 ° 00 '+/-2 °

   Outward: 29 ° 00' (reference)

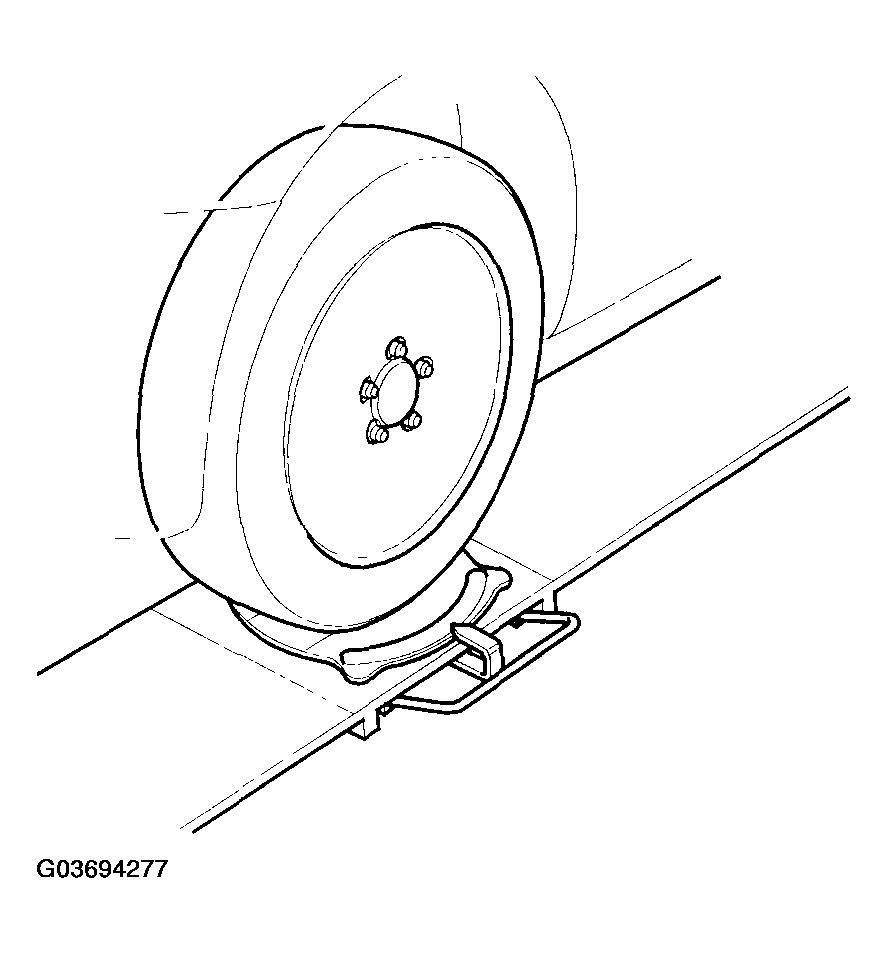

   Fig 1: Inspecting Wheel Turning Angle

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. If the turning angles are out of specification or the inward turning angles differ between the right and left, check the toe, and adjust accordingly.
3. If the toe adjustment is correct but the turning angles are out of specification, check for bent or damaged suspension components.
