Intermittent Hesitation During Hard Acceleration (04-073)
Publication date: 2004-12-03Reference number: 04-073
INTERMITTENT HESITATION DURING HARD ACCELERATION
TECHNICAL SERVICE BULLETIN
Reference Number(s): 04-073, Date of Issue:
December 3, 2004
| HONDA: | 2000-2005 S2000 |
| CATEGORY: | Engine Electrical |
| APPLIES To: | 2000-04 S2000 - ALL, 2005 S2000 - From VIN JHMAP2...5S000001 thru JHMAP2...5S000192 |
SYMPTOM
Engine hesitation at high rpm.
PROBABLE CAUSE
During hard acceleration, engine vibrations may cause shifting of the contacts at the MAP sensor. This may cause wear that changes the resistance of the connection at the MAP sensor.
CORRECTIVE ACTION
Replace the MAP sensor, and install the MAP sensor holder.
PARTS INFORMATION
MAP Sensor and Holder Kit:
- P/N 06176-PCX-000, H/C 7868599
Tie Wrap:
- P/N 32125-PCX-003, H/C 7868607
NOTE:
One tie wrap is included in the MAP sensor and holder kit. A replacement tie wrap is needed only if the MAP sensor is disconnected during a later repair.
WARRANTY CLAIM INFORMATION
In warranty: The normal warranty applies.
| Operation Number: | 121155 |
| Flat Rate Time: | 0.2 hour |
| Failed Part: | P/N 37830-PAA-S00 H/C 5430319 |
| Defect Code: | 06401 |
| Symptom Code: | 09202 |
| Skill Level: | Repair Technician |
Out of warranty: Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Parts and Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.
REPAIR PROCEDURE
- Disconnect the plug from the MAP sensor, and remove the two screws.
- Install the new MAP sensor, and reconnect the connector.

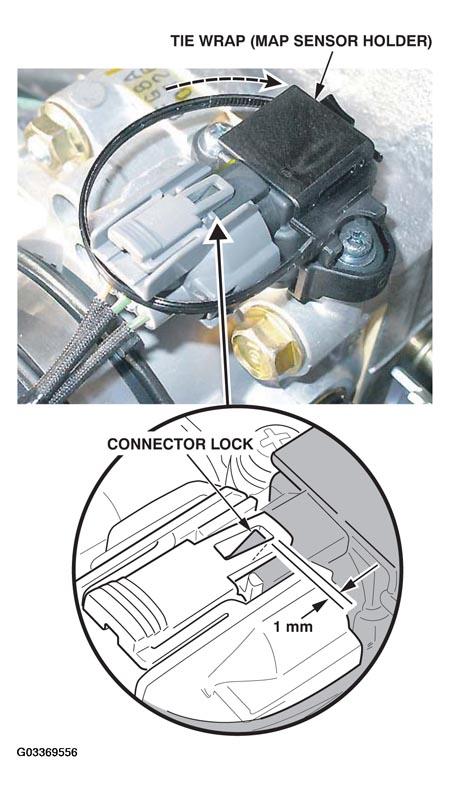

- Route the tie wrap between the connector lock and the wires, and tighten until the connector lock shows a 1 mm gap.
