Special Tools Required

KTC trim tool set SOJATP2014*

*Available through the American Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to scratch the front seat and related parts.

Remove these items:
- Center console (see CENTER CONSOLE REMOVAL/INSTALLATION )
- Rear tray (see TRIM REMOVAL/INSTALLATION - REAR TRAY AREA )
- Roll bar lower trim, both sides (see TRIM REMOVAL/INSTALLATION - SEAT SIDE AREA )
Remove the rear console as shown below.
Install the rear console in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Make sure the connectors are plugged in properly.
- Push the clips into place securely.

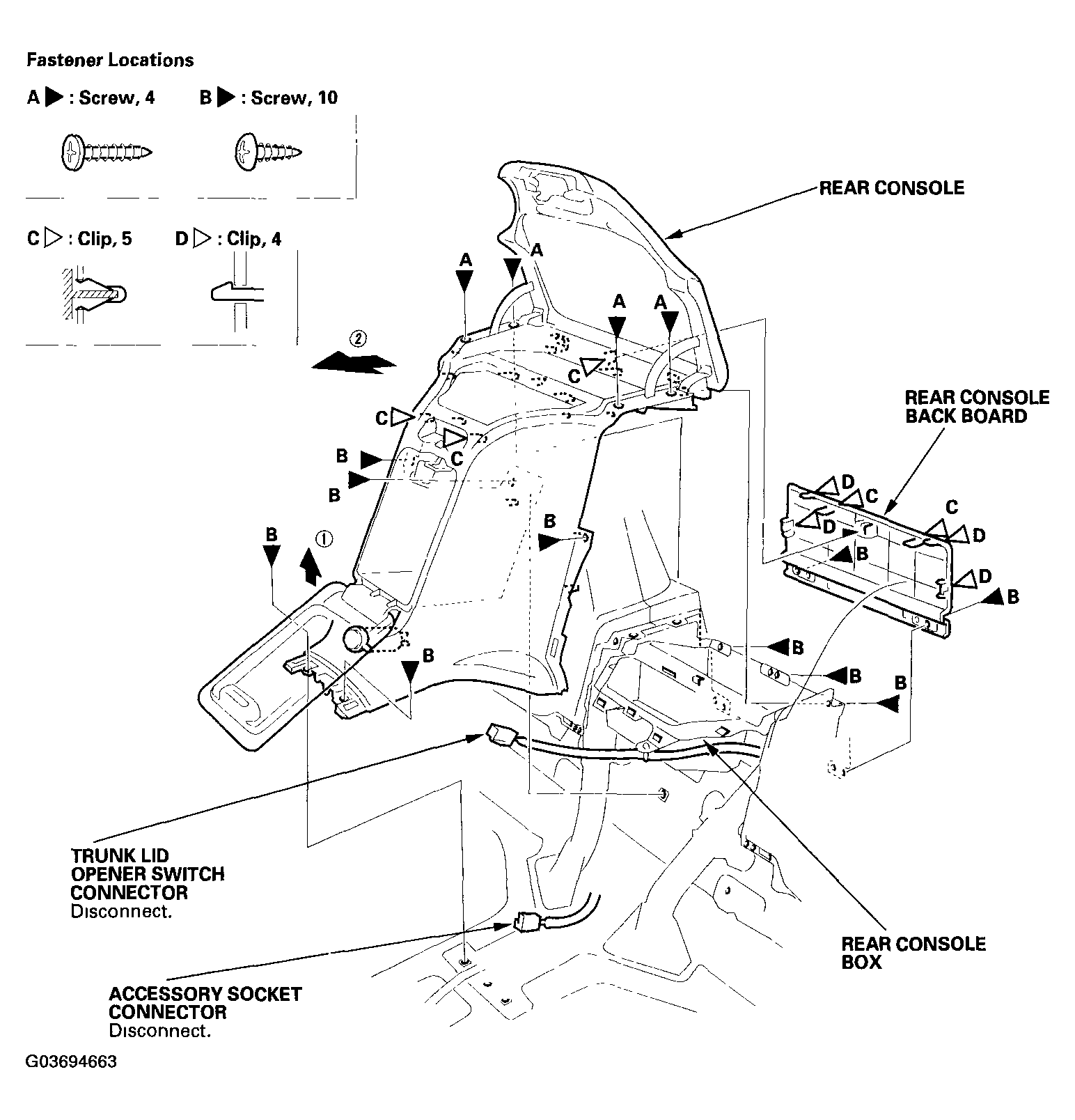

  Fig 1: Identifying Rear Console
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
