Removal & Installation: Auto-TENSIONER: Replacement

1. Remove the alternator/compressor belt. See ALTERNATOR/COMPRESSOR BELT .
2. Remove the auto-tensioner. See Fig 1 (1999-2001 models) or Fig 2 (2002-04 models).
3. Clean the tensioner and pivot bolt "A" and clean the threads of the pivot bolt hole "B" with a tap. See Fig 3 (2002-04 models).
4. Install the auto-tensioner in the reverse order of removal (1999-2001 models).
5. Install the auto-tensioner and tighten the mounting bolt "C". Screw the pivot bolt in by hand until it is finger-tight (2002-04 models).
6. After tightening, tighten the pivot bolt in two steps (45° per step). See Fig 4 (2002-04 models).

   Specified Torque:  64 N*m (6.5 kgf*m, 47 lbf*ft)

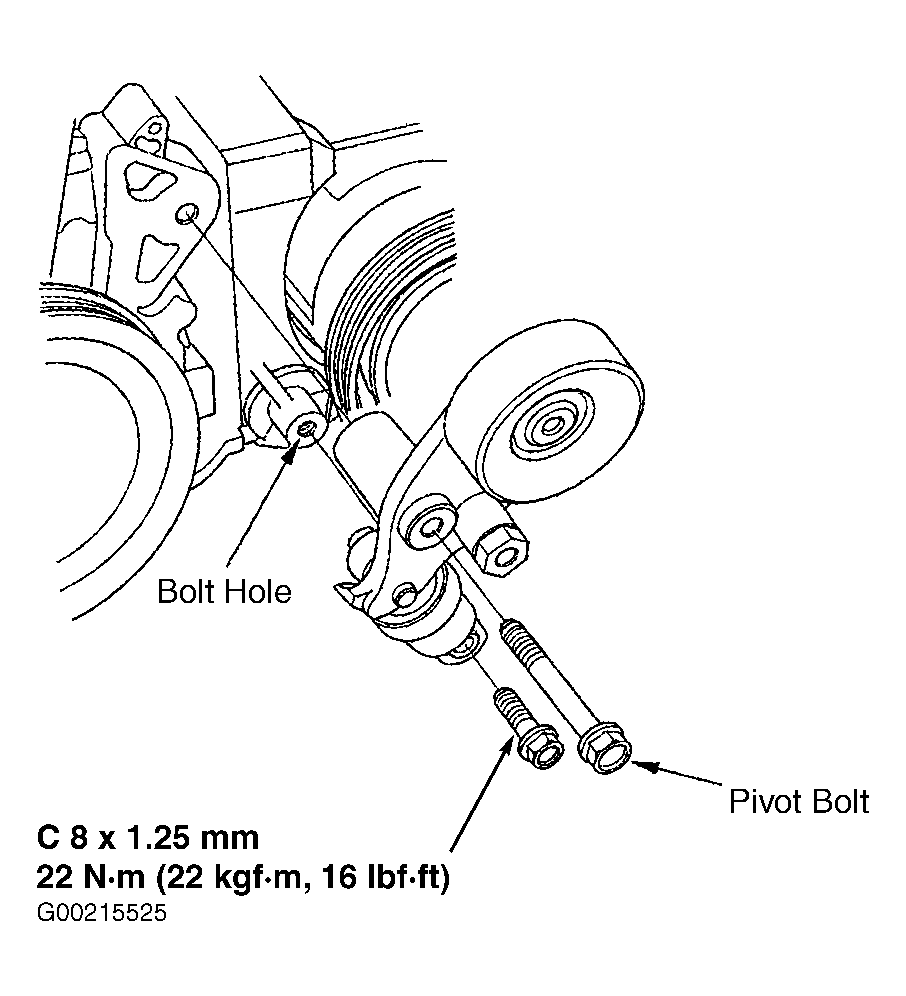

Fig 1: Removing/Installing Auto-Tensioner (1999-2001 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

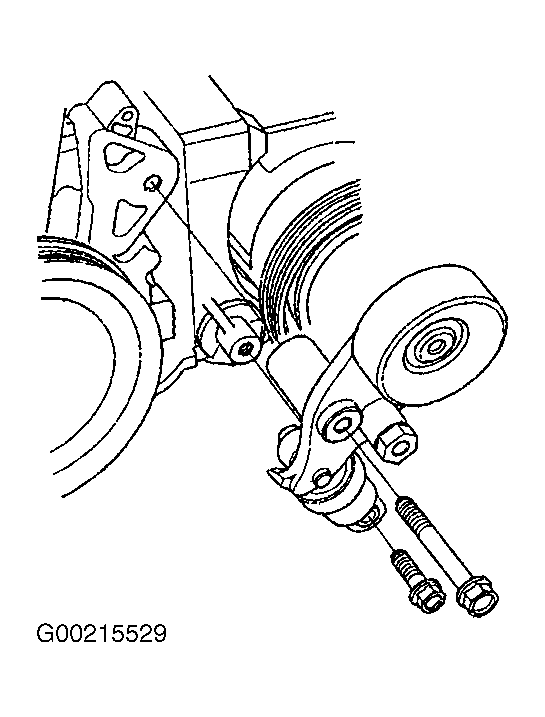

Fig 2: Removing Auto-Tensioner (2002-04 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Identifying Auto-Tensioner Pivot Bolts (2002-04 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

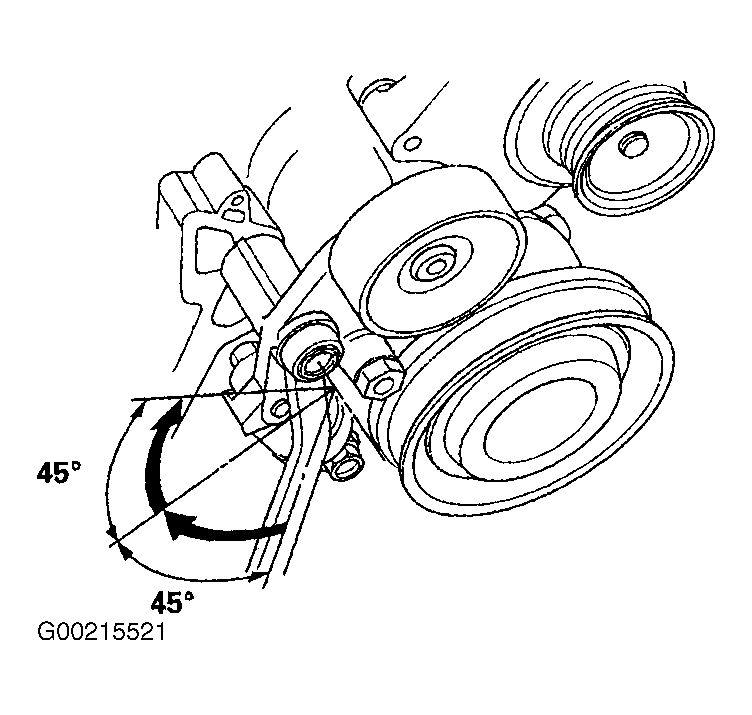

Fig 4: Tightening Pivot Bolt

Courtesy of AMERICAN HONDA MOTOR CO., INC.
