Steering Wheel Removal

NOTE: SRS components are located in this area. Review the SRS component locations, (see AIR BAG RESTRAINTS SYSTEMS article and the precautions and procedures in the SRS before performing repairs or service.

Align the front wheels straight ahead, then remove the driver's airbag assembly from the steering wheel (see AIR BAG RESTRAINTS SYSTEMS article ).
Disconnect the radio remote switch connectors (A) and cruise control switch connector (B).

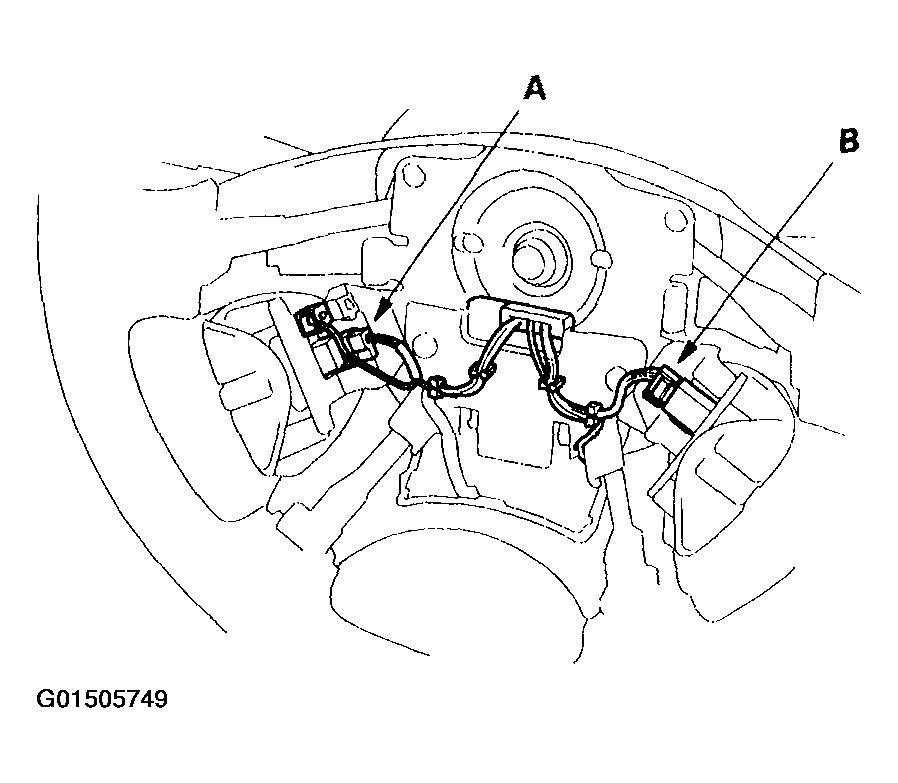

Fig 1: Disconnecting Radio Remote Switch Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the steering wheel nut ('99-01 models) or bolt ('02-04 models). Install a steering wheel puller (A) on the steering wheel (B). Free the steering wheel from the steering column by turning the pressure bolt (C) of the puller.
Note these items when removing the steering wheel:
- Do not tap on the steering wheel or the steering column shaft when removing the steering wheel.
- If you thread the puller bolts (D) into the wheel hub more than five threads, the bolts will hit the cable reel and damage it. To prevent this, install a pair of jam nuts five threads up on each puller bolt.

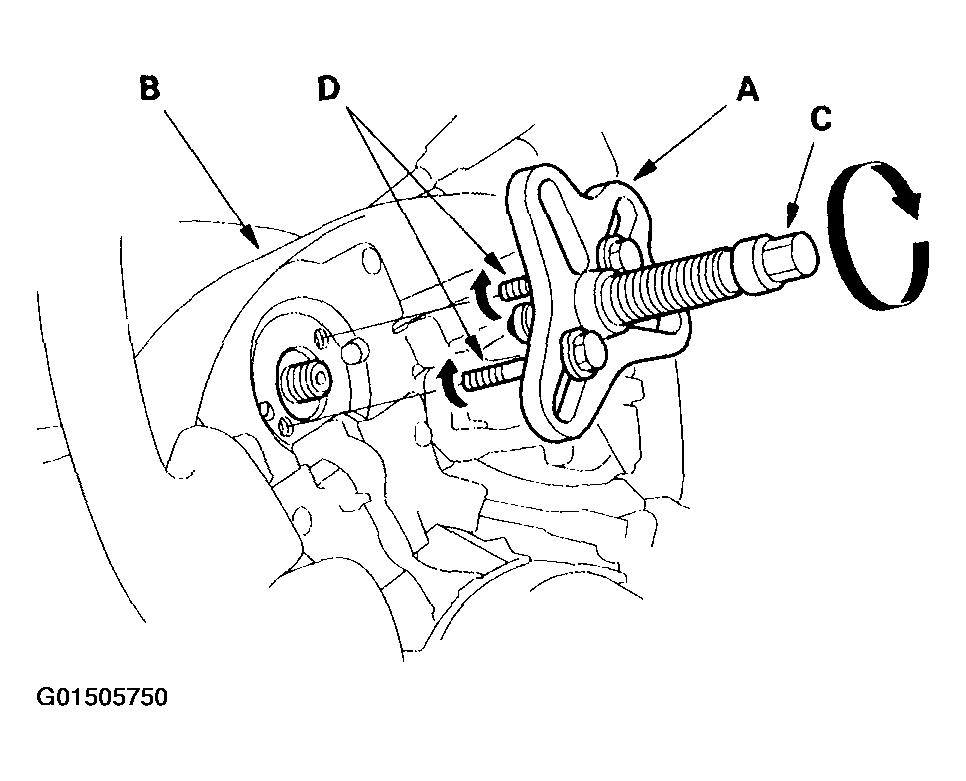

Fig 2: Installing Steering Wheel Puller On Steering Wheel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the steering wheel puller, then remove the steering wheel from the steering column.

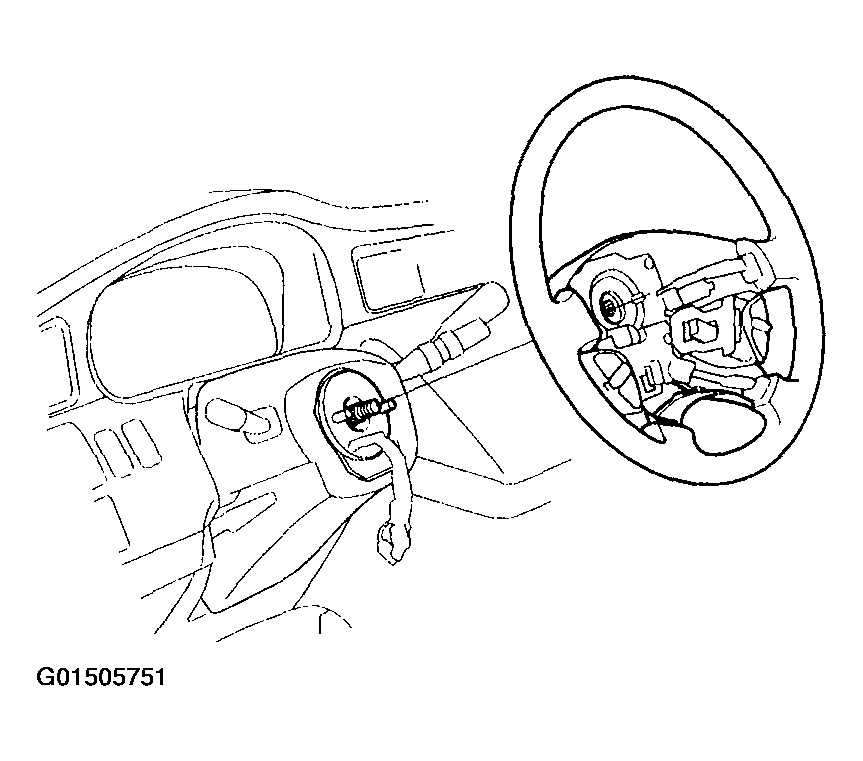

Fig 3: Removing Steering Wheel Puller
Courtesy of AMERICAN HONDA MOTOR CO., INC.
