Honda
>>
2002
>>
Odyssey EX
>>
Repair and Diagnosis
>>
Steering
>>
Steering Column
>>
Power Steering System
>>
Fluid leakage Inspection
Fluid leakage Inspection

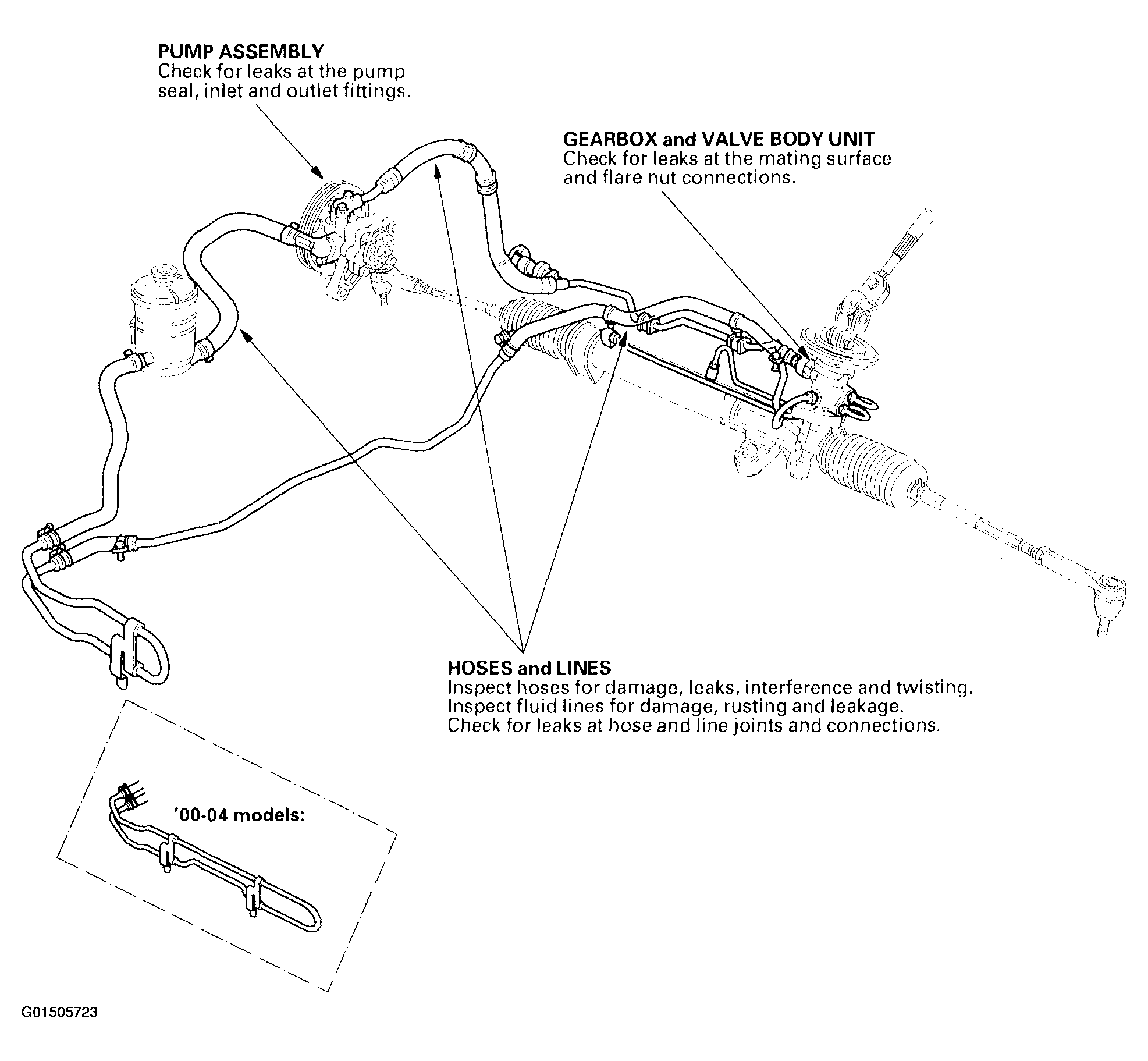

Fig 1: Identifying Fluid Leakage Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
