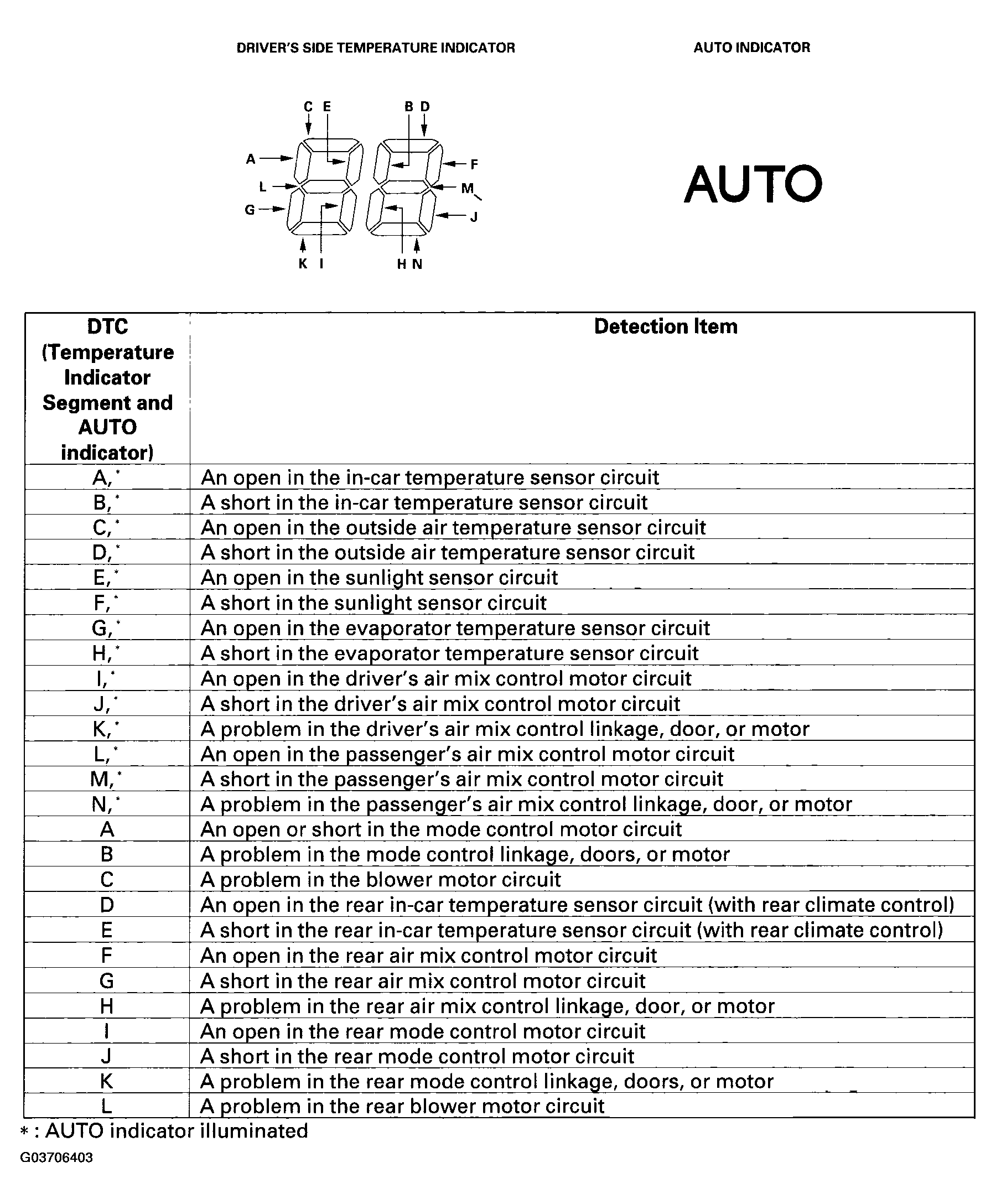

Checking DTCs by DTC Indicator
WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Before troubleshooting the climate control system, refer to B-CAN System Diagnosis Test Mode A Troubleshooting (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A
).
To retrieve the DTC, you must run the self-diagnostic function. In the case of multiple problems, the respective indicator segments will come on. If indicator segments A, C, D, E, F, G, I, L, N and AUTO indicator come on at the same time, there may be an open in the common ground wire.
