Blower Unit Component Replacement
WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
Note these items when overhauling the blower unit:

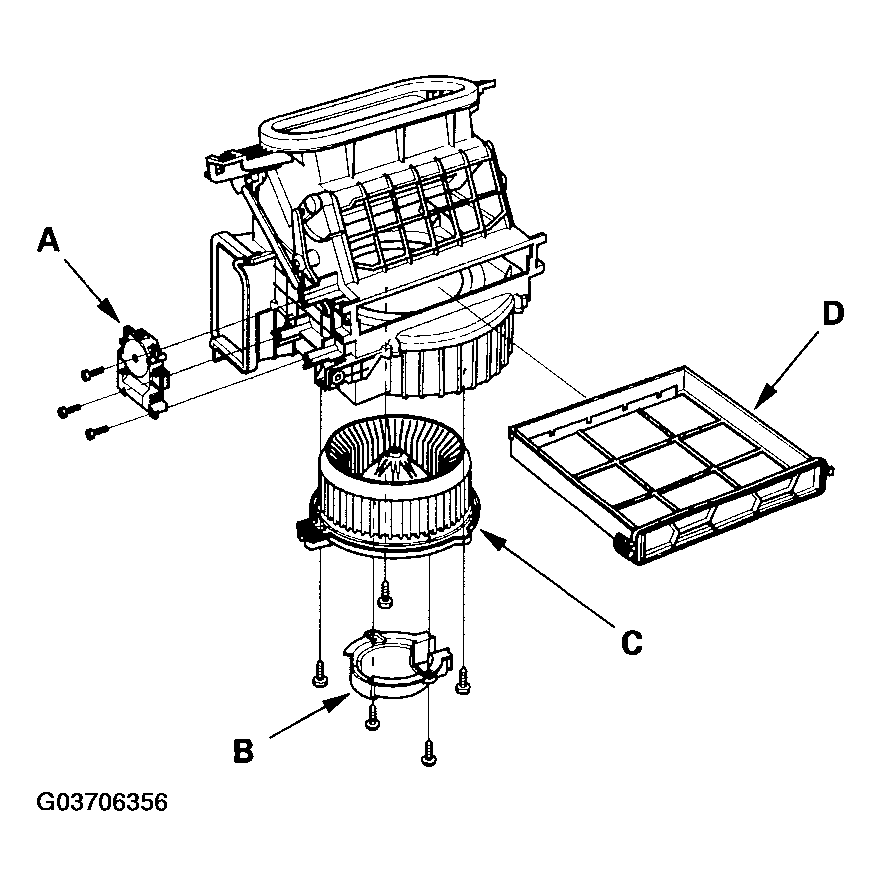

- The recirculation control motor (A), the blower motor cover (B), blower motor (C) and the dust and pollen filter housing (D) can be replaced without removing the blower unit.
- Before reassembly, make sure that the recirculation control linkage and doors move smoothly without binding.
- After reassembly, make sure the recirculation control motor runs smoothly (see RECIRCULATION CONTROL MOTOR TEST ).
