For Some Models

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a clip remover, detach the clips, then release the hood insulator (A) from the hooks (B). Take care not to bend the insulator and not to scratch the hood.

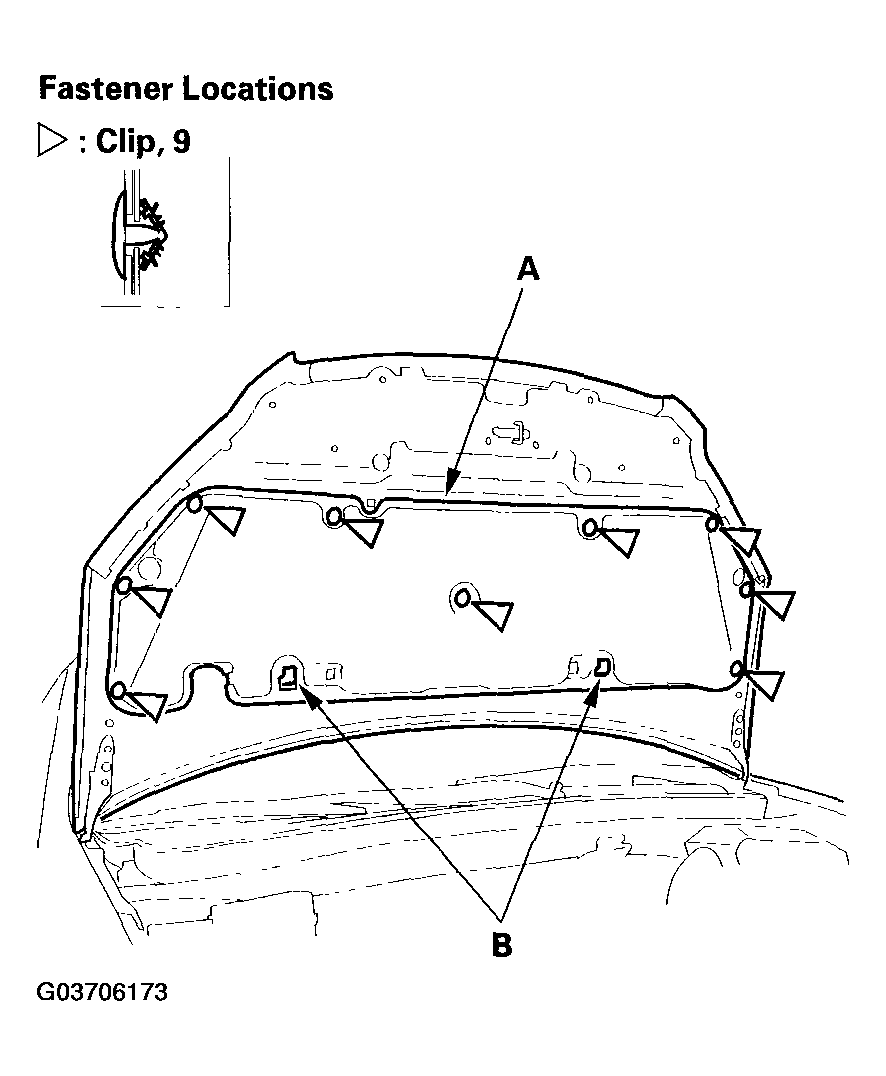

    Fig 1: Releasing Hood Insulator From Hooks
    G03706173Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the insulator in the reverse order of removal, and note these items:
    • Check the clips for damage or stress-whitening, and replace them with new one.
    • Push the clips into place securely.
