Sliding Door Guide Pin Replacement
WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

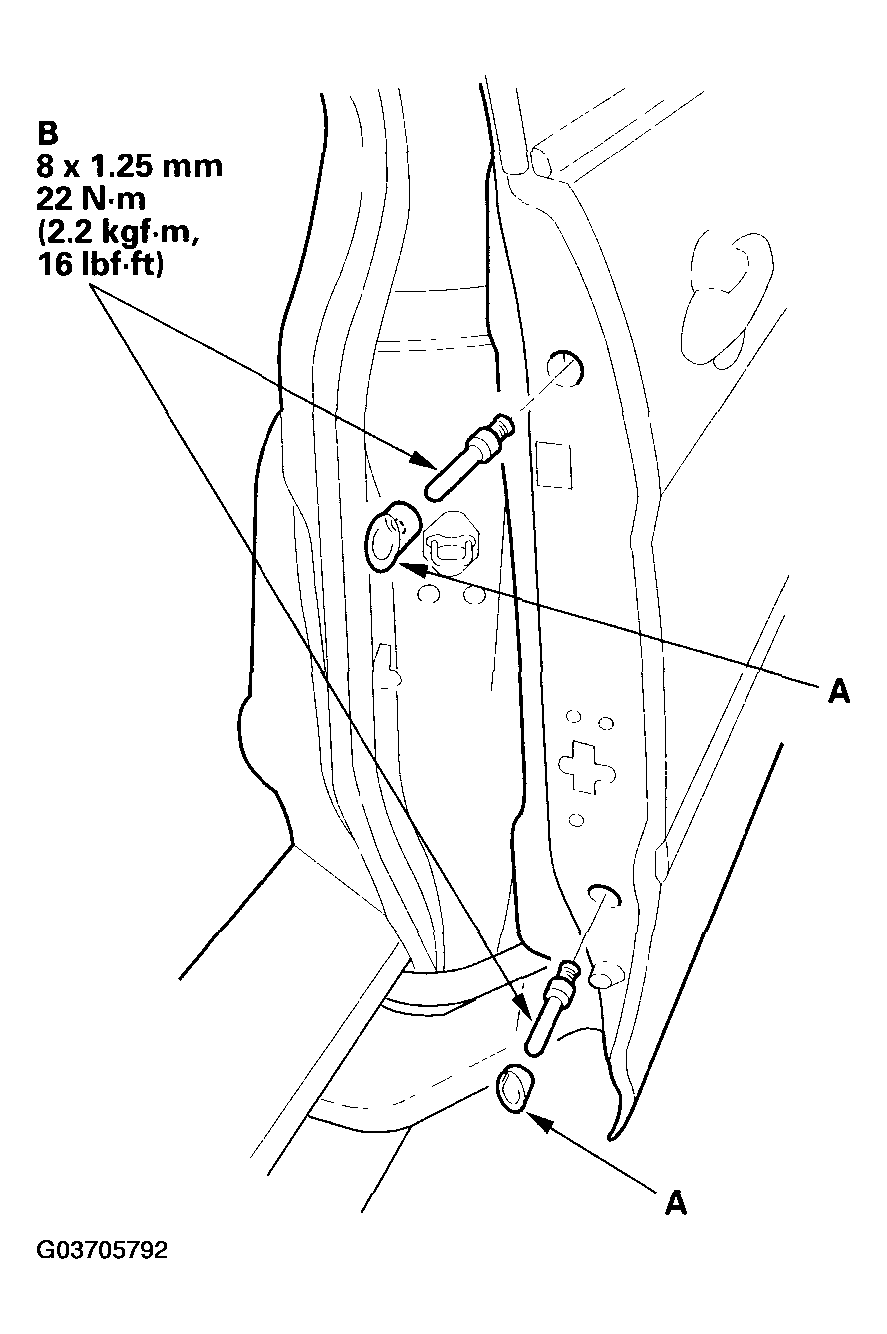

- Remove the guide pin covers (A), then remove the guide pins (8).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the guide pins in the reverse order of removal. Apply liquid thread lock to the threads of the guide pins before reinstallation.
