Parking Brake Switch Test
WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

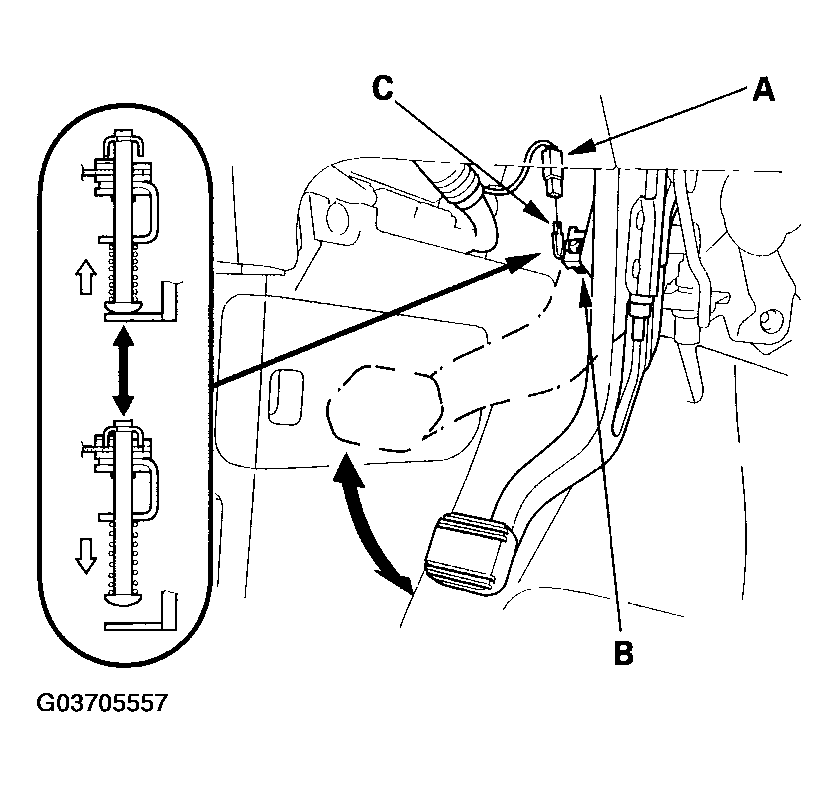

- Disconnect the parking brake switch connector (A) from the parking brake switch (B).
- Check for continuity between the positive terminal (C) and body ground.
- With the parking brake pedal pressed, there should be continuity.
- With the parking brake pedal released, there should be no continuity.
NOTE:- If both the ABS/VSA indicator and the brake system indicator come on at the same time, check the VSA first.
- If the parking brake switch/fluid level switch is OK, but the brake system indicator does not function, check the VSA.
