Parking Brake Shoe Replacement: Disassembly

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Raise the rear of the vehicle, and support it with safety stands in the proper locations (see SAFETY STANDS ).
Remove the rear wheels.
Release the parking brake, and remove the rear brake caliper and brake disc/drum in brake disc (see KNUCKLE/HUB BEARING UNIT REPLACEMENT ).

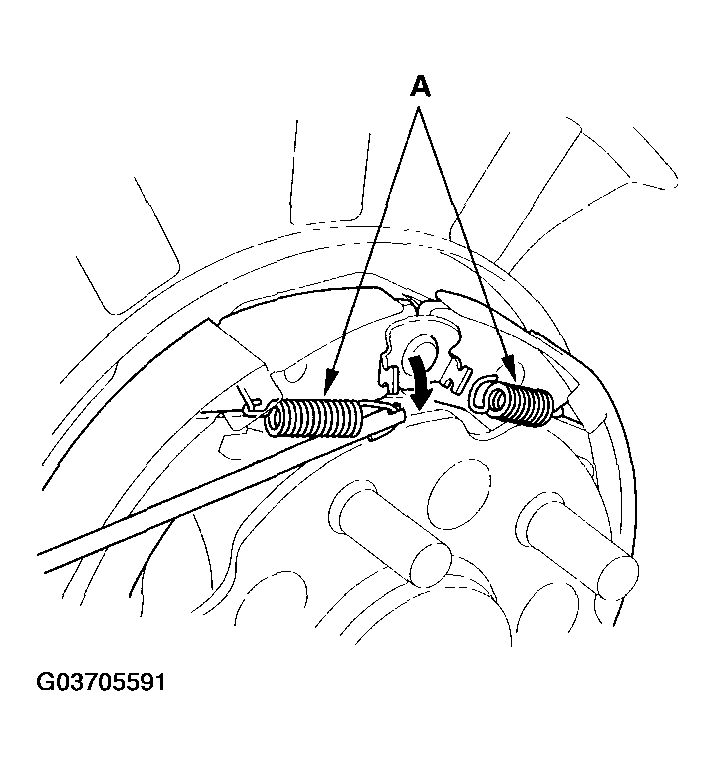

Disconnect and remove the upper return springs (A).

Fig 1: Removing Upper Return Springs
Courtesy of AMERICAN HONDA MOTOR CO., INC.

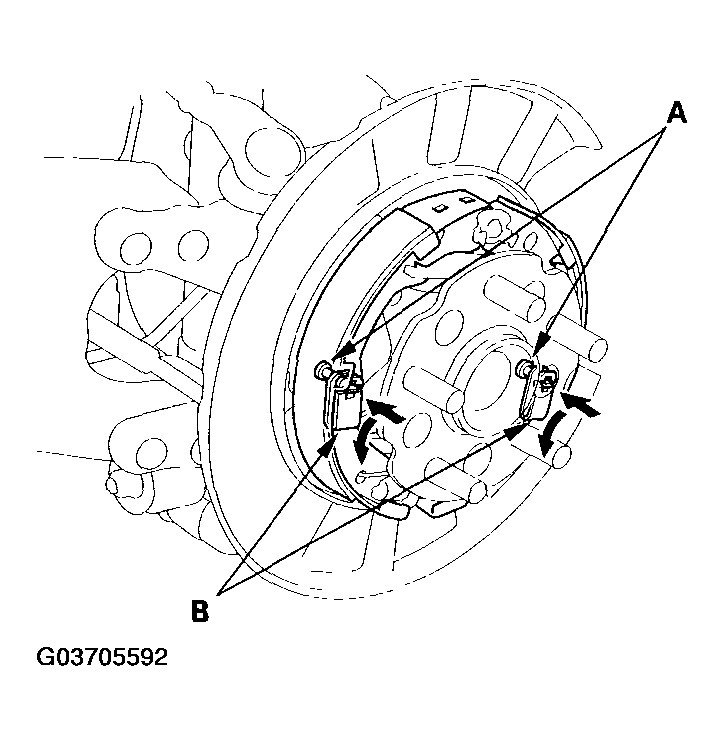

Remove the tension pins (A) by pushing and turning the retainer springs (B).

Fig 2: Removing Tension Pins
Courtesy of AMERICAN HONDA MOTOR CO., INC.

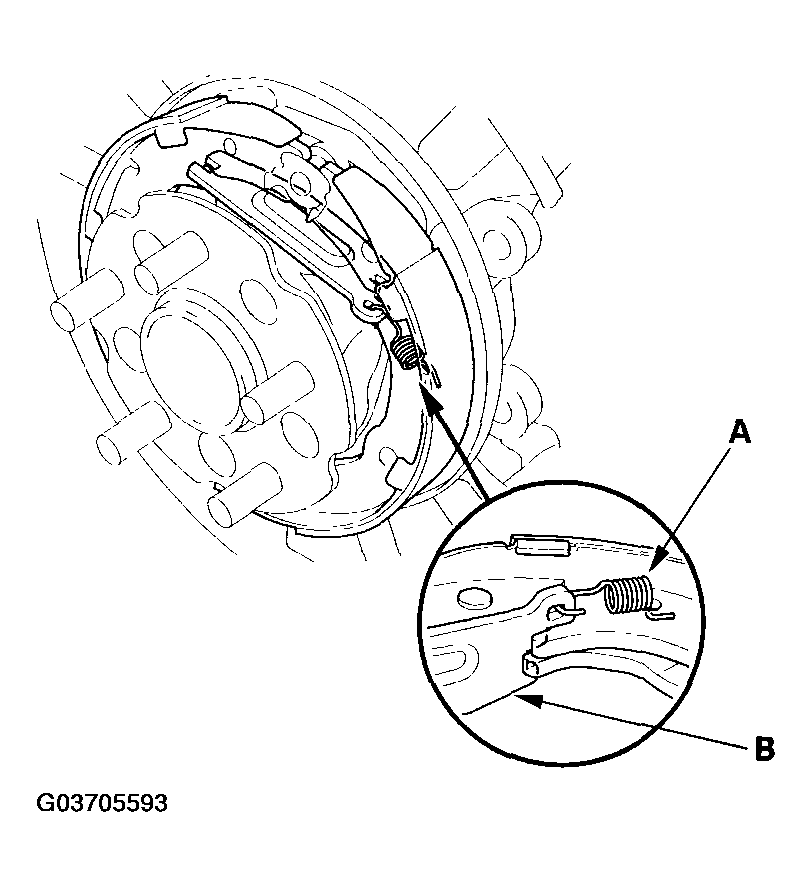

Disconnect the rod spring (A), and remove the connecting rod (B).

Fig 3: Removing Connecting Rod Spring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Lower the parking brake shoe assembly.

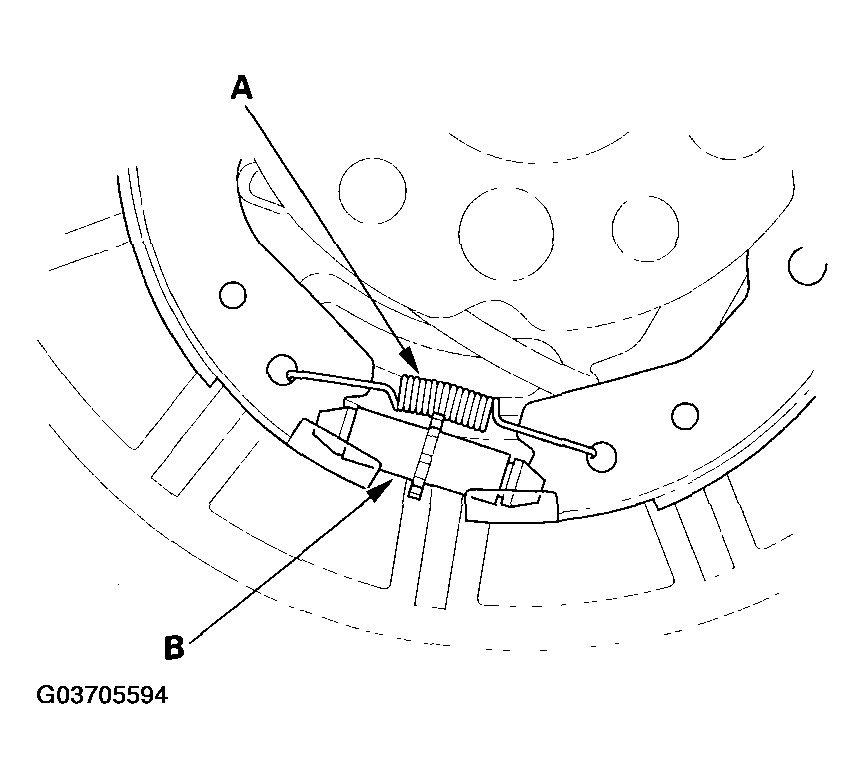

Remove the forward brake shoe by removing the lower return spring (A) and adjuster assembly (B).

Fig 4: Removing Forward Brake By Removing Lower Return Spring And Adjuster Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.

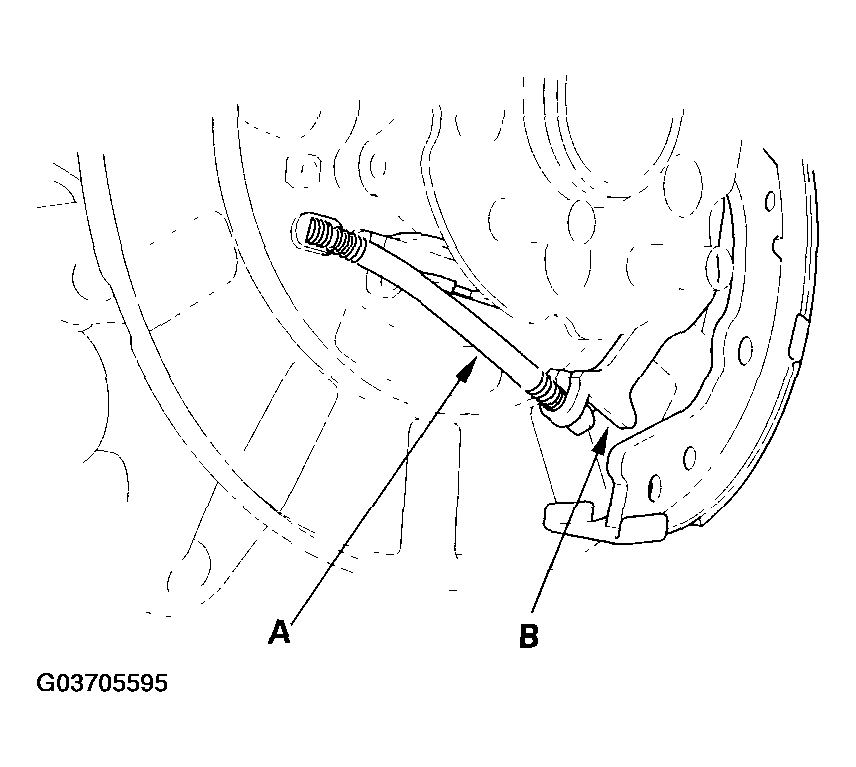

Remove the rearward brake shoe by disconnecting the parking brake cable (A) from the parking brake lever (B).

Fig 5: Removing Rearward Brake Shoe By Disconnecting Parking Brake Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.

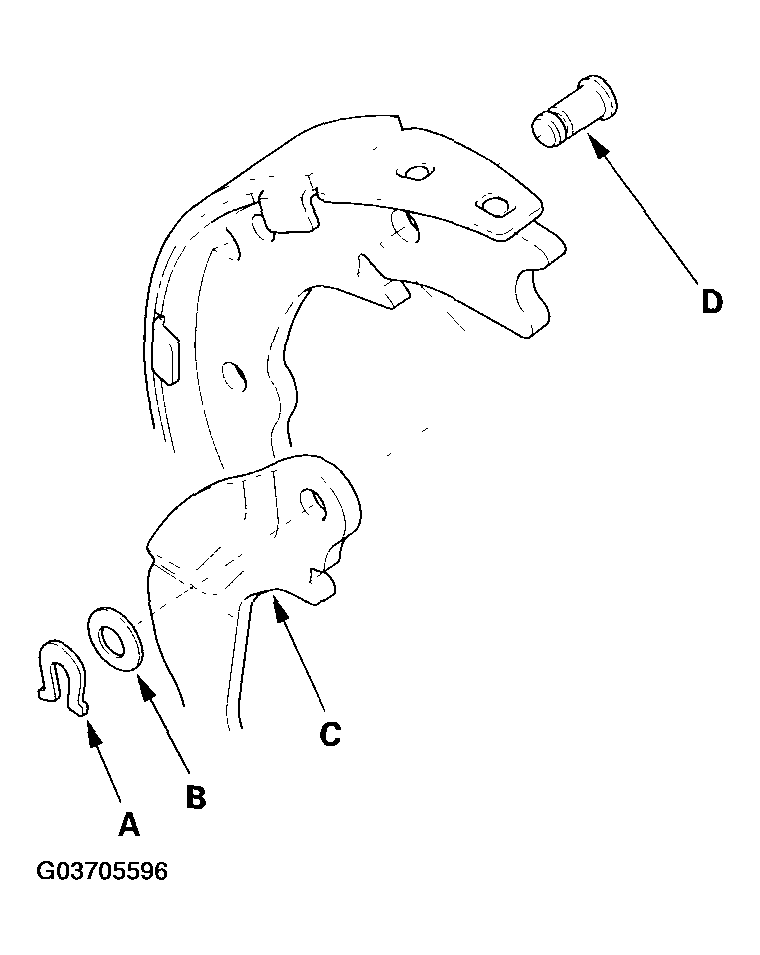

Remove the U-clip (A), wave washer (B), parking brake lever (C), and pivot pin (D) from the brake shoe.

Fig 6: Removing U-Clip, Wave Washer, Parking Brake Lever And Pivot Pin
Courtesy of AMERICAN HONDA MOTOR CO., INC.
