Front Brake Pad Inspection and Replacement: Inspection

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Raise the front of the vehicle, and support it with safety stands in the proper locations (see SAFETY STANDS ).
Remove the front wheels.
Check the thickness of the inner pad (A) and outer pad (B). Do not include the thickness of the backing plate.
Brake pad thickness:
- Standard: 11.0-12.0 mm (0.43-0.47 in.)
- Service limit: 1.6 mm (0.06 in.)

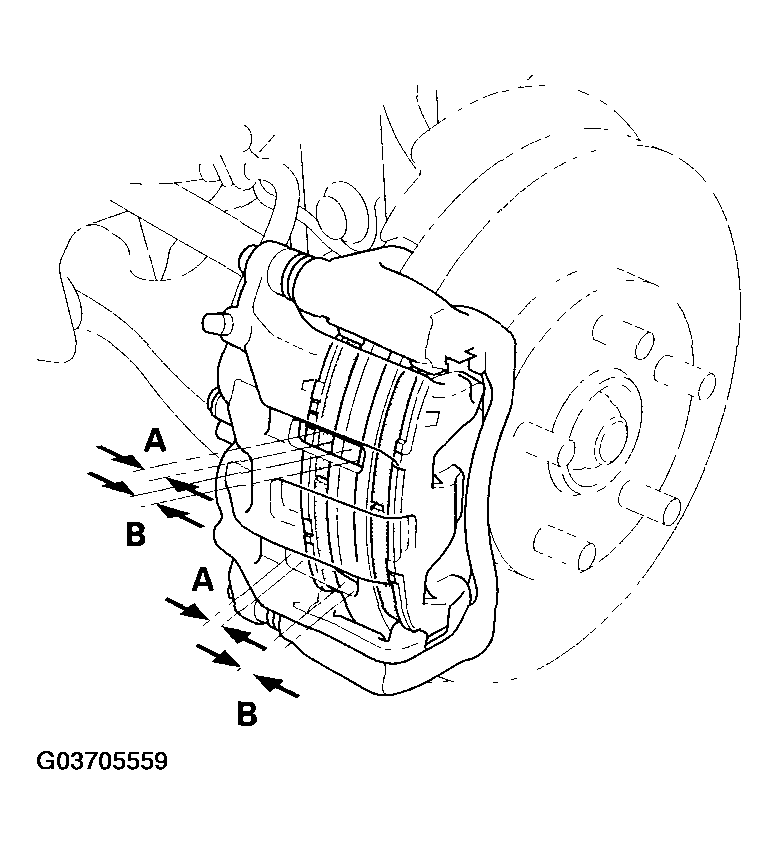

Fig 1: Checking Thickness Of Inner And Outer Pad
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the brake pad thickness is less than the service limit, replace the brake pads as a set.
