Brake Pedal Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lock pin (A) and joint pin (B).

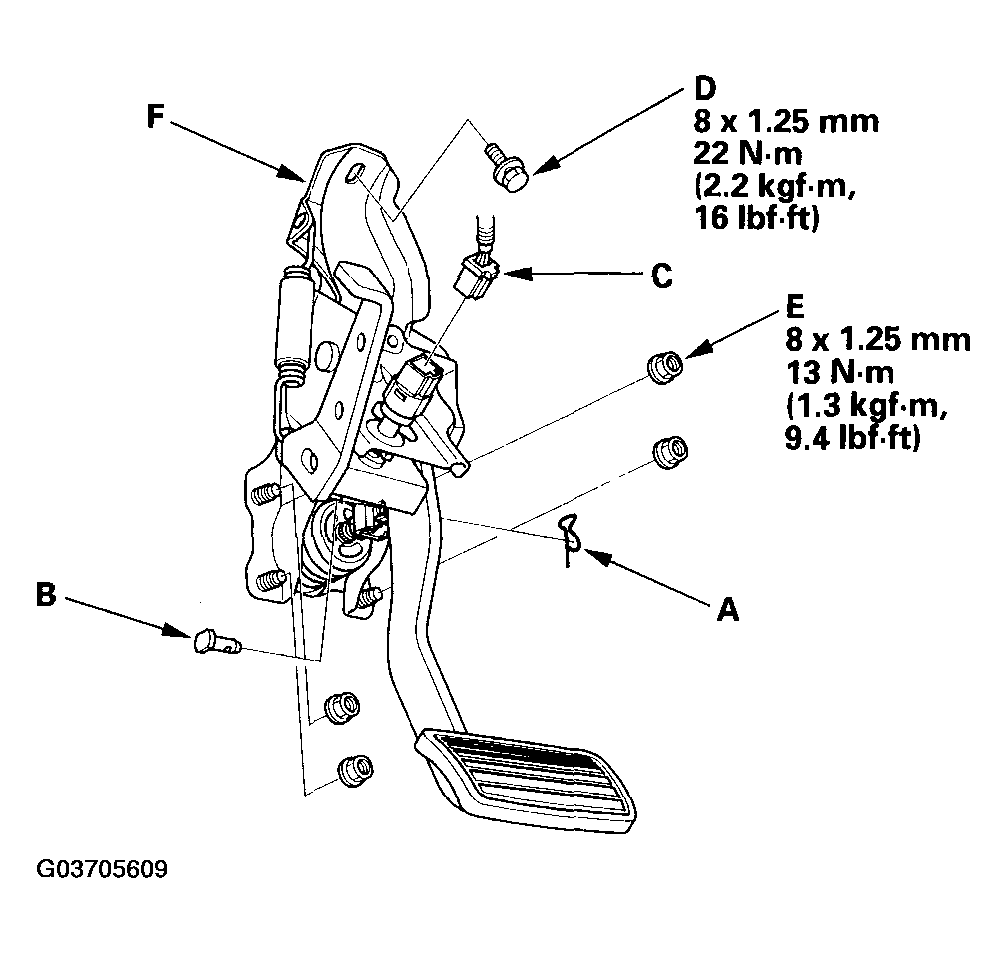

    Fig 1: Removing Lock Pin And Joint Pin
    G03705609Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the brake pedal position switch connector (C).
  3. Remove the brake pedal bracket mounting bolt (D) and nuts (E).
  4. Remove the brake pedal with bracket (F).
  5. Install in the reverse order of removal.
  6. Do the brake pedal and brake pedal position switch adjustment (see BRAKE PEDAL AND BRAKE PEDAL POSITION SWITCH ADJUSTMENT  ).
