Brake Hose and Line Inspection

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the brake hoses for damage, deterioration, leaks, interference, and twisting.
  2. Check the brake lines for damage, rusting, and leaks. Also check for bent brake lines.
  3. Check for leaks at hose and line joints and connections, and retighten if necessary.
  4. Check the master cylinder and VSA modulator-control unit for damage and leaks.
    NOTE: Replace the brake hose clip whenever the brake hose is serviced.

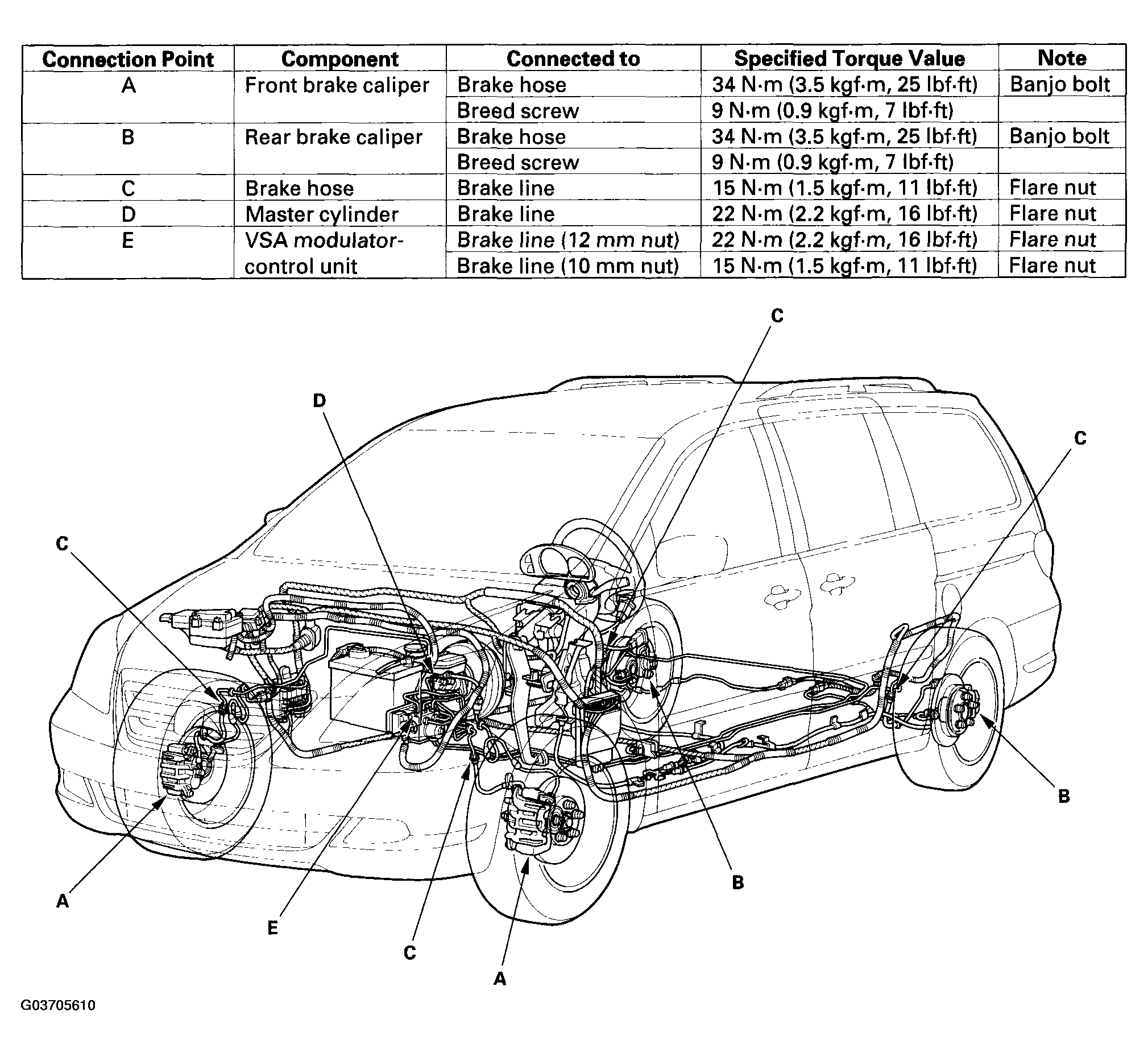

    Fig 1: Inspecting Brake Hose And Line
    G03705610Courtesy of AMERICAN HONDA MOTOR CO., INC.
