Stabilizer Bar Replacement

Special Tools Required

Front subframe adapter VSB02C000016

1. Raise the front of the vehicle, and support it with safety stands in the proper locations (see SAFETY STANDS ).
2. Remove the front wheels.
3. Disconnect the stabilizer links from the stabilizer bar on the right and left sides (see STABILIZER LINK REMOVAL/INSTALLATION  ).
4. Remove the splash shield (A).

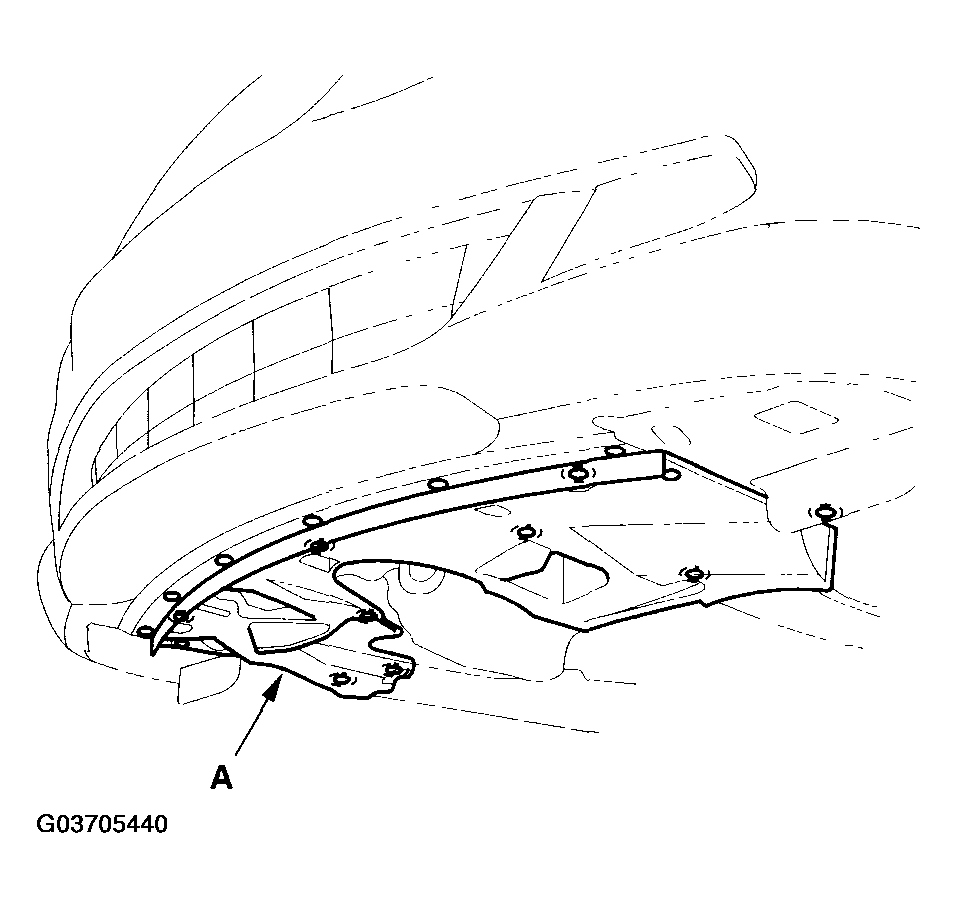

   Fig 1: Removing Splash Shield

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Attach the special tool to the front subframe (A) by hanging the hook of the special tool over the front of the subframe, then tighten the special tool screw.

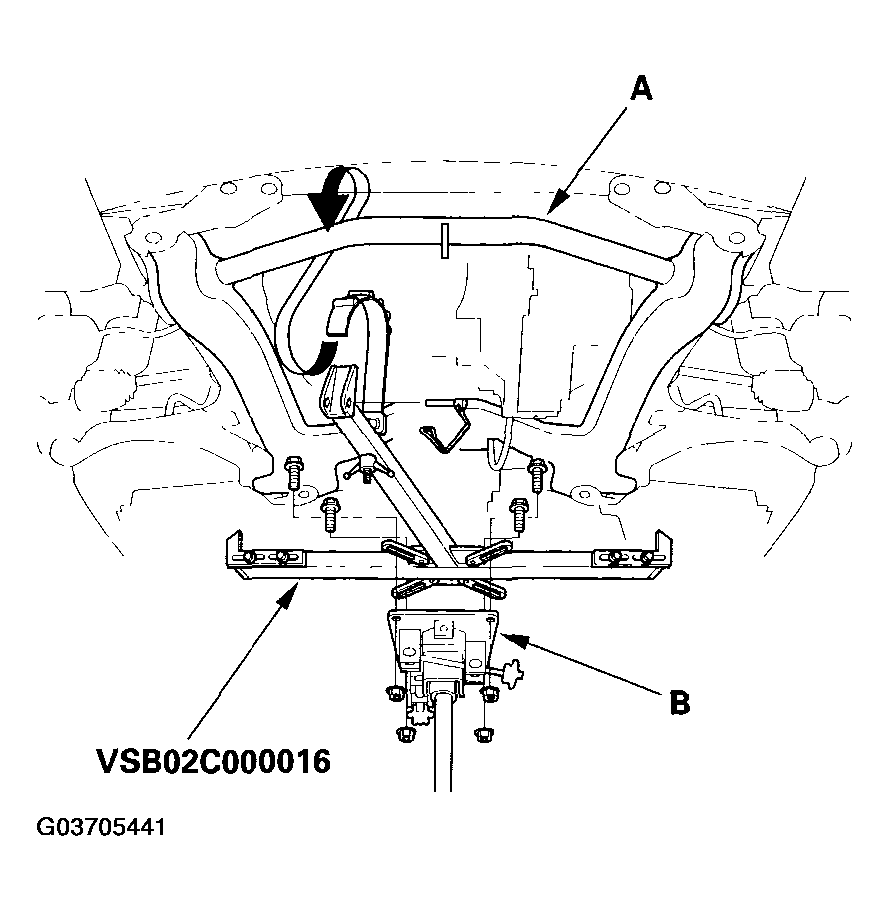

   Fig 2: Attaching Special Tool To Front Subframe

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Raise the jack (B) and line up the slots in the arms with the bolt holes on the corner of the jack base, then attach them with bolts securely.
7. Loosen the front subframe front bracket (A) mounting bolts on the right and left of the vehicle so they are about 14 mm (9/16 in.) from the mounting surface.

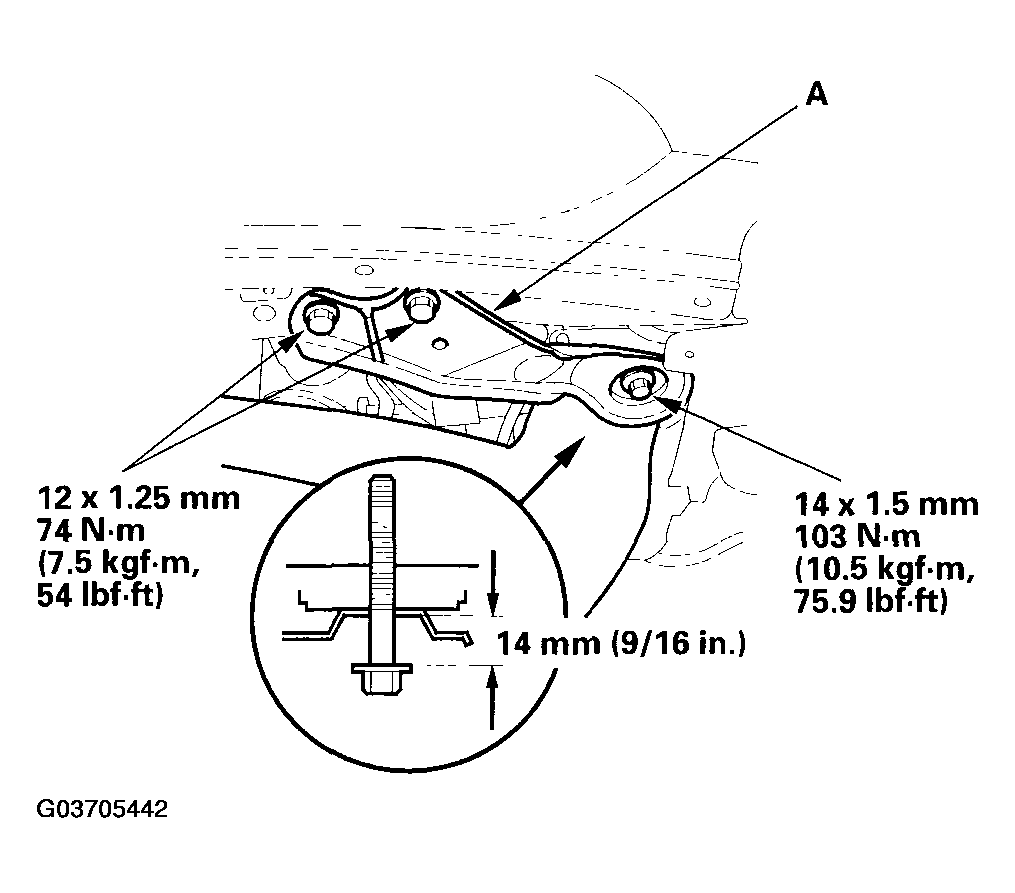

   Fig 3: Loosening Front Subframe Front Bracket Mounting Bolts

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Support the front subframe securely by raising the special tool, then remove the two 12 mm flange bolts (A).

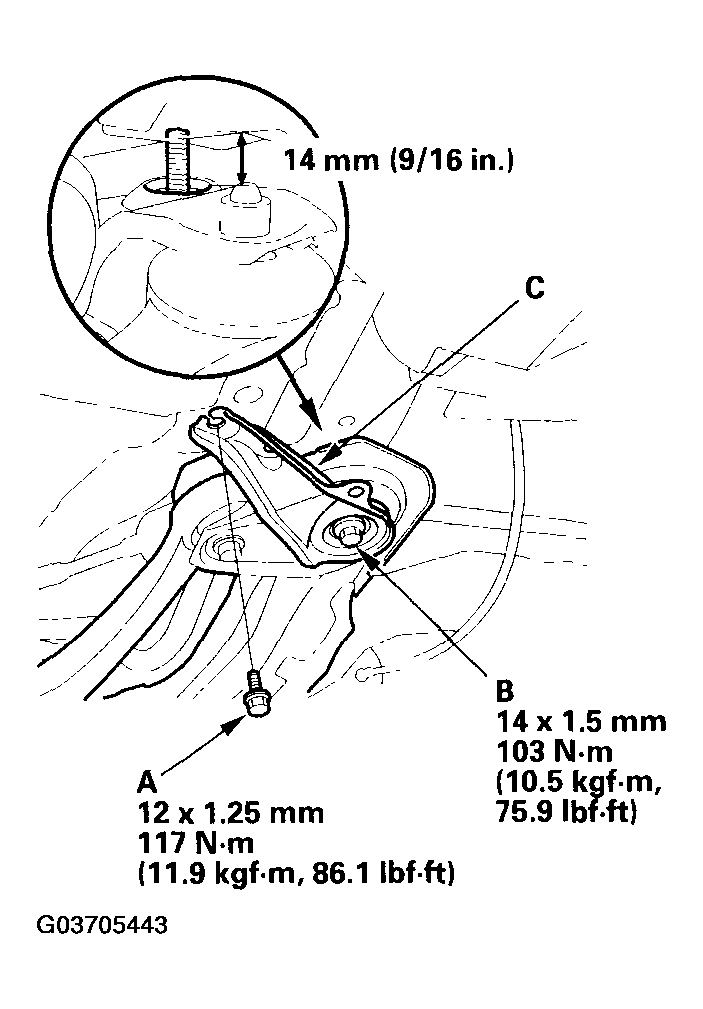

   Fig 4: Removing Flange Bolts

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Loosen the two 14 mm special bolts (B) so they are about 14 mm (9/16 in.) from the mounting surface.
10. Lower the jack supporting the front subframe with the special tool slowly until the front subframe has dropped about 14 mm (9/16 in.).
11. Remove the flange bolts (A) and bushing holders (B), then remove the bushings (C) and the stabilizer bar (D) from the front subframe (E).

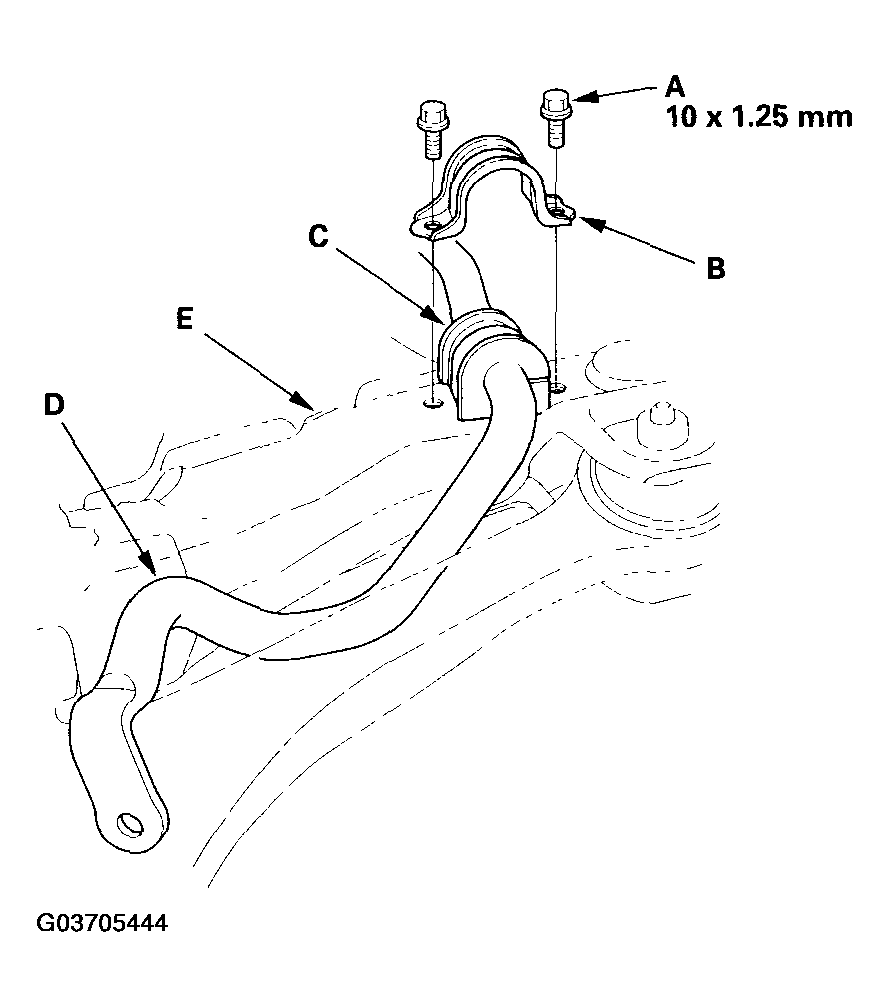

    Fig 5: Removing Flange Bolts And Bushing Holders

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
12. Install the stabilizer bar in the reverse order of removal, and note these items:
    • Note the right and left direction of the stabilizer bar.
    • Align the paint marks (A) on the stabilizer bar with the sides of the bushings (B).
    • Note the fore/aft direction of the bushing holders.
    • Raise the front subframe up with the jack and special tool until it contacts the body frame (see SUBFRAME REPLACEMENT ), then tighten the mounting bolts to the specified torque.
    • Refer to Stabilizer Link Removal/Installation to connect the stabilizer bar to the links (see STABILIZER LINK REMOVAL/INSTALLATION  ).
    • Do the front toe inspection, and adjust it if necessary (see WHEEL ALIGNMENT ).

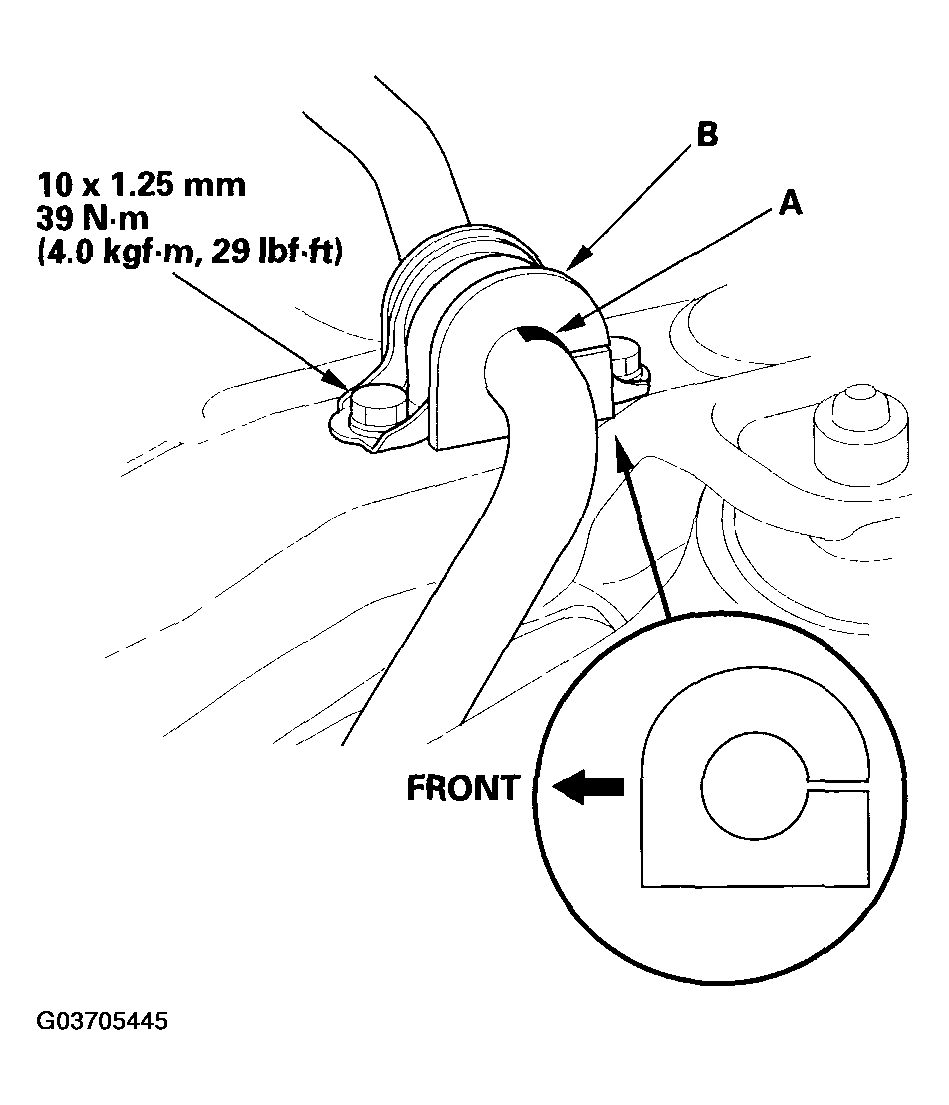

    Fig 6: Installing Stabilizer Bar

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
