Damper/Spring Removal/Installation: Reassembly

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Install all the parts except the self-locking nut onto the damper unit by referring to EXPLODED VIEW . Align the bottom of the spring (A) and the stepped part of the lower spring seat (B).

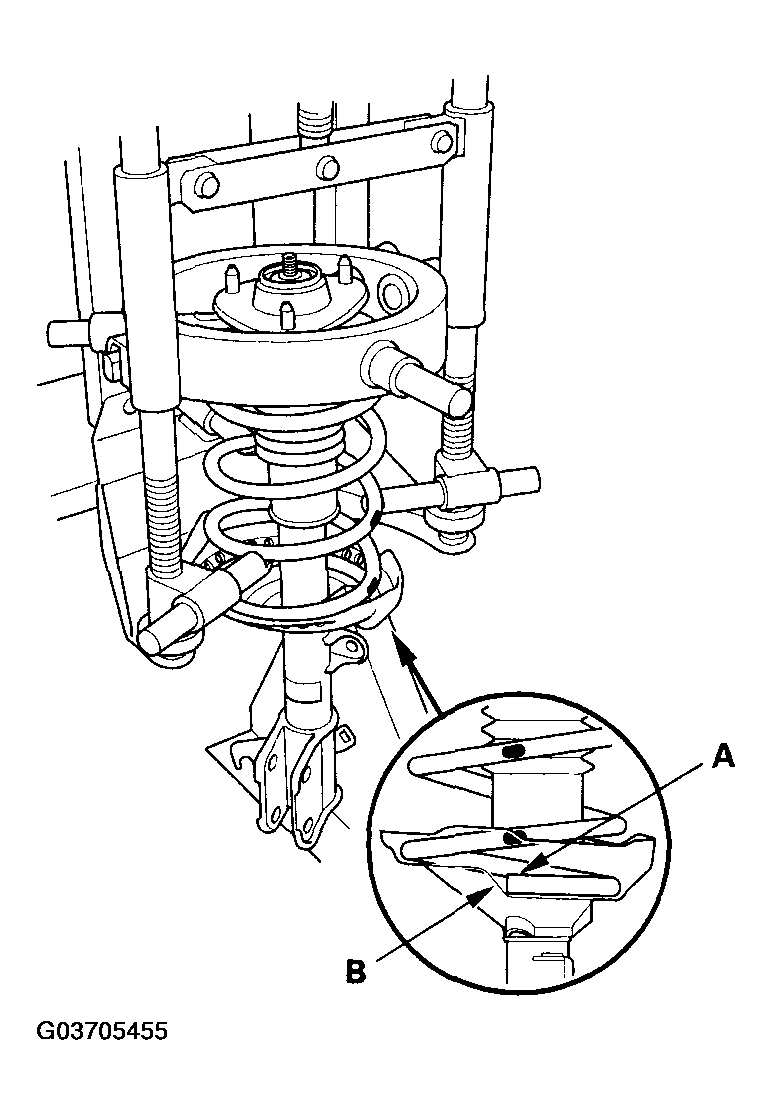

Fig 1: Aligning Bottom Of Spring And Stepped Part Of Lower Spring Seat
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Align the stamp of the upper spring seat (A) and the spring mount rubber (B) as shown in Fig 2 , and then set it on the spring.

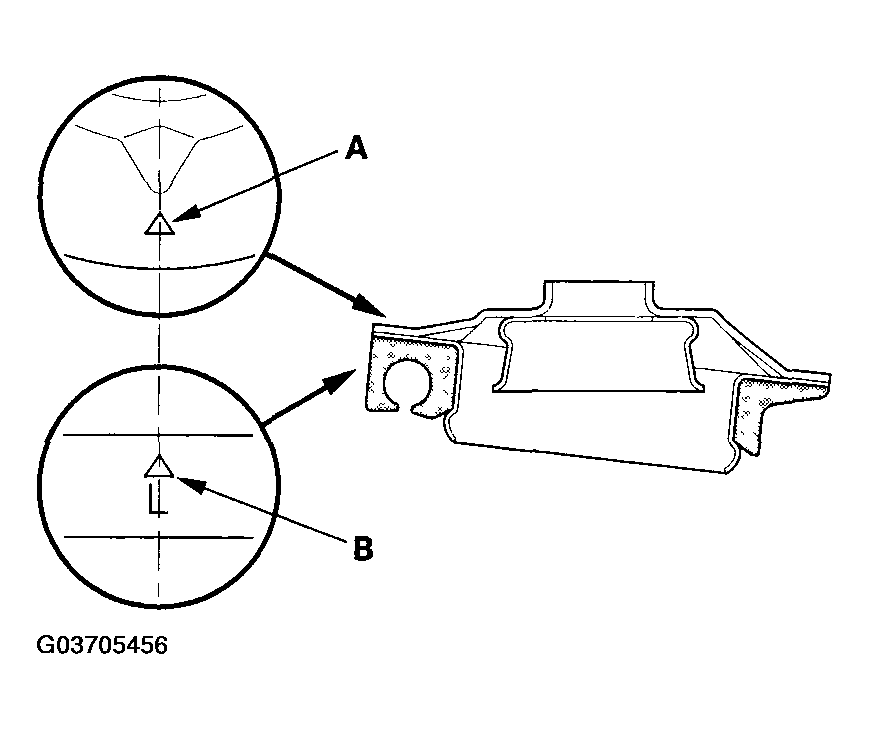

Fig 2: Aligning Stamp Of Upper Spring Seat And Spring Mount Rubber
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Align the stamp (A) on the upper spring seat with the spring mounting cushion as shown in Fig 3 . Install the damper assembly on a commercially available strut spring compressor.

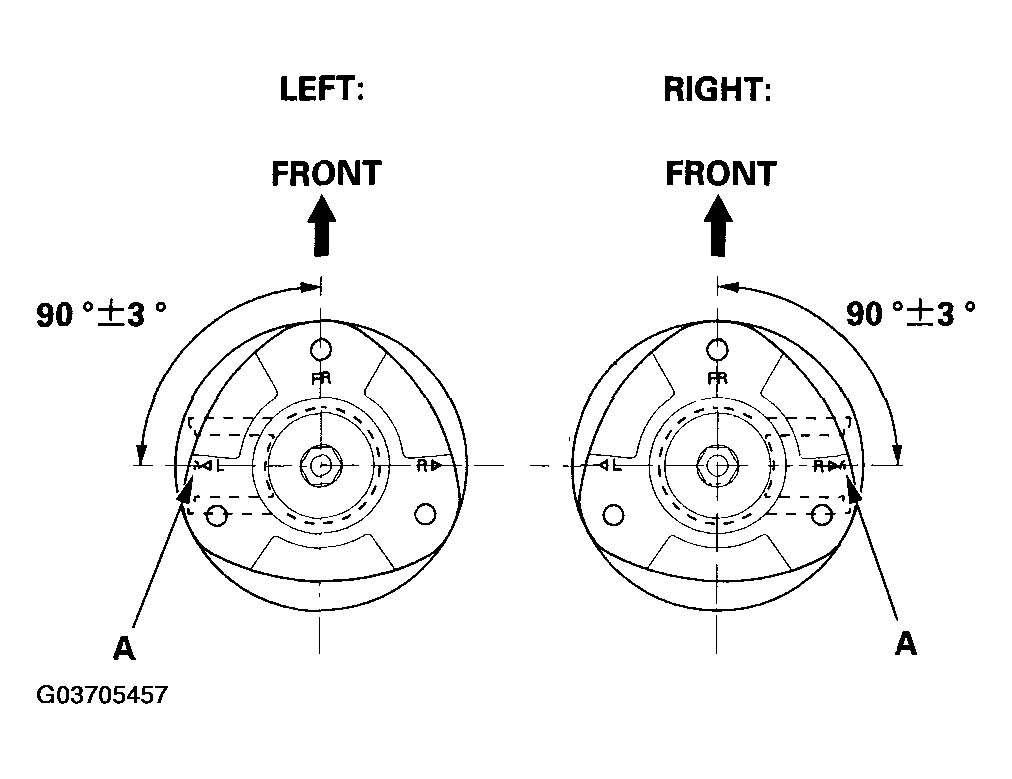

Fig 3: Aligning Stamp On Upper Spring Seat With Spring Mounting Cushion
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Compress the damper spring.
Install a new self-locking nut (A).

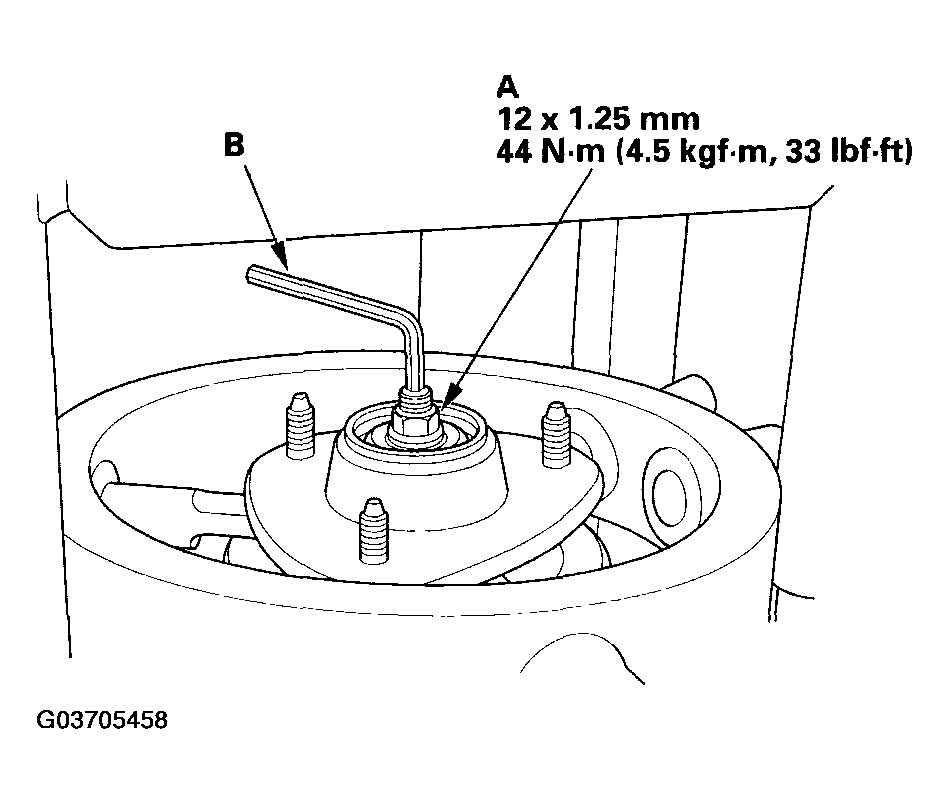

Fig 4: Installing New Self-Locking Nut
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Hold the damper rod using a hex wrench (B), and tighten the self-locking nut.
