Steering Gearbox Removal

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

NOTE: Note these items during removal:
  • Using solvent and a brush, wash any oil and dirt off the valve body unit, it's lines, and the end of the gearbox. Blow dry with compressed air.
  • Be sure to remove the steering wheel before disconnecting the steering joint. Damage to the cable reel can occur.
  • Lower the front subframe from the body and remove the steering gearbox through the gap produced by lowering the front subframe.
  1. Drain the power steering fluid (see FLUID REPLACEMENT  ).
  2. Record the customer's radio station preset, then disconnect the negative battery cable.
  3. Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
  4. Remove the steering wheel (see STEERING WHEEL REMOVAL  ).

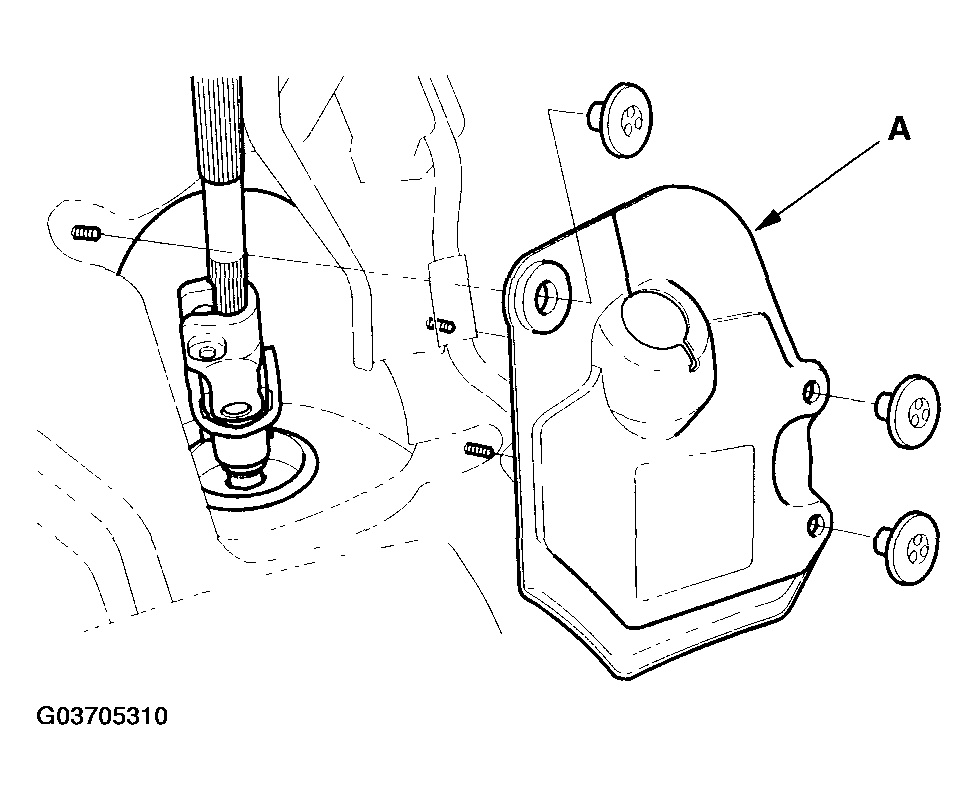

  5. Remove the steering joint cover (A).
    Fig 1: Removing Steering Joint Cover
    G03705310Courtesy of AMERICAN HONDA MOTOR CO., INC.

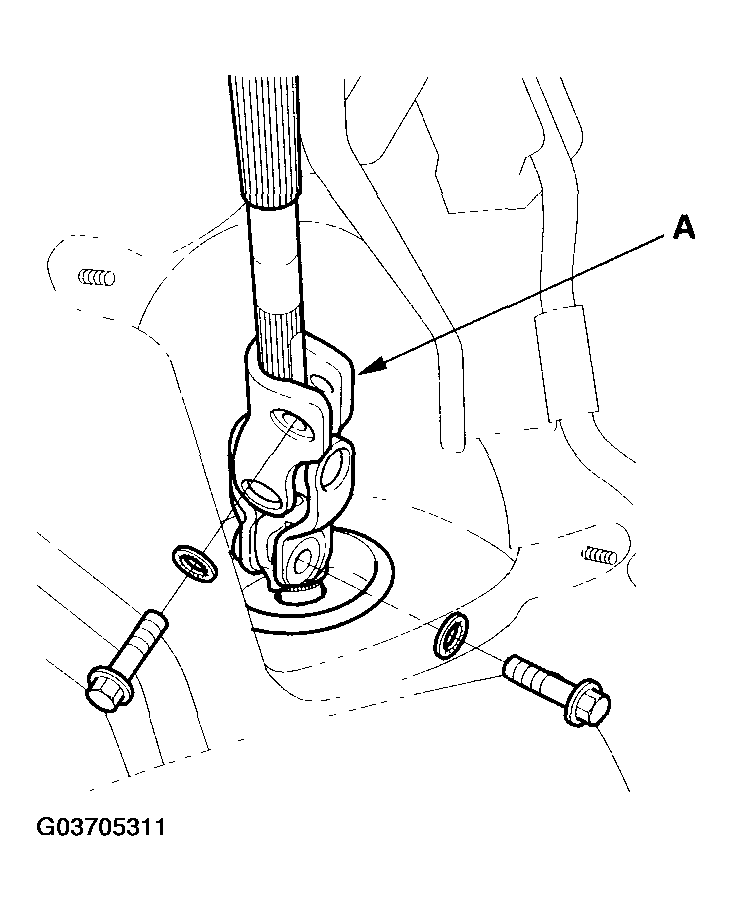

  6. Remove the steering joint bolts, disconnect the steering joint by moving the steering joint (A) toward the column.
    Fig 2: Disconnecting Steering Joint By Moving Steering Joint Toward Column
    G03705311Courtesy of AMERICAN HONDA MOTOR CO., INC.

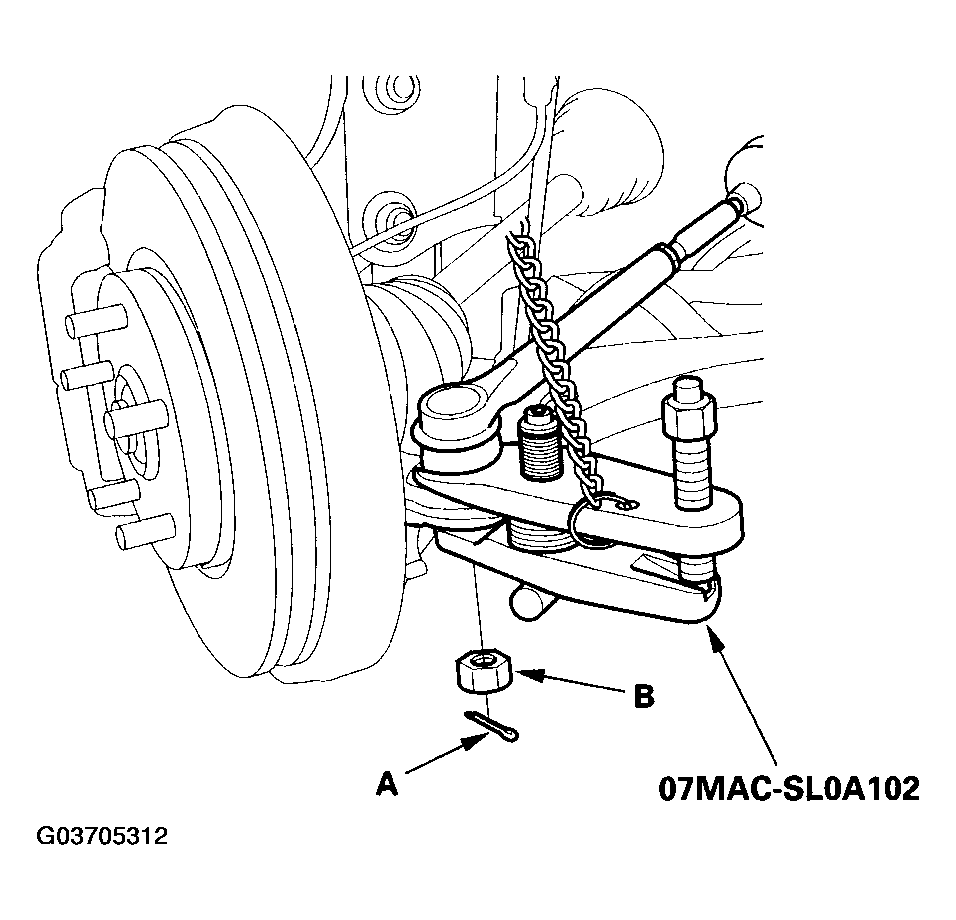

  7. Remove the cotter pin (A) from the 12 mm nut (B), and loosen the nut.
    Fig 3: Removing Cotter Pin
    G03705312Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Separate the tie-rod ball joint and knuckle using the special tool (see BALL JOINT REMOVAL ).
  9. Remove the 10 mm flange bolts of the exhaust rubber mount (A).

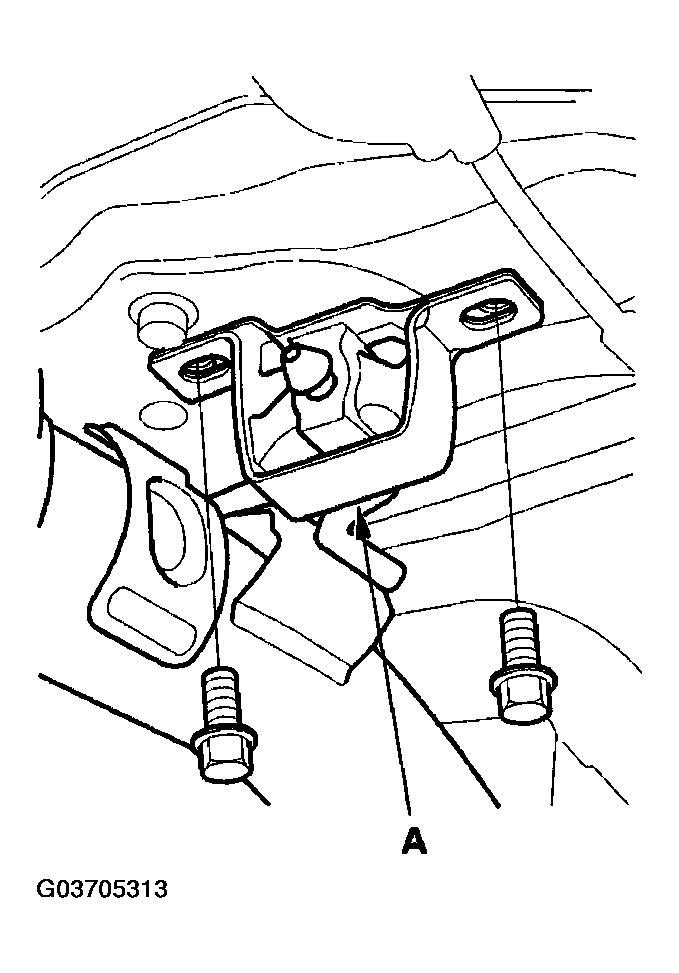

    Fig 4: Removing Flange Bolts Of Exhaust Rubber Mount
    G03705313Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Remove the three self-locking nuts, and disconnect the three way catalytic converter (TWC) (A) from the muffler (B).

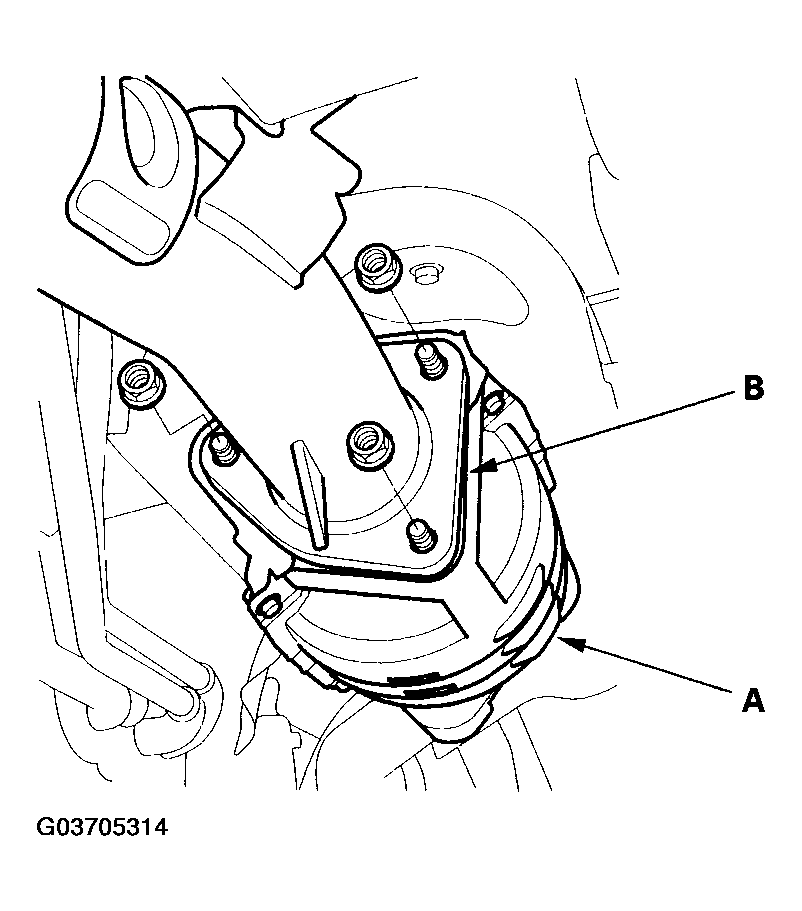

    Fig 5: Disconnecting TWC Converter
    G03705314Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Remove exhaust pipe A.

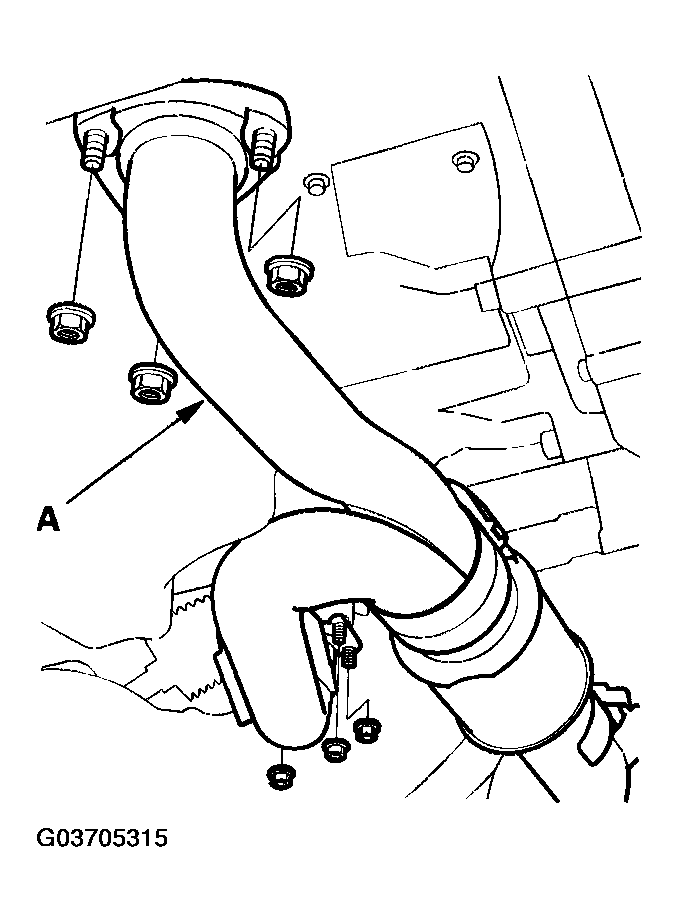

    Fig 6: Removing Exhaust Pipe A
    G03705315Courtesy of AMERICAN HONDA MOTOR CO., INC.

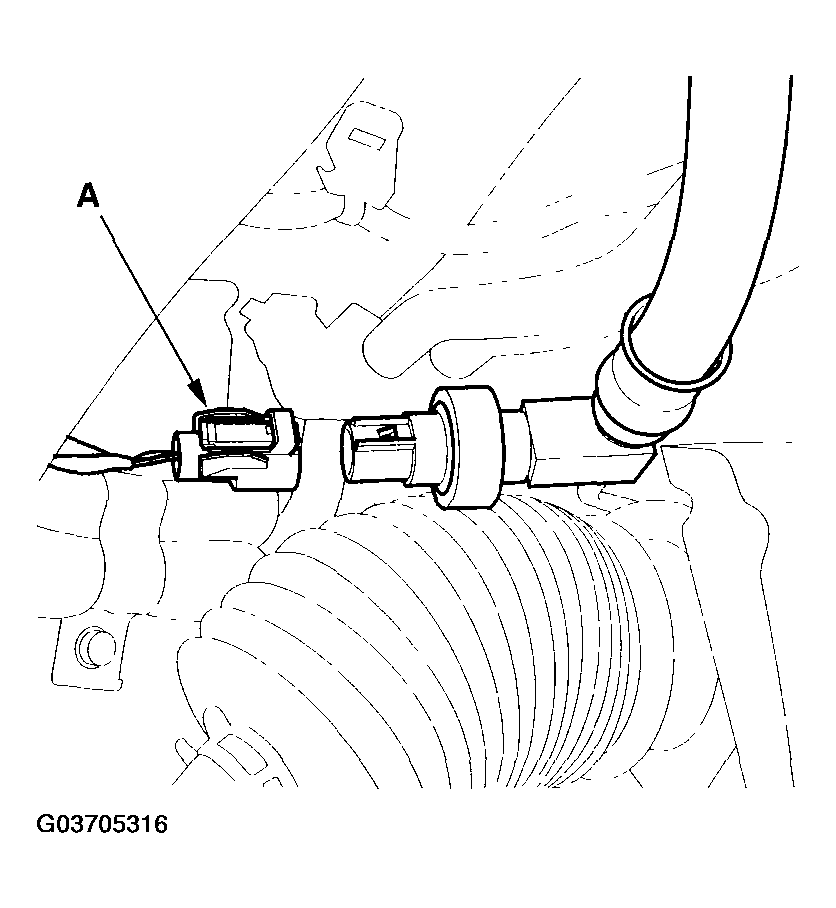

  12. Disconnect the power steering pressure (PSP) switch connector (A).
    Fig 7: Disconnecting PSP Switch Connector
    G03705316Courtesy of AMERICAN HONDA MOTOR CO., INC.

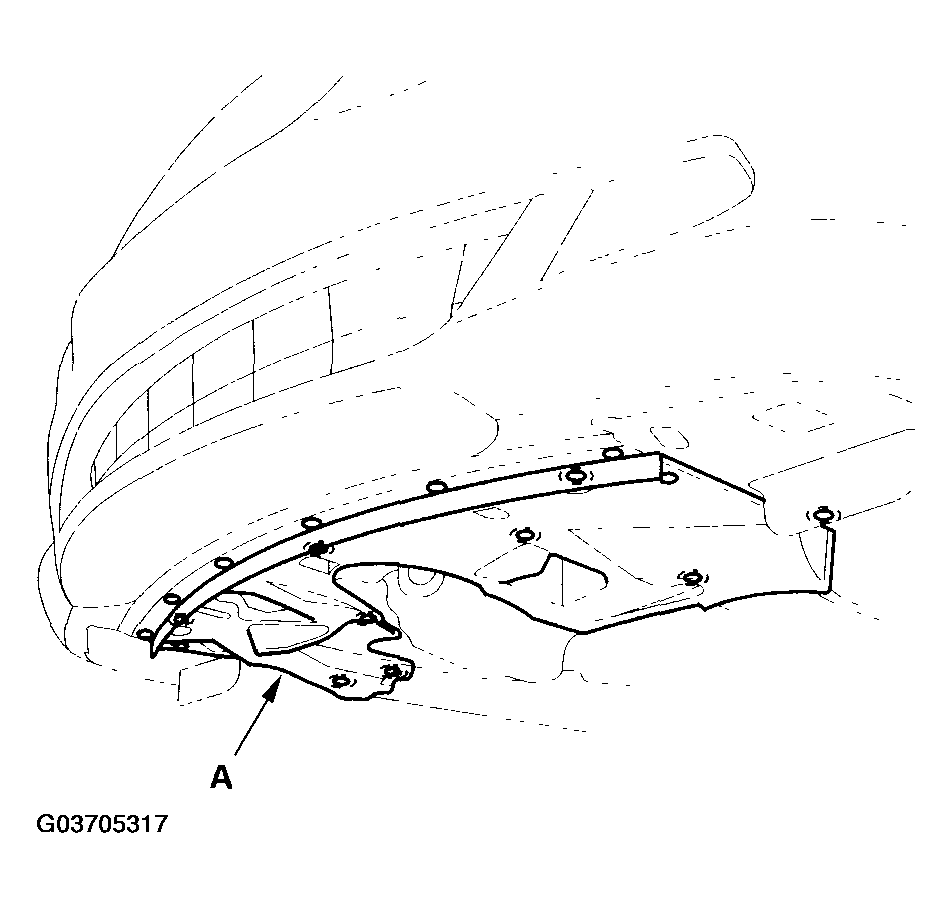

  13. Remove the front splash shield (A) (see FRONT SPLASH SHIELD REPLACEMENT ).
    Fig 8: Removing Front Splash Shield
    G03705317Courtesy of AMERICAN HONDA MOTOR CO., INC.

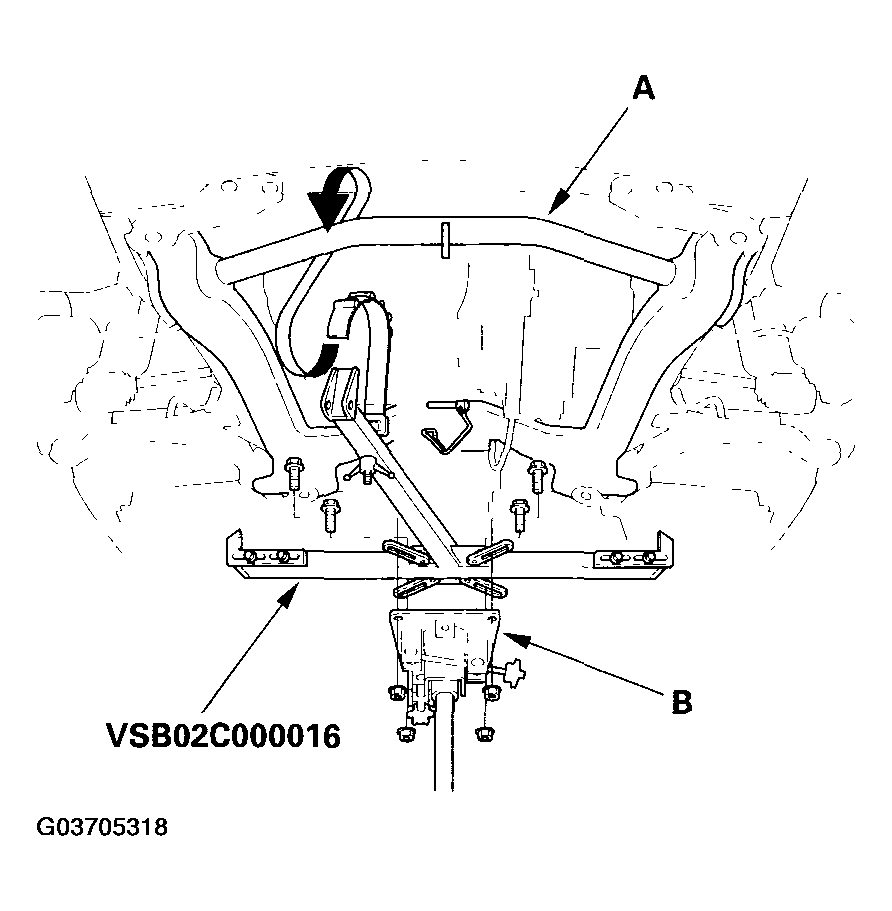

  14. Attach the special tool to the front subframe (A) by hanging the hook of the special tool over the front of the subframe, then tighten the special tool screw.
    Fig 9: Attaching Special Tool To Front Subframe
    G03705318Courtesy of AMERICAN HONDA MOTOR CO., INC.
  15. Raise the jack (B) and line up the slots in the arms with the bolt holes on the corner of the jack base, then attach them with bolts securely.
  16. Loosen the front subframe front bracket (A) mounting bolts on the right and left of the vehicle so they are about 30 mm (1 3/16 in.) from the mounting surface.

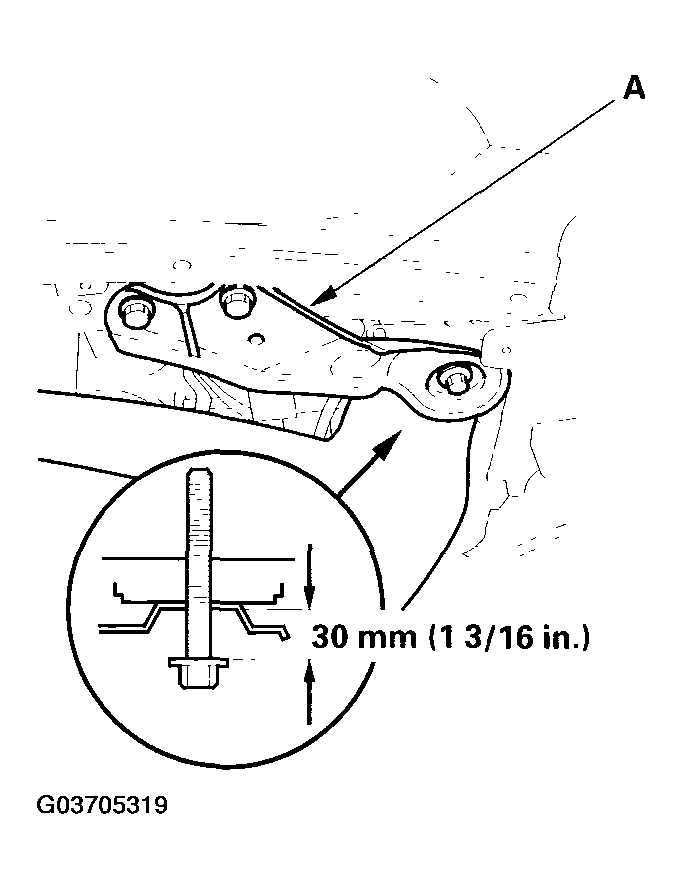

    Fig 10: Loosening Front Subframe Front Bracket
    G03705319Courtesy of AMERICAN HONDA MOTOR CO., INC.

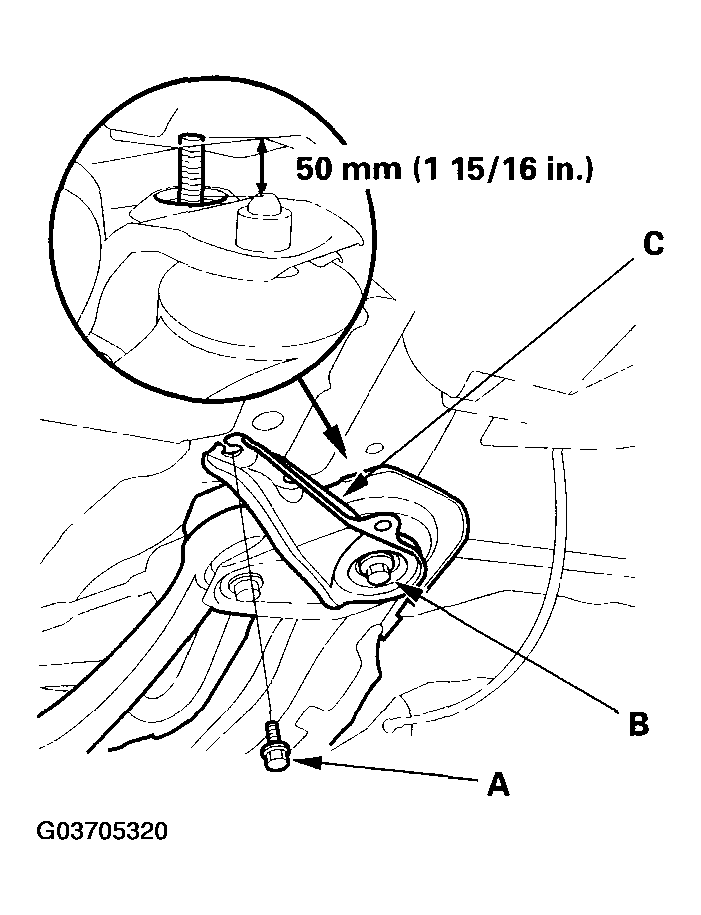

  17. Support the front subframe securely by raising the special tool, then remove the two 12 mm flange bolts (A).
    Fig 11: Removing Subframe Rear Bracket
    G03705320Courtesy of AMERICAN HONDA MOTOR CO., INC.
  18. Remove the two 14 mm special bolts (B) and front subframe rear brackets (C) from the front subframe.
  19. Lower the jack supporting the front subframe with the special tool slowly until the front subframe has dropped about 50 mm (1 15/16 in.).

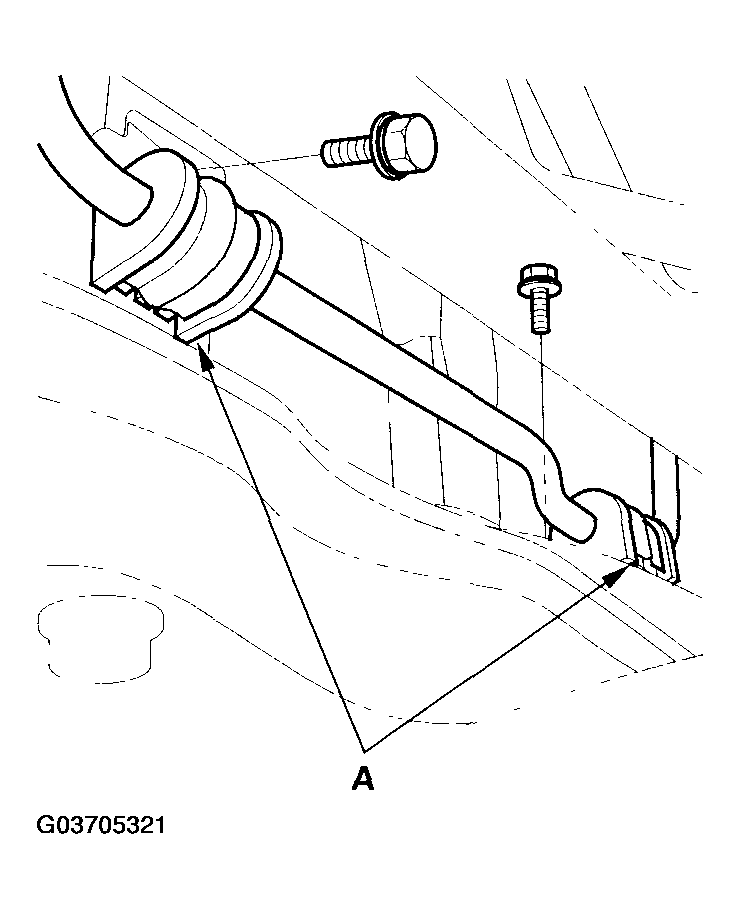

  20. Remove the P/S line mounting brackets (A) from the front subframe and gearbox mounting bracket.
    Fig 12: Removing P/S Line Mounting Brackets
    G03705321Courtesy of AMERICAN HONDA MOTOR CO., INC.
  21. Loosen the 16 mm flare nut (A), and disconnect the feed line (B).

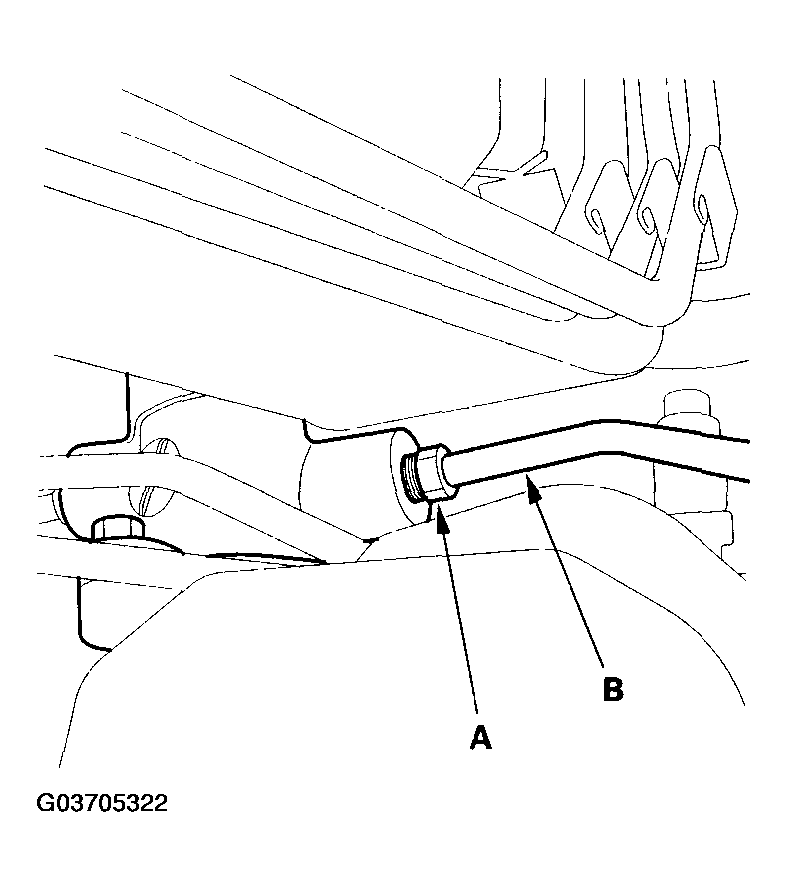

    Fig 13: Disconnecting Feed Line
    G03705322Courtesy of AMERICAN HONDA MOTOR CO., INC.

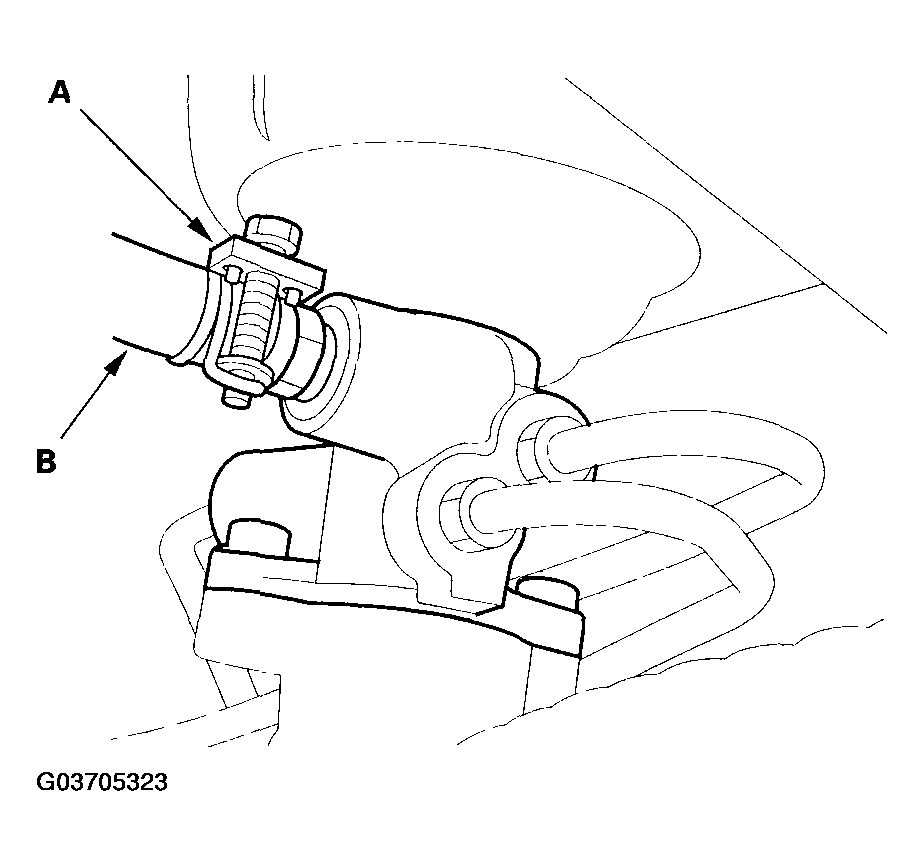

  22. Loosen the adjustable hose clamp (A) and disconnect the return hose (B).
    Fig 14: Disconnecting Return Hose
    G03705323Courtesy of AMERICAN HONDA MOTOR CO., INC.

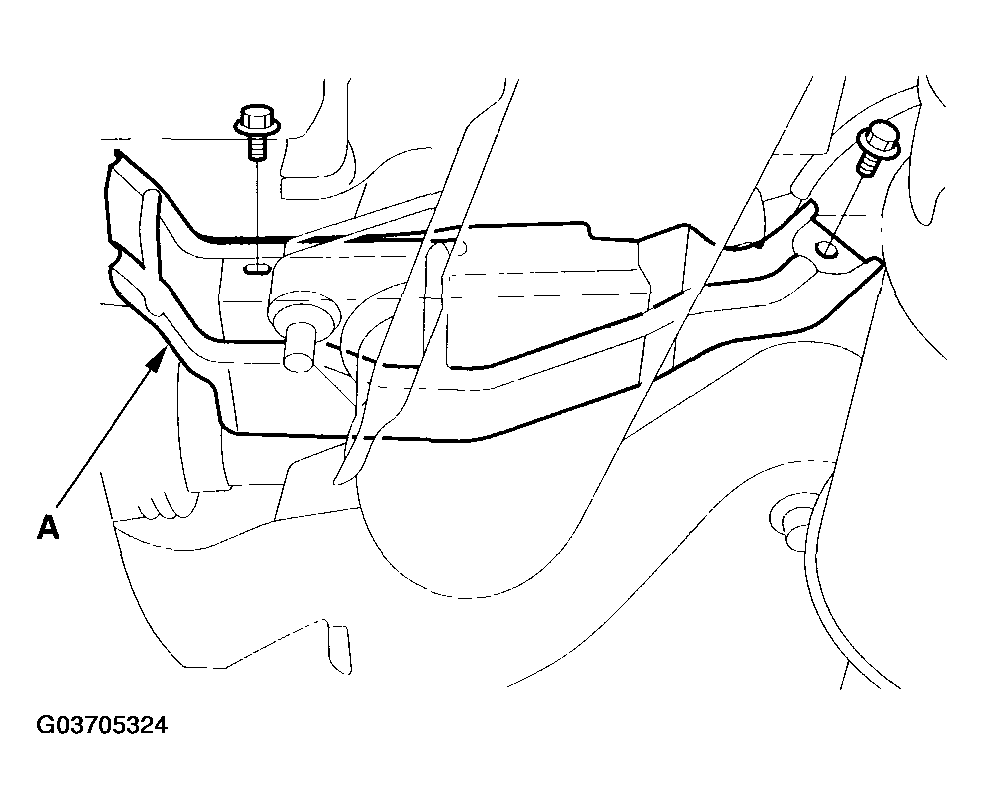

  23. Remove the P/S heat baffle plate (A).
    Fig 15: Removing P/S Heat Baffle Plate
    G03705324Courtesy of AMERICAN HONDA MOTOR CO., INC.

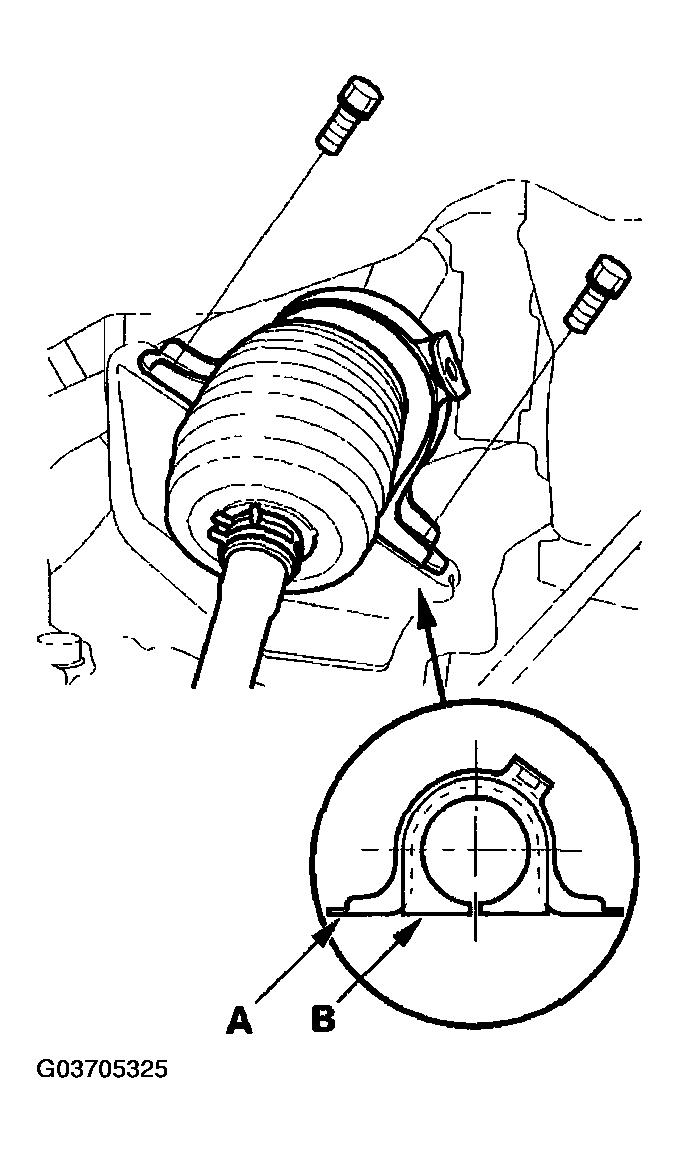

  24. Remove the two 10 mm flange bolts from the right side of the steering gearbox, then remove the mounting bracket (A) and cushion (B).
    Fig 16: Removing Mounting Bracket And Cushion
    G03705325Courtesy of AMERICAN HONDA MOTOR CO., INC.
  25. Remove the two 10 mm flange bolts and nuts from the left side of the gearbox.

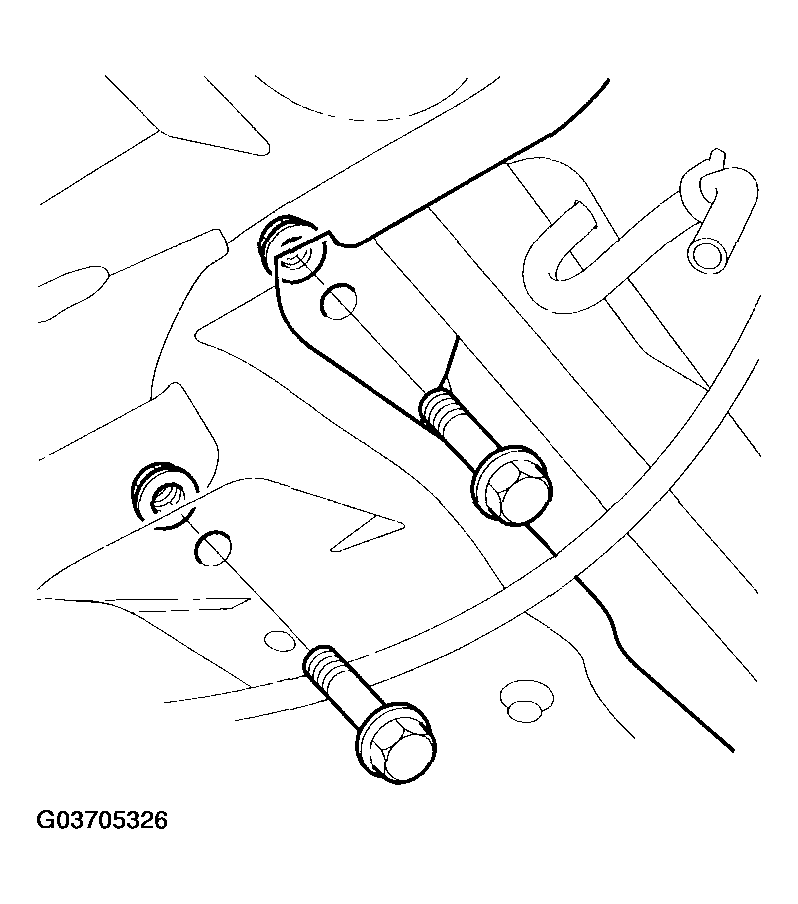

    Fig 17: Removing Flange Bolts And Nuts From Left Side Of Gearbox
    G03705326Courtesy of AMERICAN HONDA MOTOR CO., INC.
  26. Loosen the steering gearbox bracket mounting bolts (A).
    Fig 18: Loosening Steering Gearbox Bracket Mounting Bolts
    G03705327Courtesy of AMERICAN HONDA MOTOR CO., INC.

    EX-L, EX-L Touring models

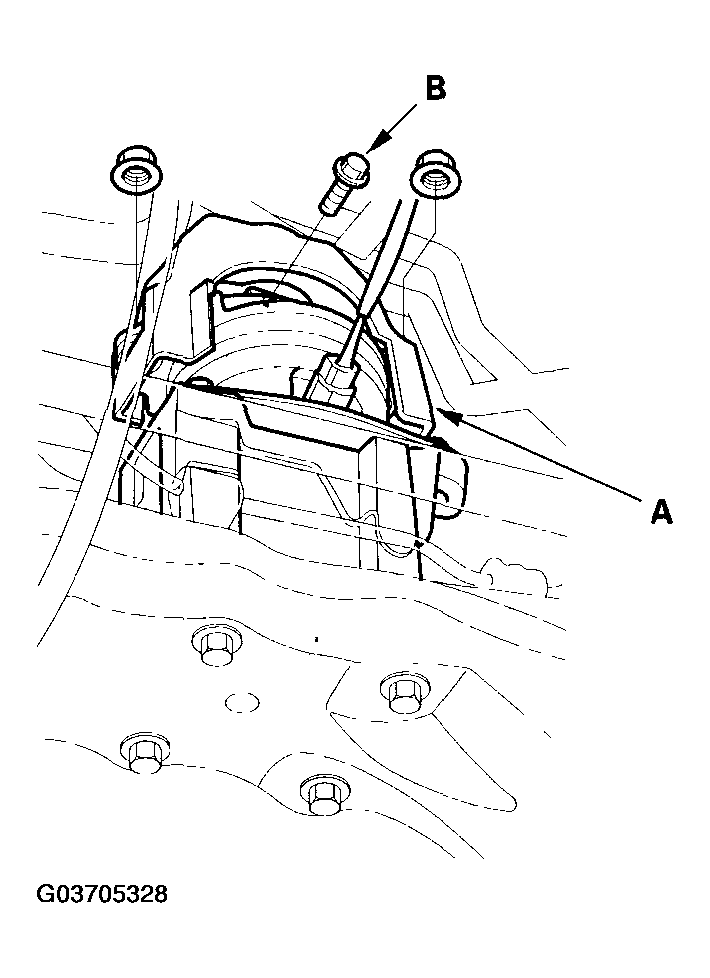

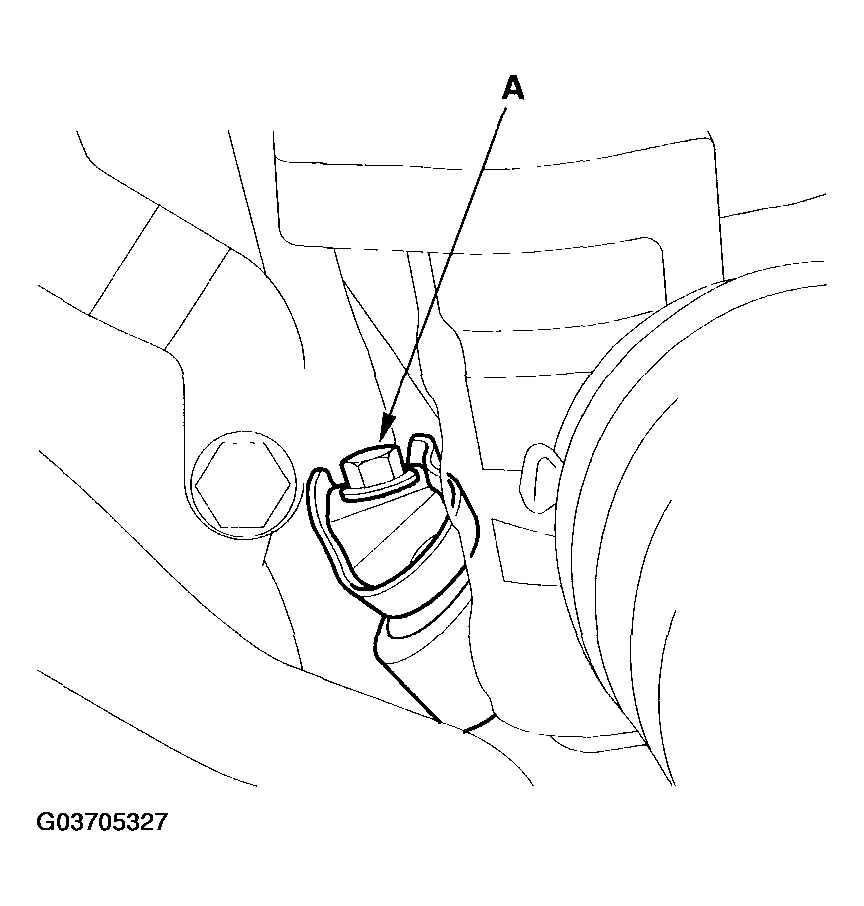

  27. Remove the rear mount stop (A), then remove the rear mount bolt (B).
    Fig 19: Removing Rear Mount Bolt
    G03705328Courtesy of AMERICAN HONDA MOTOR CO., INC.
  28. Remove the rear mount (A) from the base bracket (B), and disconnect the connector (C).

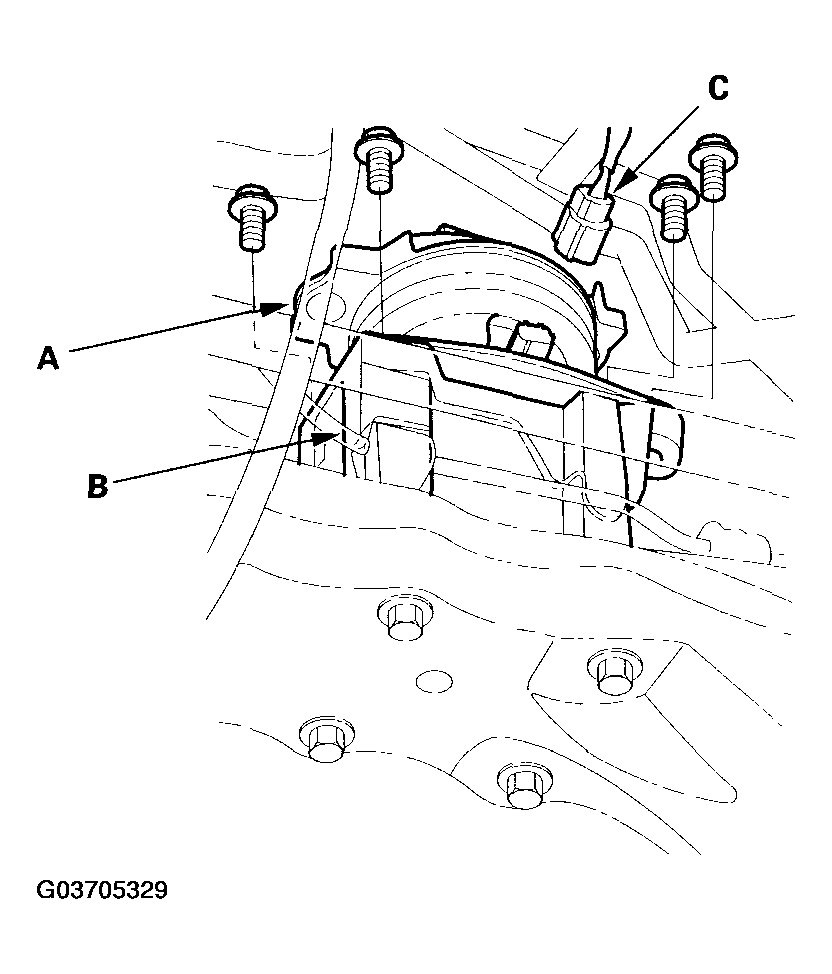

    Fig 20: Removing Rear Mount From Base Bracket
    G03705329Courtesy of AMERICAN HONDA MOTOR CO., INC.

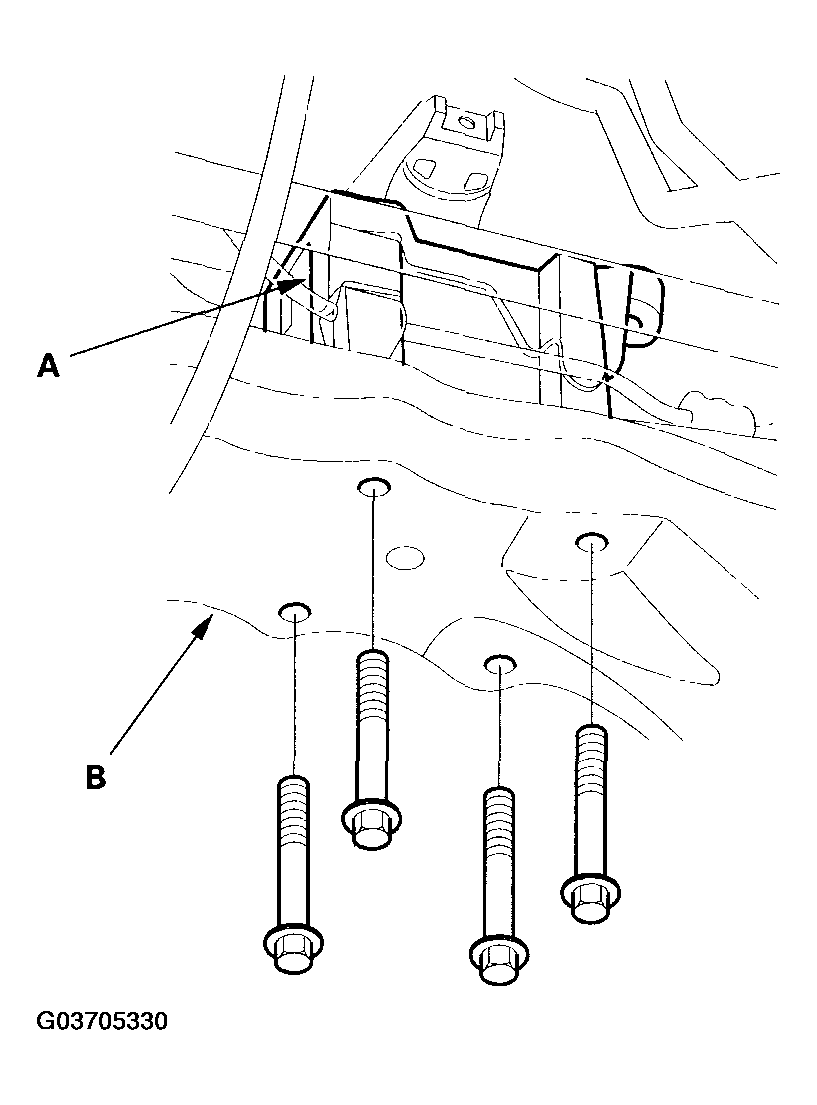

  29. Remove the base bracket (A) from the front subframe (B).
    Fig 21: Removing Base Bracket
    G03705330Courtesy of AMERICAN HONDA MOTOR CO., INC.

    VAN, LX, EX models

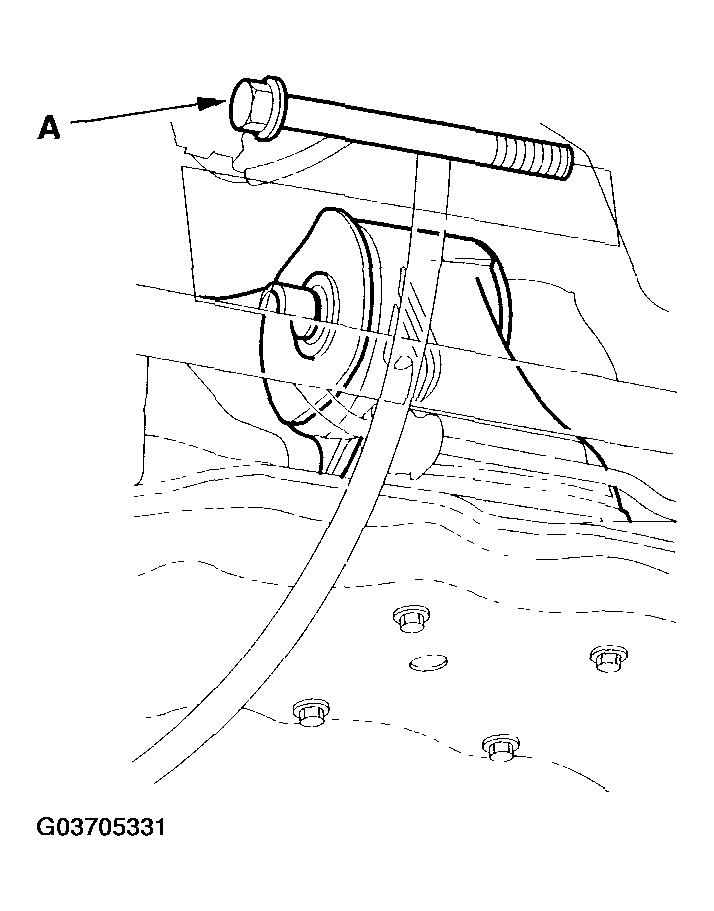

  30. Remove the rear mount bracket bolt (A).
    Fig 22: Removing Rear Mount Bracket Bolt
    G03705331Courtesy of AMERICAN HONDA MOTOR CO., INC.

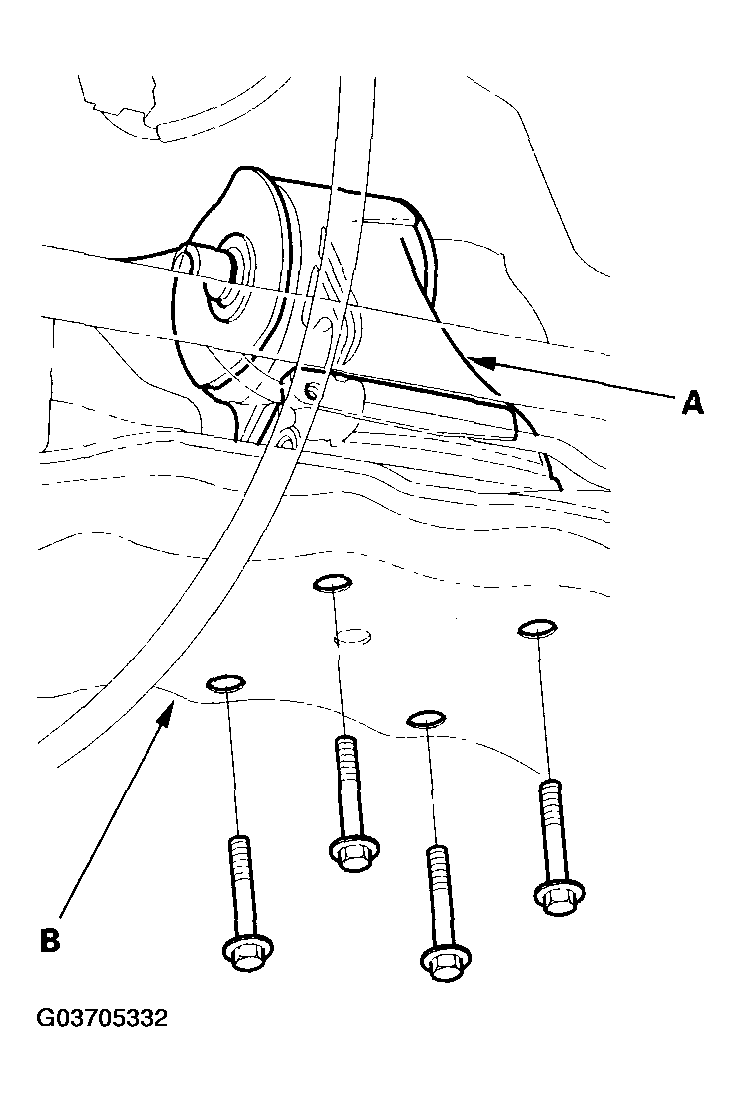

  31. Remove the rear mount bracket (A) from the front subframe (B).
    Fig 23: Removing Rear Mount Bracket
    G03705332Courtesy of AMERICAN HONDA MOTOR CO., INC.

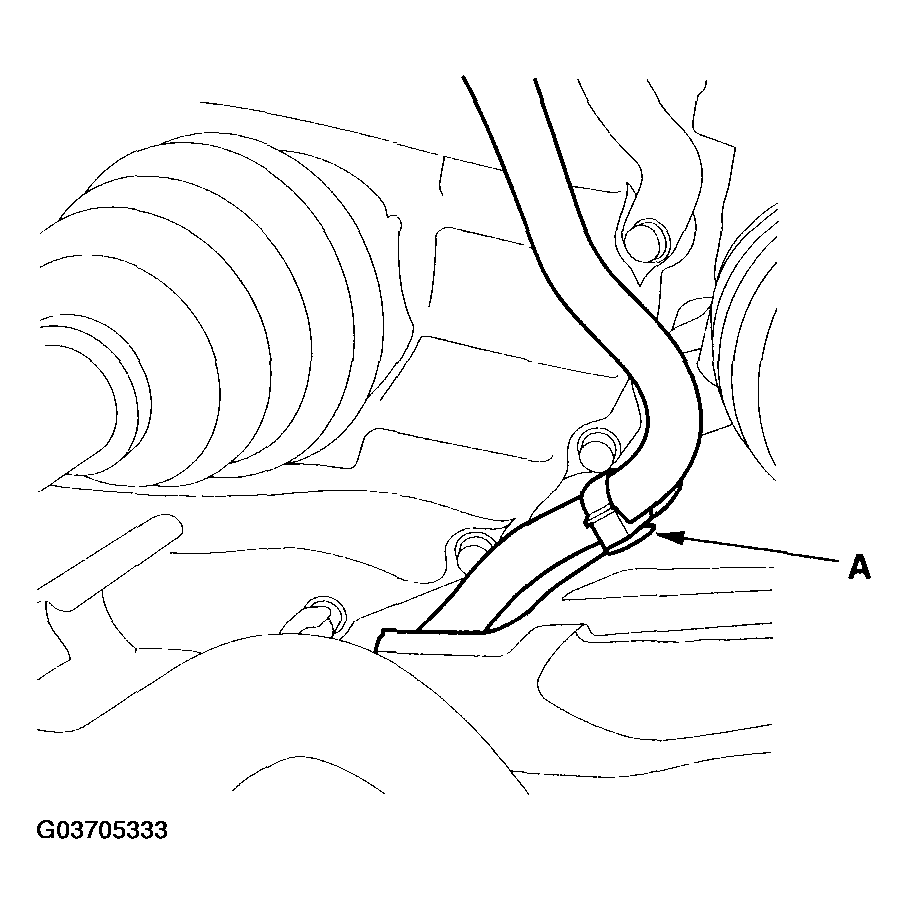

  32. Disconnect the return hose clip (A).
    Fig 24: Disconnecting Return Hose Clip
    G03705333Courtesy of AMERICAN HONDA MOTOR CO., INC.
  33. Move the steering gearbox to the driver's side, and rotate it so the pinion shaft points toward the front of the vehicle.

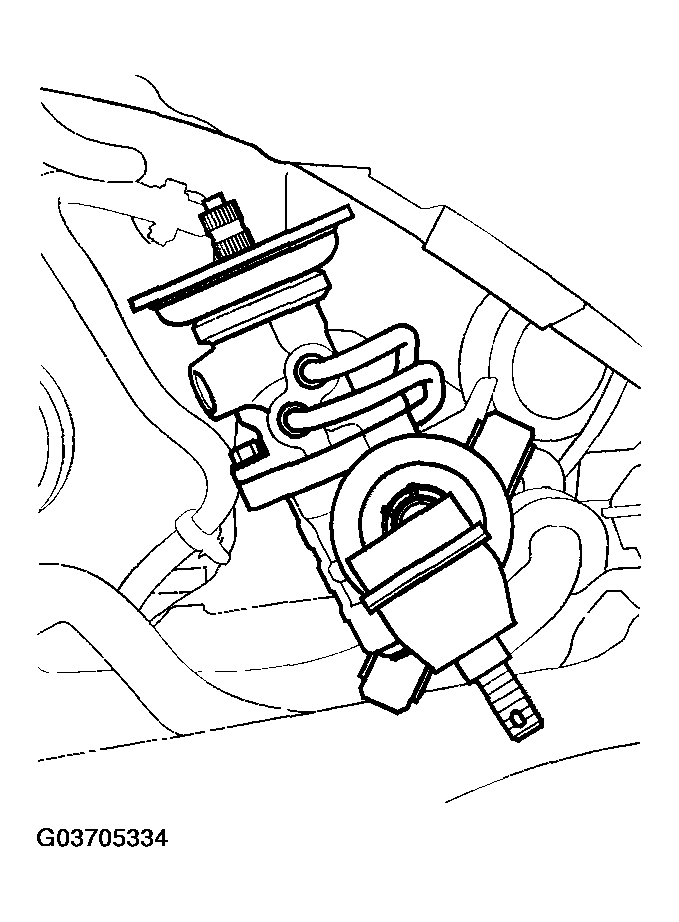

  34. Carefully move the steering gearbox as an assembly toward the left side of the vehicle until the pinion shaft clears the wheelwell opening. Be careful not to damage the brake lines with the pinion shaft.
    Fig 25: Moving Steering Gearbox Toward Left Side Of Vehicle Until Pinion Shaft Clears Wheelwell Opening
    G03705334Courtesy of AMERICAN HONDA MOTOR CO., INC.

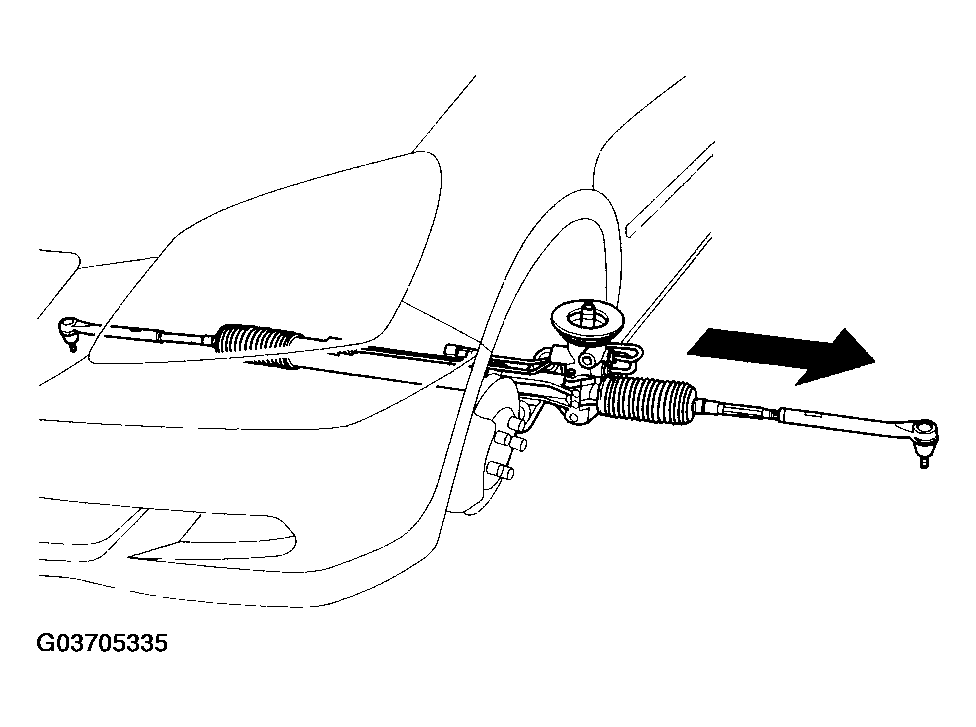

  35. Remove the steering gearbox through the wheelwell opening on the driver's side.
    Fig 26: Removing Steering Gearbox Through Wheelwell Opening
    G03705335Courtesy of AMERICAN HONDA MOTOR CO., INC.
  36. Remove the pinion shaft grommet (A) from the steering joint cover B.

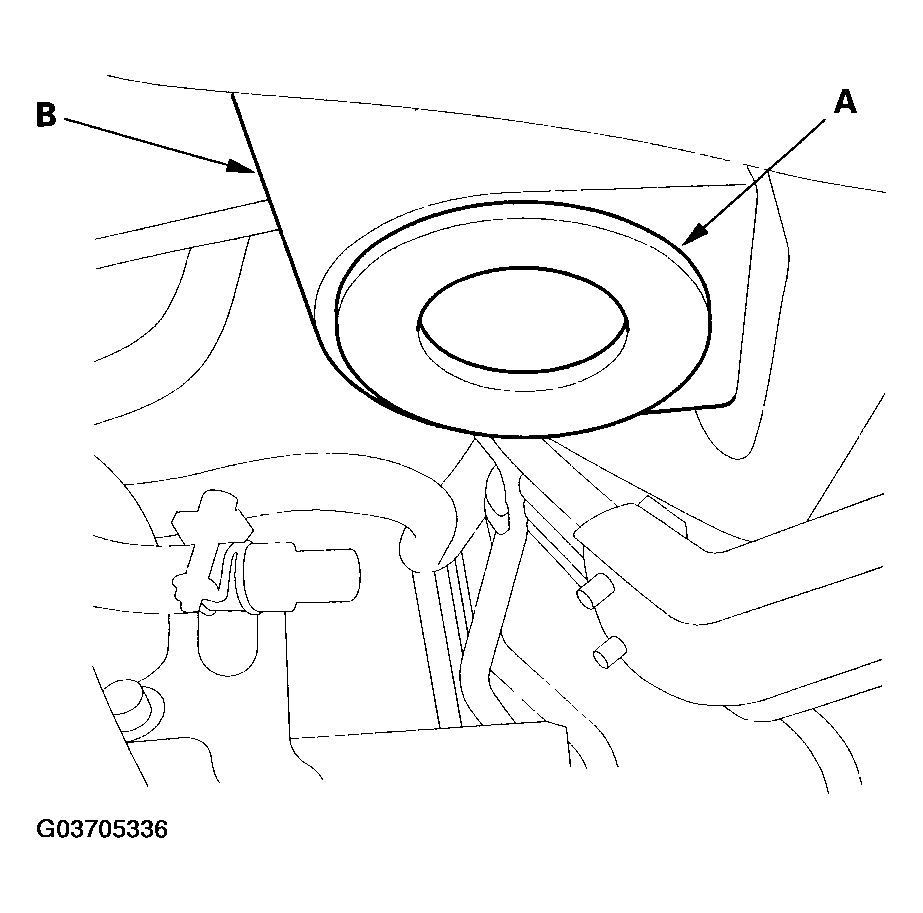

    Fig 27: Removing Pinion Shaft Grommet From Steering Joint Cover B
    G03705336Courtesy of AMERICAN HONDA MOTOR CO., INC.
  37. After removing the steering gearbox, make sure that no power steering fluid gets on the gearbox mount cushions, gearbox housing, surface of the front subframe and stiffener. Wipe off any spilled fluid at once.
