Exploded View

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

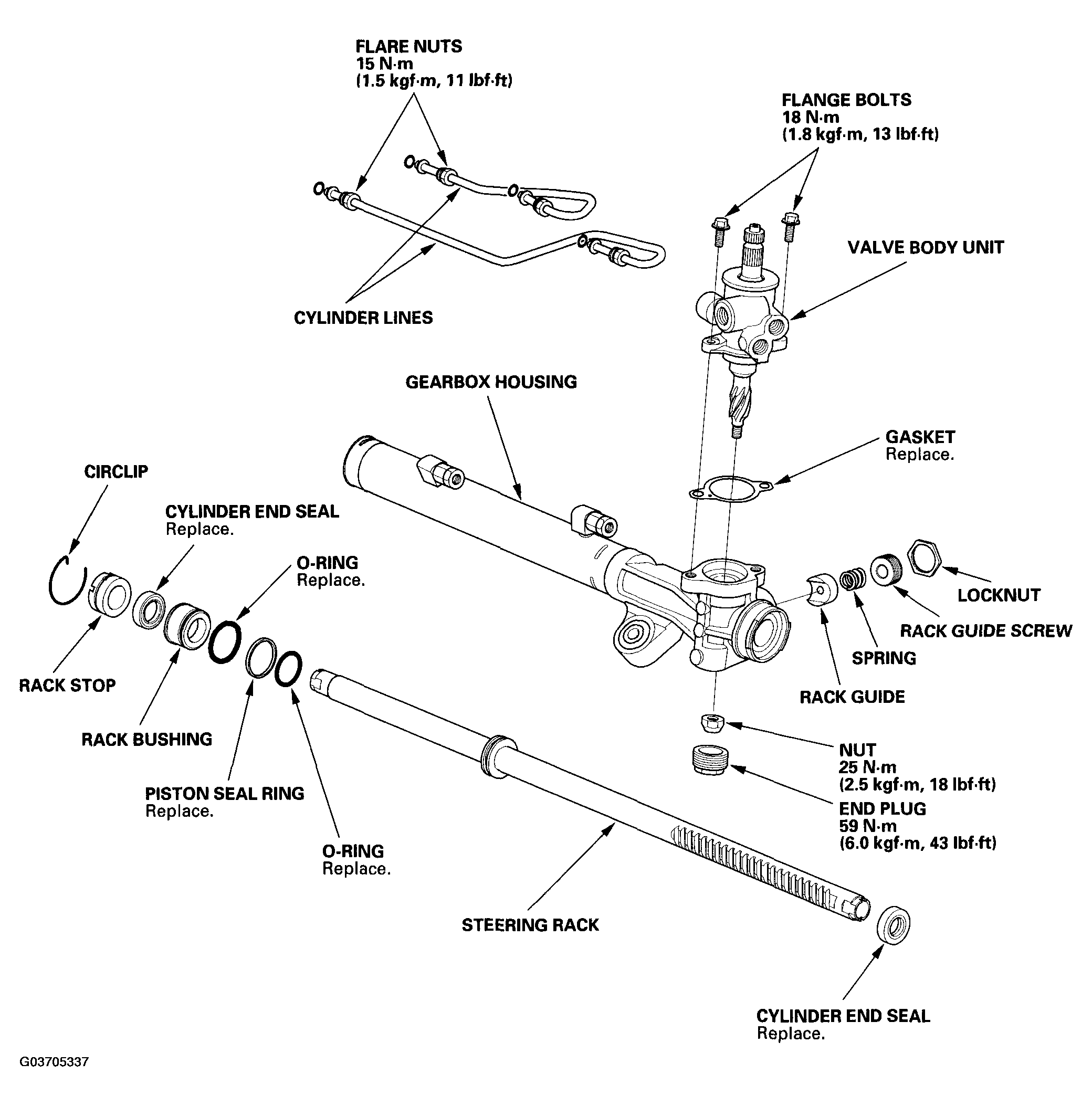

Fig 1: Exploded View Of Steering Gearbox

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Driver handle, 480 mm 070GD-0010100
Attachment, 24 x 26 mm 07746-0010700
Pilot, 22 mm 07746-0041000
Driver 07749-0010000
Attachment, 42 x 47 mm 07746-0010300
Piston seal ring guide, 42 mm 07ZAG-S7A0100
Piston seal ring sizing tool, 42 mm 07ZAG-S7A0200
Pincer Oetiker 1098, or equivalent, commercially available

NOTE: Refer to the EXPLODED VIEW as needed during the following procedure.
