Power Steering Hose, Line, and Pressure Switch Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Note these items during installation:

Connect each hose to the corresponding line securely until it contacts the stop on the line. Install the clamp or adjustable clamp at the specified distance from the hose end as shown in Fig 1 .
Check all clamps for deterioration or deformation; replace the clamps with new ones if necessary.
Add the recommended power steering fluid to the specified level on the reservoir and check for leaks.

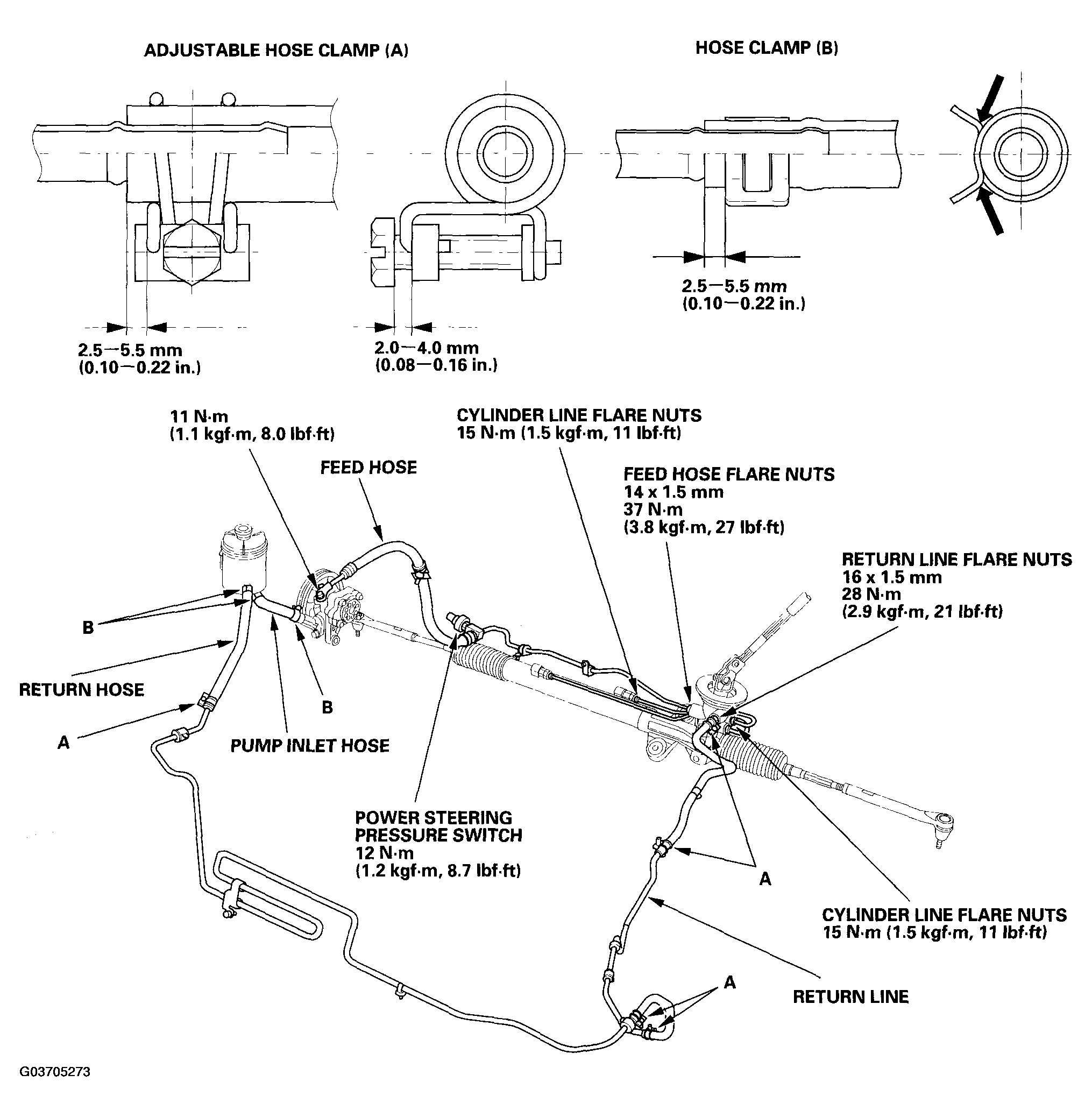

Fig 1: Replacing Power Steering Hose, Line, And Pressure Switch

Courtesy of AMERICAN HONDA MOTOR CO., INC.
