Radiator and A/C Condenser Fan Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Use fender covers to avoid damaging painted surfaces.
  • To avoid damaging the wires and terminals, unplug the wiring connectors carefully while holding the connector portion.
  • Mark all wiring and hoses to avoid misconnection. Also, be sure that they do not contact any other wiring or hoses, or interfere with any other parts.
  1. Make sure you have the anti-theft codes for the radio and navigation system, then write down the customer's audio presets. Make sure the ignition switch is OFF.
  2. Disconnect the negative cable from the battery first, then disconnect the positive cable.
  3. Remove the front grill cover (see FRONT GRILLE COVER REPLACEMENT ).
  4. Remove the battery.
  5. Remove the engine wire harness connectors (A) from the battery base.

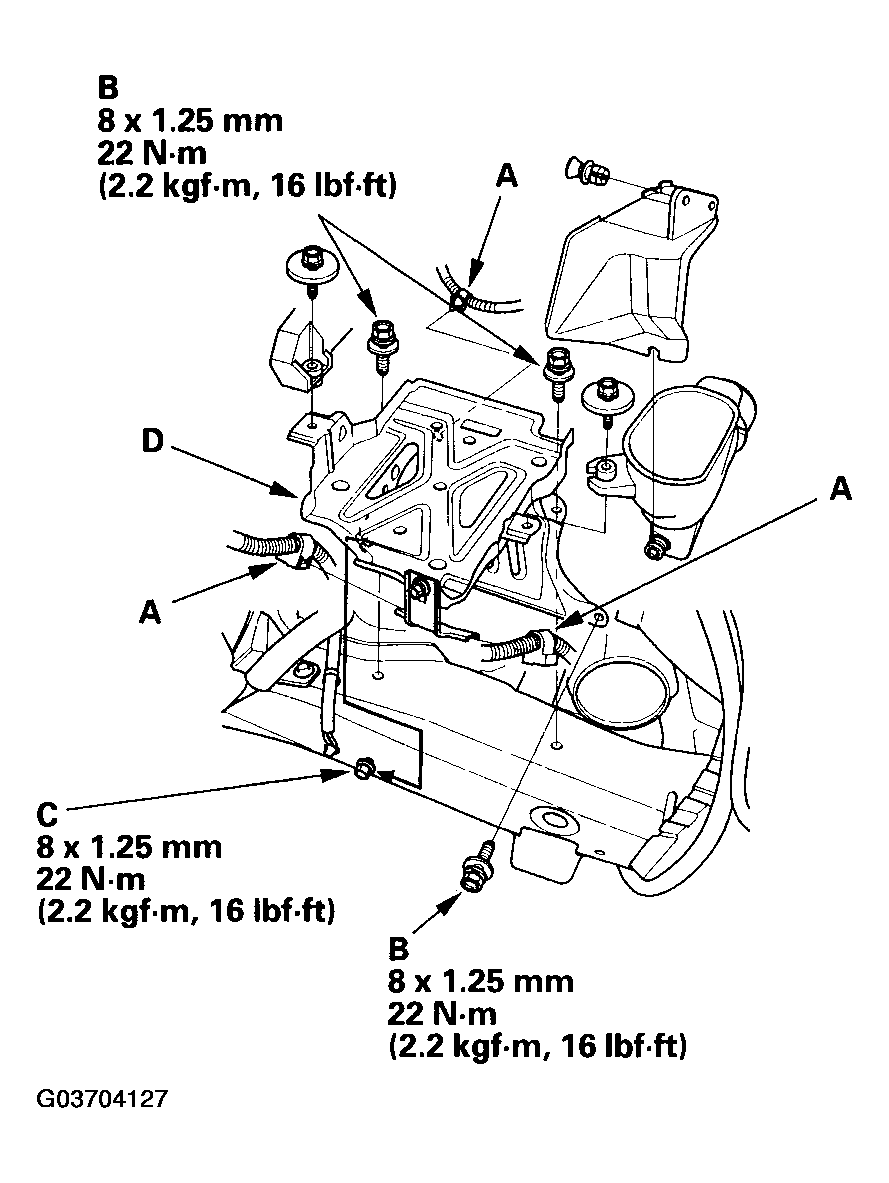

    Fig 1: Removing Engine Wire Harness Connectors From Battery Base
    G03704127Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the three mounting bolts (B) and loosen mounting bolt (C), then remove the battery base (D).
  7. Disconnect the A/C compressor clutch connector (A) and fan motor connectors (B).

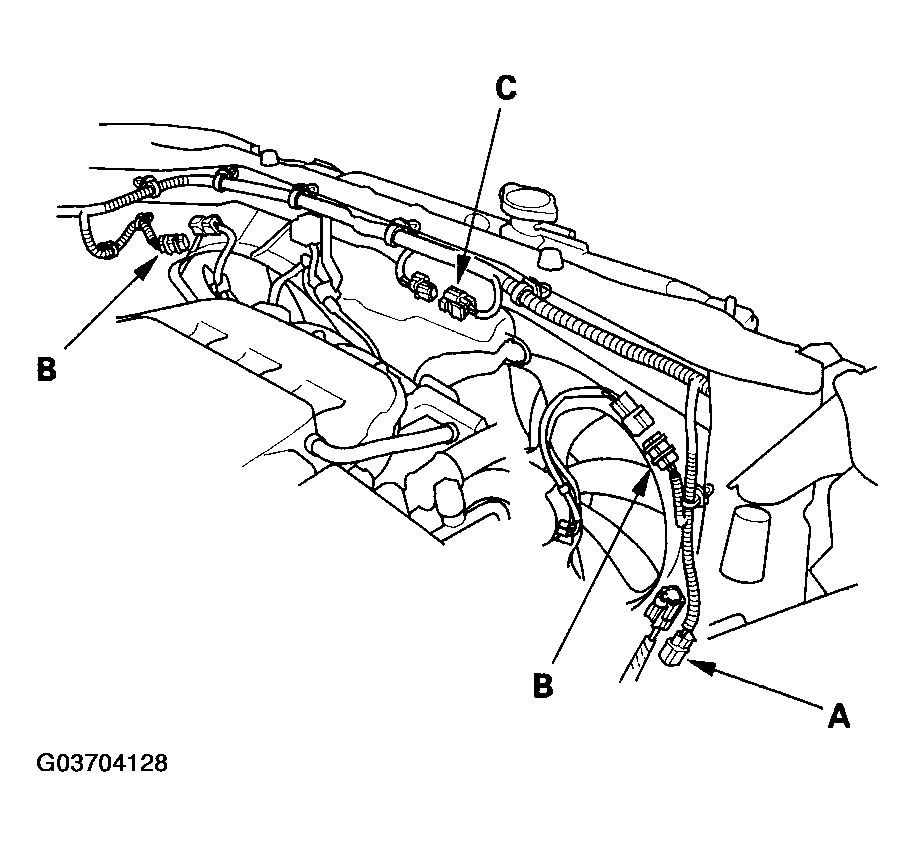

    Fig 2: Disconnecting A/C Compressor Clutch Connector And Fan Motor Connectors
    G03704128Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Disconnect the hood switch connector (C).
  9. J35A6 engine: Disconnect the engine mount control solenoid valve connector (A) and vacuum hoses (B).

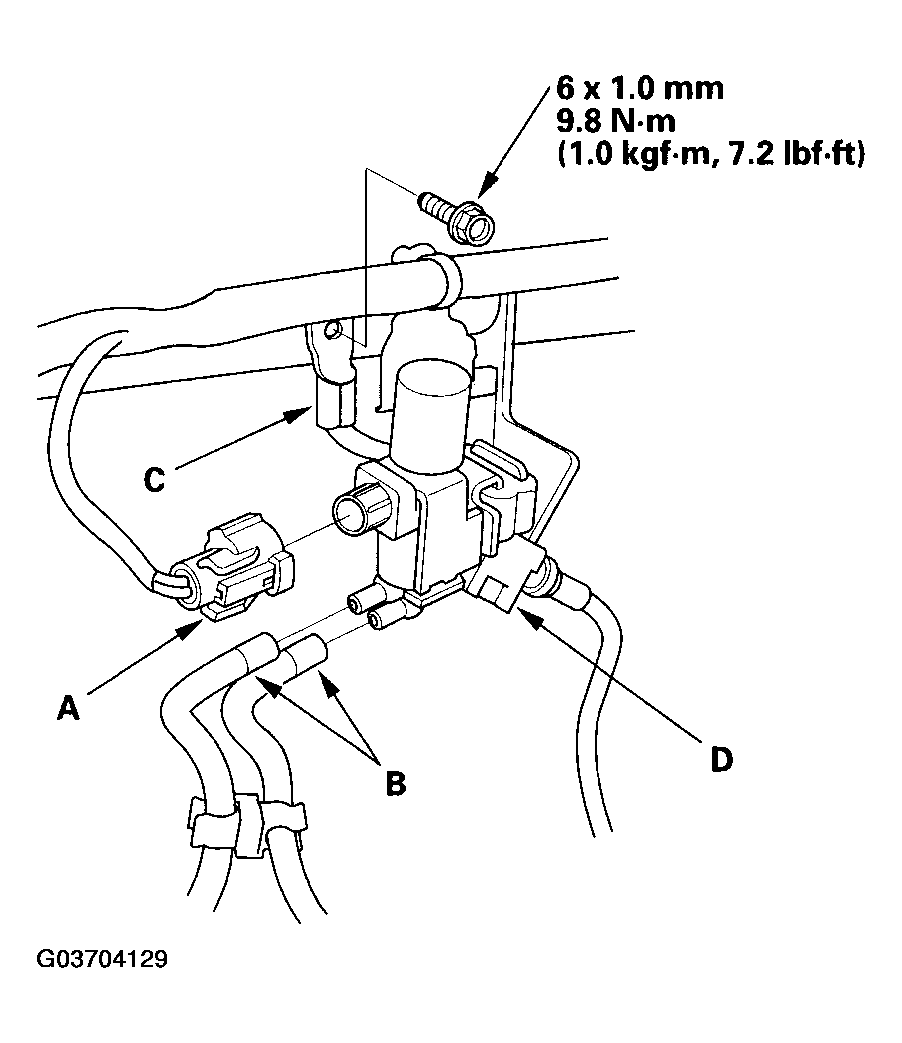

    Fig 3: Disconnecting Engine Mount Control Solenoid Valve Connector And Vacuum Hoses (J35A6 Engine)
    G03704129Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Remove the ground cable (C) and harness clamp (D).
  11. Remove the two bolts securing the reservoir, then remove the reservoir.
  12. Remove the two bolts (A) securing the radiator fan shroud, then remove the radiator fan shroud assembly (B) from the battery side.

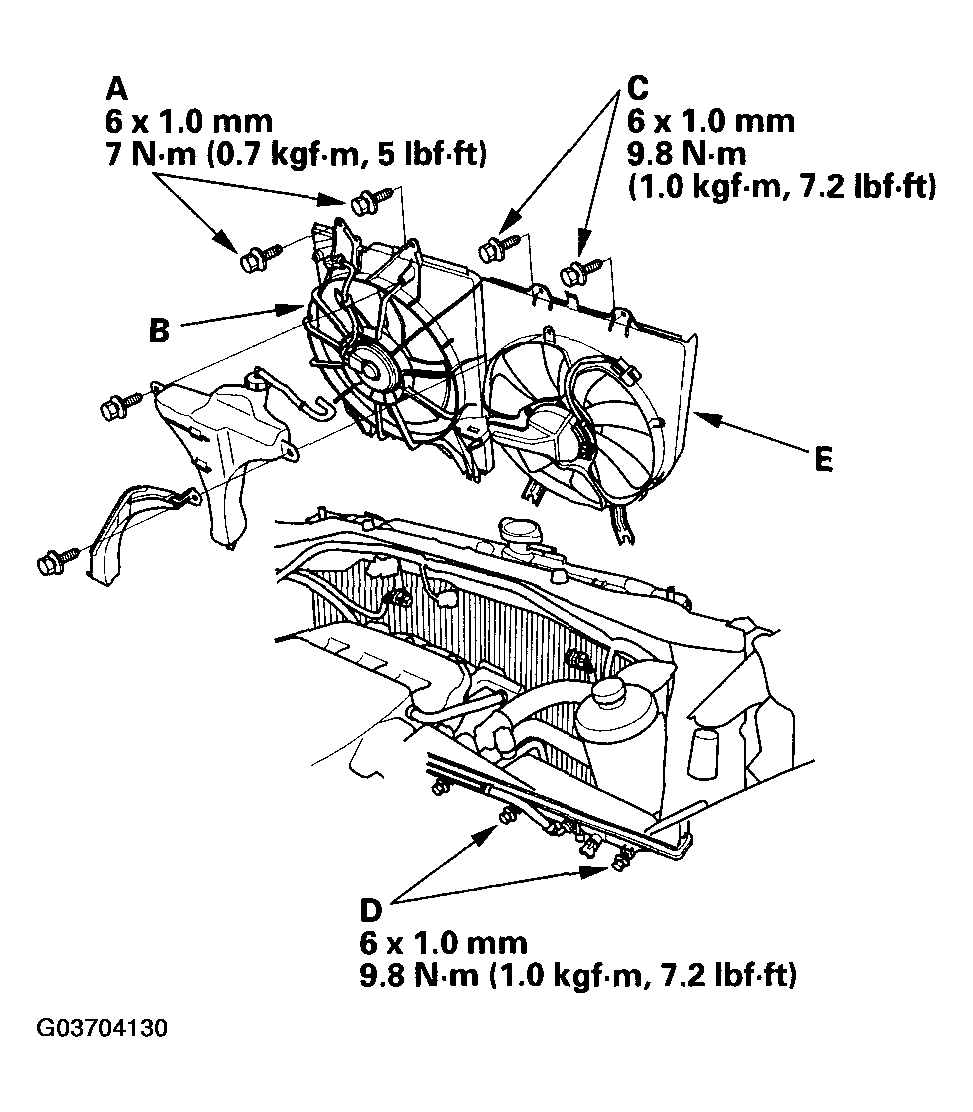

    Fig 4: Identifying Loosening Torque Of Radiator And A/C Condenser Fan Bolts
    G03704130Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Remove the two bolts (C), and loosen the two bolts (D) securing the A/C condenser fan shroud, then remove the A/C condenser fan shroud assembly (E) from the battery side.
  14. Install the radiator and A/C condenser fans in the reverse order of removal.
  15. Install the battery. Clean the battery posts and cable terminals with sandpaper, then assemble them and apply grease to prevent corrosion.
  16. Enter the anti-theft codes for the radio and the navigation system, then enter the customer's audio presets.
  17. Set the clock.
