Starter Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Make sure you have the anti-theft codes for the radio and the navigation system, then write down the customer's audio presets. Make sure the ignition switch is OFF.
  2. Disconnect the negative cable from the battery first, then disconnect the positive cable.
  3. Remove the battery and the battery base.
  4. Remove the harness clamp (A).

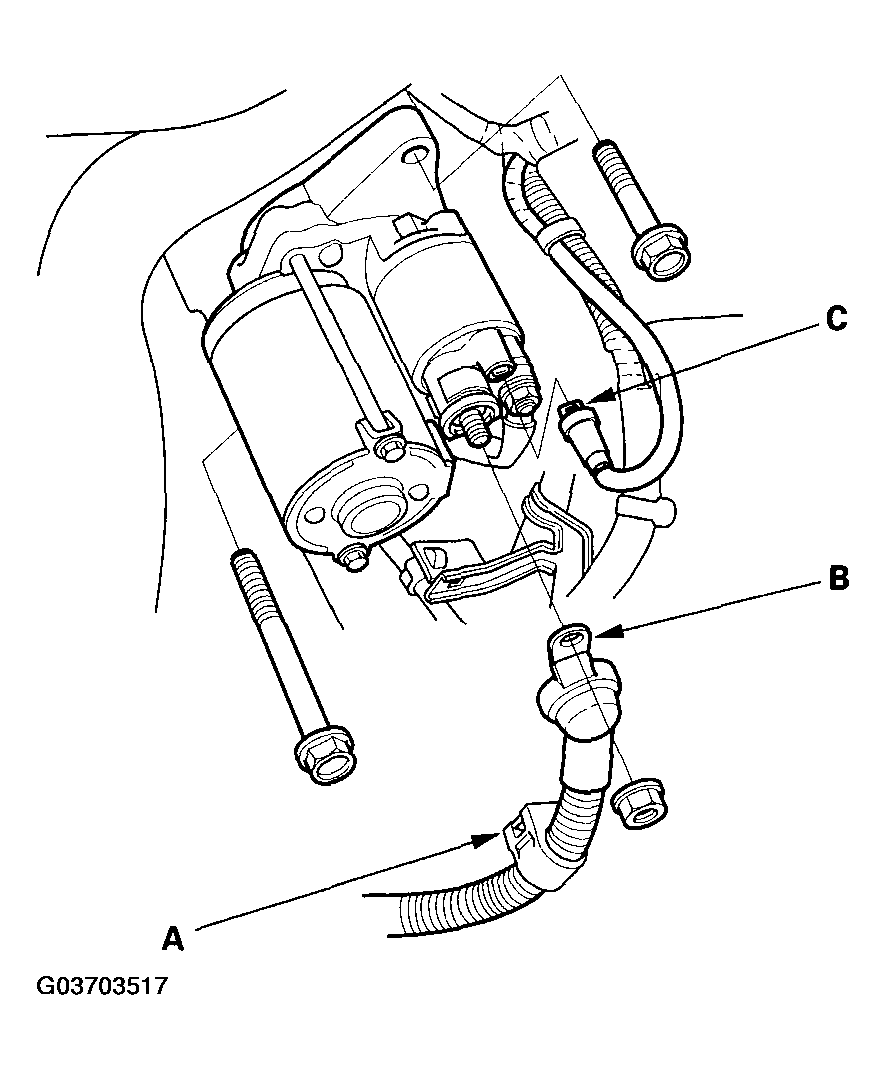

    Fig 1: Removing Harness Clamp
    G03703517Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Disconnect the starter cable (B) from the B terminal, then disconnect the BLK/WHT wire (C) from the S terminal.
  6. Remove the two bolts holding the starter, then remove the starter.
