Starter Removal and Installation: Installation

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

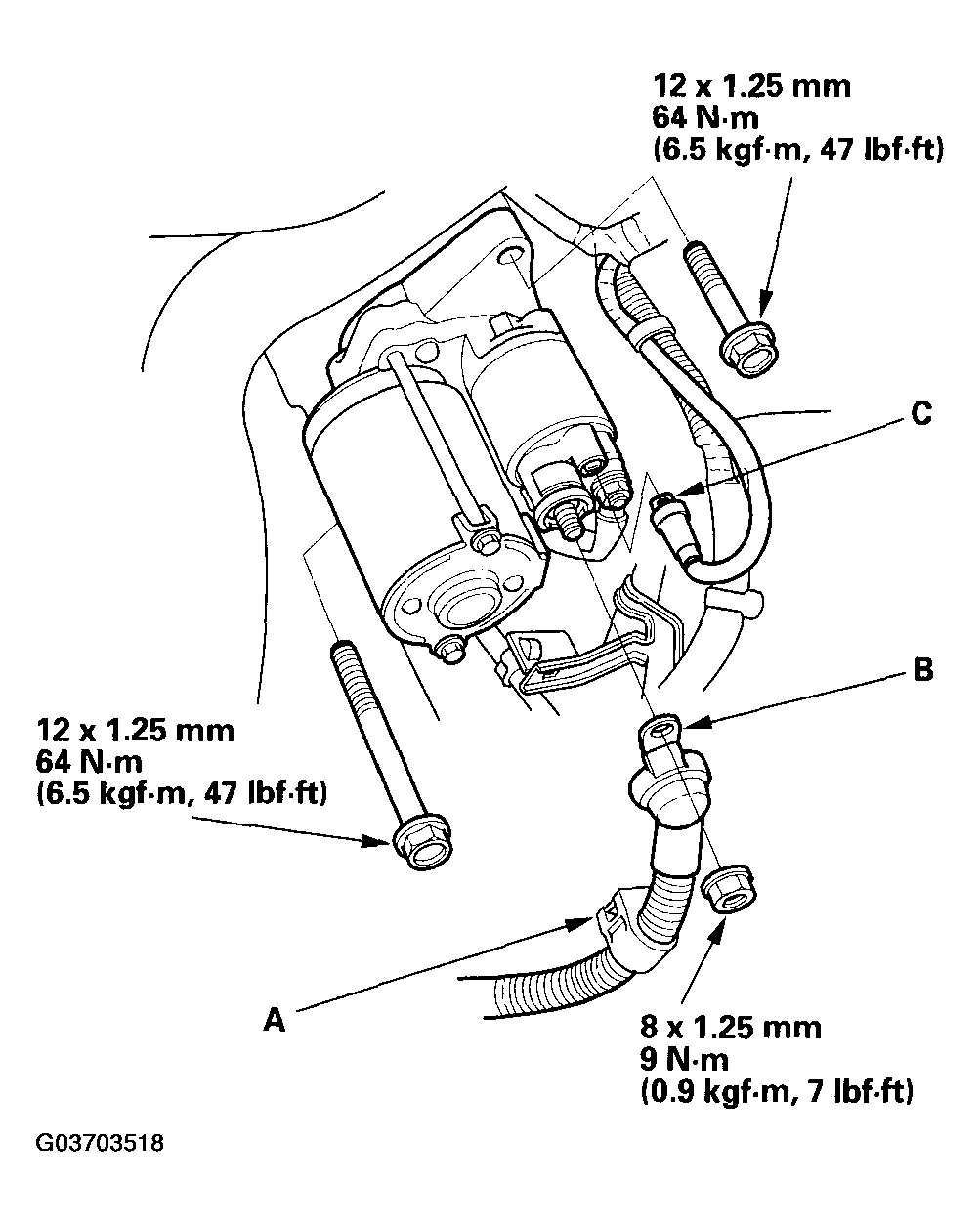

Install the starter, then install the harness clamp (A), connect the starter cable (B) to the B terminal and the BLK/WHT wire (C) to the S terminal. Make sure the crimped side of the starter cable ring terminal is facing out.

Fig 1: Installing Harness Clamp
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the battery base and the battery.
Connect the positive cable to the battery first, then connect the negative cable.
Start the engine to make sure the starter works properly.
Enter the anti-theft codes for the radio and the navigation system, then enter the customer's audio presets.
Set the clock.
