Component Location Index

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Entry Light Control System is on EX and EXL models. For LX model, refer to Safety Indicator System COMPONENT LOCATION INDEX .

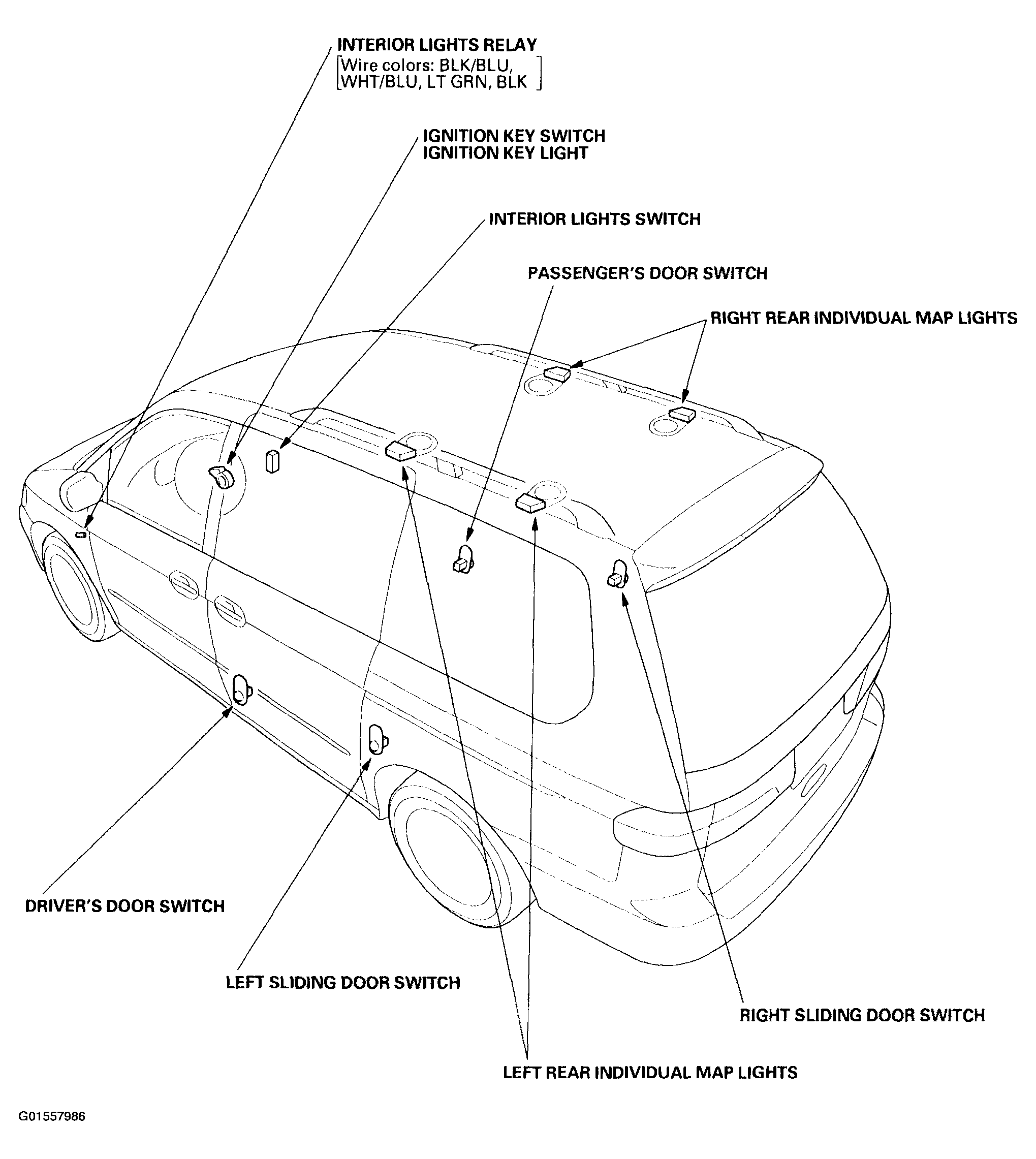

Fig 1: Identifying Entry Lights Control System Components
G01557986Courtesy of AMERICAN HONDA MOTOR CO., INC.
