Headlight Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Headlights become very hot during use; do not touch them or any attaching hardware immediately after they have been turned off.
  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Disconnect the connectors (A) from the headlight.

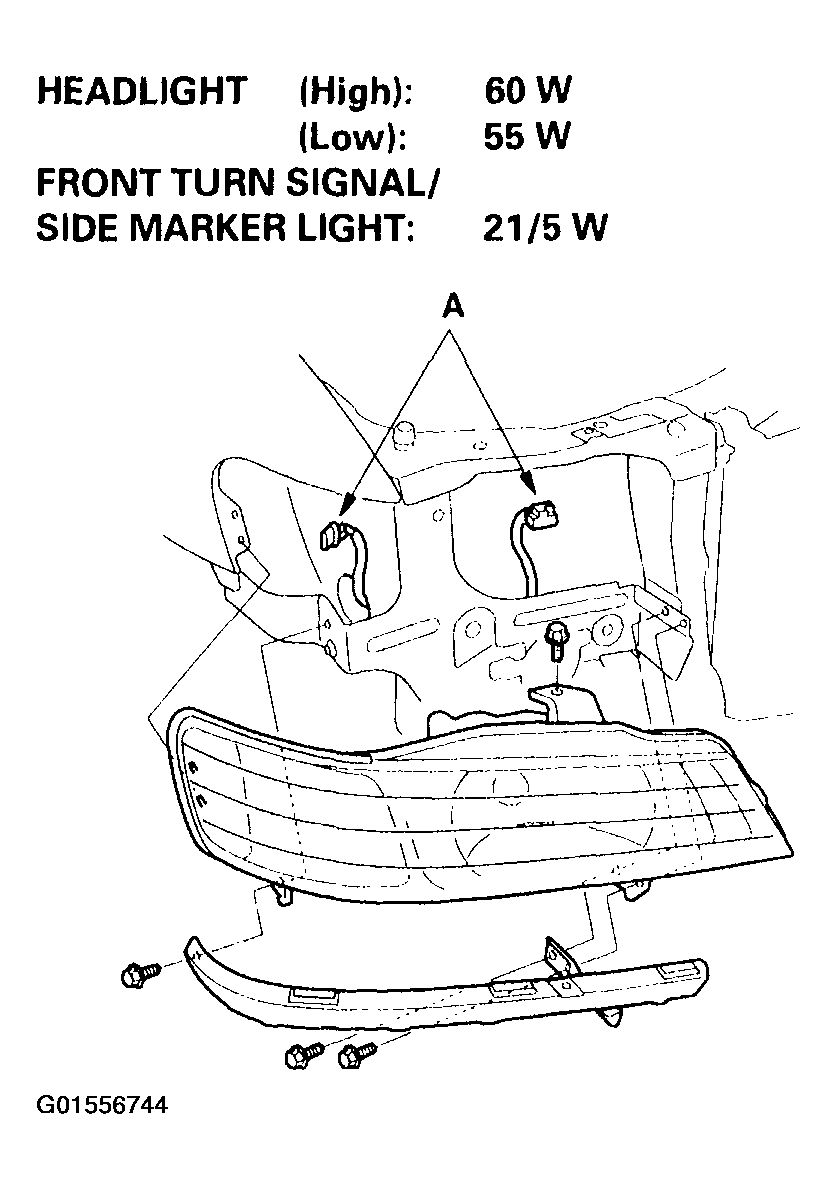

    Fig 1: Disconnecting Connectors From Headlight
    G01556744Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the four mounting bolts, then remove the headlight assembly.
  4. Install the headlight in the reverse order of removal.
  5. After replacement, adjust the headlights to local requirements (see HEADLIGHT ADJUSTMENT  ).
