Daytime Running Lights Control Unit Input Test: Canada

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
  2. Disconnect the 14P connector (A) from the daytime running lights control unit (B).

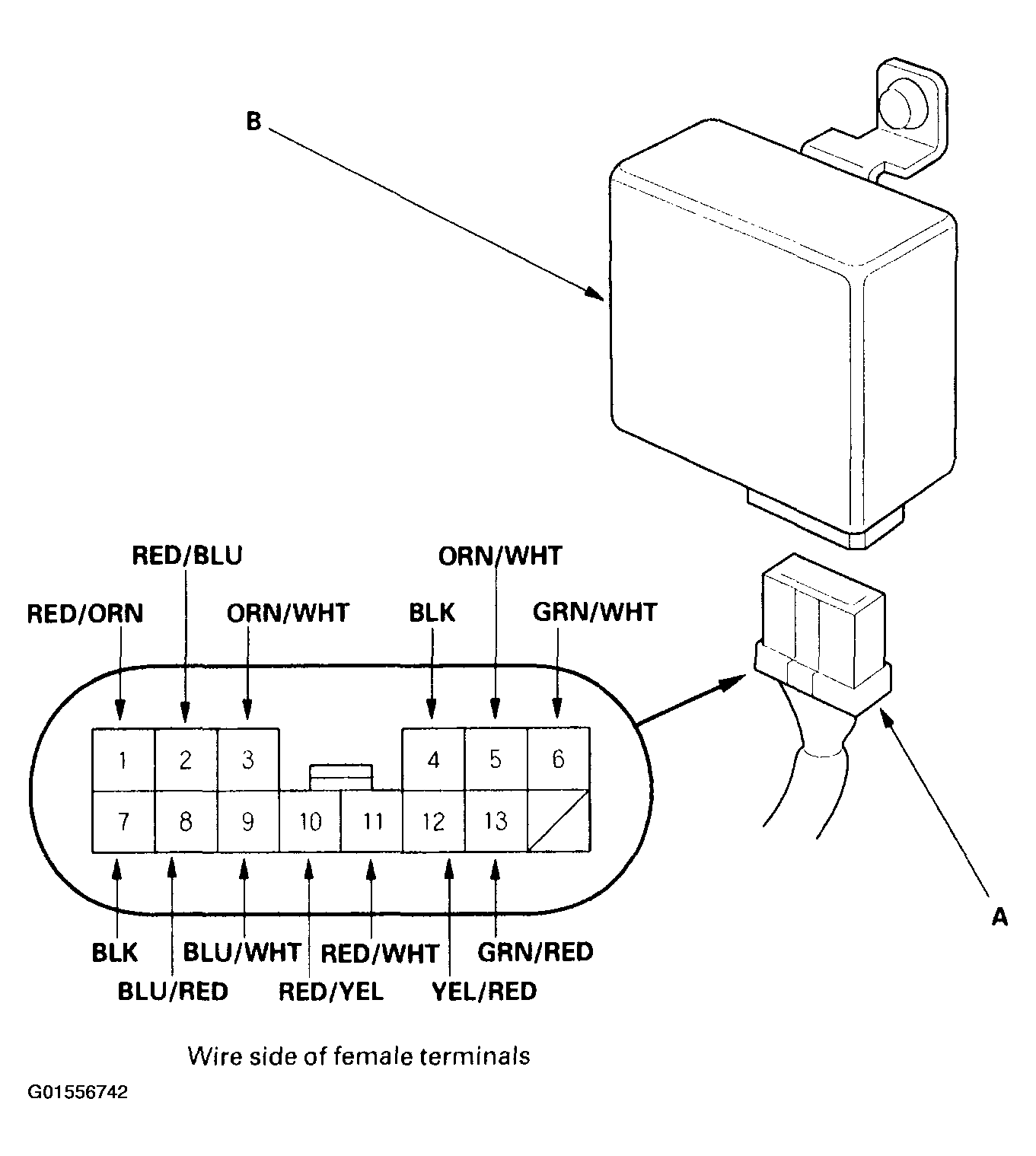

    Fig 1: Disconnecting 14P Connector From Daytime Running Lights Control Unit
    G01556742Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Inspect the all connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, go to step 4.
  4. Make these input tests at the connector.
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, the control unit must be faulty; replace it.

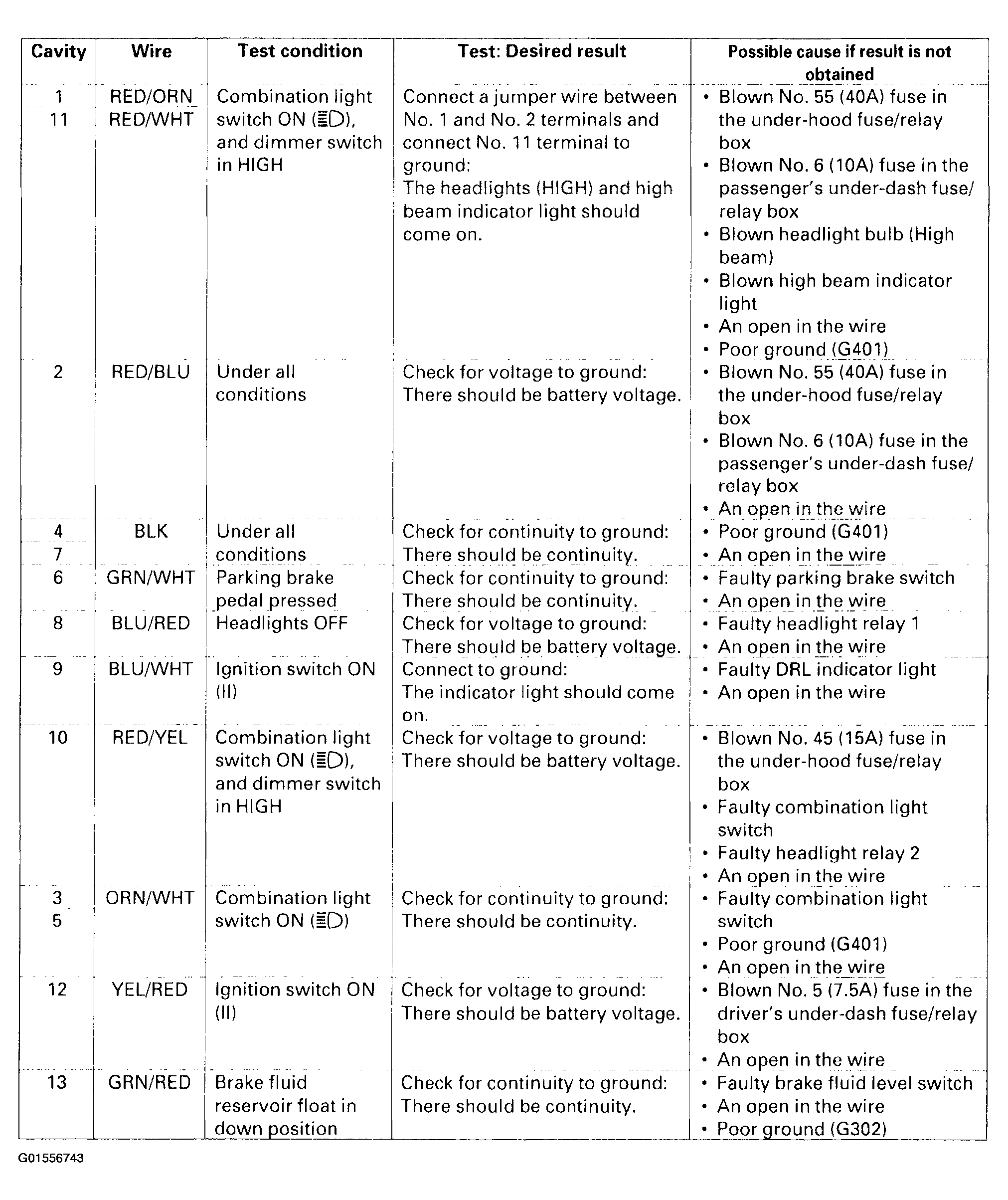

Fig 2: Daytime Running Lights Control Unit Input Tests
G01556743Courtesy of AMERICAN HONDA MOTOR CO., INC.
